Specifications
Brand Name :
JIGUO
Model Number :
970
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
$50000~$60000/1 Set
Supply Ability :
1~50SET
Delivery Time :
45days
Packaging Details :
Wrap with plastics film. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.
Name :
Paper Cup Printing Cutting Machine
Type :
Roll Die Cutting Machine
Max cutting area :
940mmx610mm
Production capacity :
100-200times/min
Power :
16KW
Weight :
8T
Overall dimension :
6000x2200x1800mm
Warranty :
1 Year
Computerized :
Yes
Application :
Cigarette Boxes,Jigsaw Puzzle,Wine Boxes,Plastic Boxes,Hangtags,Paper Boxes,Corrugated Boxes,Adhensive Stickers
Description

JIGUO High Quality Paper Cup Printing Cutting Machine Roll Die Cutting Machine

Paper Cup Printing Cutting Machine Introduction

This series automatic web die-cutting machine based on international advanced technology, has a high stability, high safety performance, high precision of the finished product, it’s widely used in printing, packaging and paper products industries. It adopts micro-computer, human-computer control interface, servo positioning, alternating current frequency converter, automatic counting, manual pneumatic lock plate, photoelectric correcting deviation system, electromagnetic cluth, centralized oil lubrication, overload protection and distinctive gearing. So it guarantees smooth operations of returning paper and feeding paper, precise positioning and orderly withdrawing. All the key parts and controls of the machine are imported. Such installation can realize the machine in steady pressure, precise positioning, smooth moving, safety and reliability.

940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

Products Description​ Of Paper Cup Printing Cutting Machine

PARAMETER
Model 970

Max cutting area

 940X610(mm)

Cutting precision

±0.20mm

Paper gram weight

120-400g/㎡

Production capacity

100-200times/min

Air pressure requirement

0.5Mpa

Air pressure consumption

0.25m³/min

Max cutting pressure

300T

Weight

8T

Max roller diameter

1600mm

Total power

16KW

Dimension

6000x2200x1800mm

Local Details Of Paper Cup Printing Cutting Machine

940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

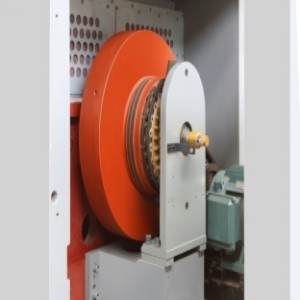

1. The die-cutting force is provided by a 7.5KW inverter motor driver. It is not only power-saving, but also can realize the stepless speed adjustment, especially when coordinate with the extra large flywheel, which make the die-cutting force strong and steady, and the electricity can be further reduced.

Pneumatic clutch brake: through adjust the air pressure to control the driving torque, low noise and high brake performance. The machine will shut down automatically if overload happened, response sensitive and fast.
940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

2. It can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures. Simply set the feed length through the micro-computer controller to die-cut the products without words and figures.
940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

3. Correction Unit This device is controlled by Motor, which can fix and adjust the paper in a correct position. (left o right)

Application Of Paper Cup Printing Cutting Machine

940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

Payment & Delivery Of Paper Cup Printing Cutting Machine

940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine

940mmx610mm Paper Roll Cutting Machine CE Roll Die Cutting Machine
