Specifications
Brand Name :
JIGUO
Model Number :
MY-1500Q
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
$100,000 to $800,000/1 Set
Payment Terms :
L/C, T/T
Supply Ability :
30 set
Delivery Time :
45 days
Packaging Details :
Wrap film or box
Weight :
22T
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Field installation
Dimension(l*w*h) :
7600*5100*2260mm
Type :
Die-cutting Machine,Paper Cutting Machine
Computerized :
Yes
Power(w) :
25KW
Name :
Die cutting machine
Description

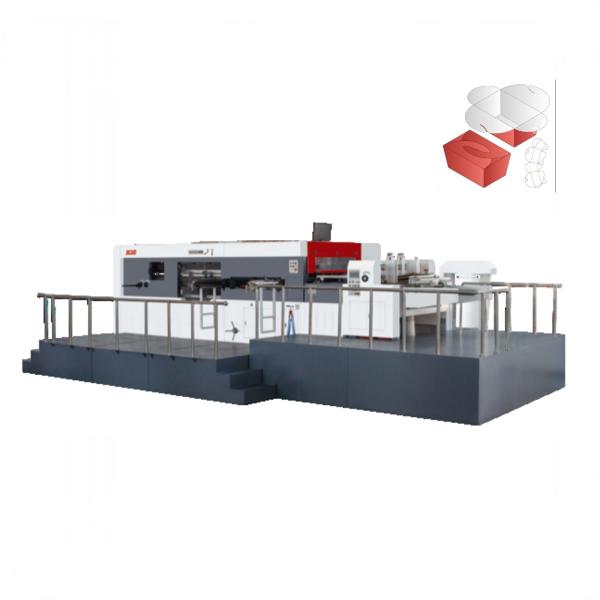

MY-1500Q Carton Box Lead Edge Feeding Automatic Die Cutting & Creasing Machine

Products Description​

PARAMETER
Model MY-1500Q
Max. sheet size 1500X1105(mm)
Min. sheet size 500X465(mm)
Max. die cutting size 1480X1090(mm)
Max.cutting speed 5500s/h
Sheet Thickness ≤10mm
Max.pressure 400T
Total power 25kw
Net weight 22T
Overall dimension 7600X5100X2260mm
Air requirements 0.8Mpa,>0.36m³/min

Driving Part

* The intermittent box drive adopts Taiwan's professional ternary cam indexing mechanism,

which makes the transmission noise smaller, the drive is more stable, and the maintenance

and replacement is more convenient

* The gripper body is made of high quality hard aluminum alloy profile, the surface is anodized,

the rigidity is strong, the material is light, the inertia is small, and the paper can be accurately

transferred in high speed operation

* The main chain adopts the original British RENOLD/Germany IWIS, which has good

anti-stretching effect. The PLC can control the centralized chain oil supply system to

complete the lubrication of the chain as needed

* Install a torque limiter between the intermittent mechanism and the main drive shaft.

When the machine is overloaded, it will automatically stop the protection to reduce the

damage to the machine

Carton Box Automatic Die Cutting Machine 1500X1105mm Lead Edge Feeding Creasing Machine

Carton Box Automatic Die Cutting Machine 1500X1105mm Lead Edge Feeding Creasing Machine

Carton Box Automatic Die Cutting Machine 1500X1105mm Lead Edge Feeding Creasing Machine

Carton Box Automatic Die Cutting Machine 1500X1105mm Lead Edge Feeding Creasing Machine

Carton Box Automatic Die Cutting Machine 1500X1105mm Lead Edge Feeding Creasing Machine

Carton Box Automatic Die Cutting Machine 1500X1105mm Lead Edge Feeding Creasing Machine

FAQ

1. Q: Are you trading company or manufacturer?

A: We are manufacturer, and also provide the business solution to all the friends.

2. Q: What is your delivery time ?

A: Normal delivery time is 30-55working days beside less stock model after received your deposit .

3. Q: Can you help us to buy other goods?

A: Sure of that, it is our honor to work for you, and control the goods quality.

4. Q: How was your machine warranty ?

A: Our all machines has one and half year (18mouthes) guarantee. Beside guarantee we will supply

cost spare parts and free maintenance knowledge .

5. Q: How can you do after sales service ?

A: Beside the quality guarantee, our company also regards the after sales service, using a full

arrange of service to solve the problems of clients. We supply multiple channels of service by 7x24
hours on phone / on site technical support / on site service / preventive maintenance also training
again.

6. Q: What’s your payment terms ?

A: 30% deposit by TT , 70 % balance before shipping by TT or at sight L/C, western union /cash are also

accepted for us .
