Specifications
Brand Name :
SING JIGUO
Model Number :
TMY-1500High embossing hot foil stamping die cutting machine
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 SET
Price :
$65000-$360000
Payment Terms :
L/C, T/T
Supply Ability :
20 sets per month
Delivery Time :
30 days
Packaging Details :
standard
Max.paper size :
1500*1100mm
Max.stamping range :
1450*1060mm
Max.running speed :
5000s/h
Max.stamping speed :
45000s/h
Stamping tempreture :
0~200
Die Cutting Accurate :
±0.1mm
Heating plate zone power :
44KW
Max foil width :
1450mm
Min foil width :
25mm
Overall dimension :
9430*5300*2700mm
Description

Product Description:

This is a key equipment for the production of paper boxes, high-standard paper products, etc. It is particularly suitable for the automatic die-cutting and waste removal of complex paper boxes and cigarette boxes, making paper box production more rational.

Post-Printing Packaging Die Cutting Equipment Wine Cigarette Box Hot Stamping And Die-Cutting Machine

Applications:

This machine is mainly used for die-cutting, creasing, cold embossing, hot stamping and other processes of cartons and labels in the packaging industry. Especially for various high-end printed products such as cigarette boxes, wine boxes, gift boxes, electrical appliance boxes, cosmetics boxes, etc., they can all be die-cut, creasing, cold embossing, and hot stamping on this machine to make the printed products have a three-dimensional and exquisite feeling.

Technical Information:

Model TMY-1500High
Max. Paper Size 1500×1100mm
Min. Paper Size 500×420mm
Max. Cutting Size 1480×1090mm
Max. Pressure 600T
Sheet Thickness

Cardboard:0.1~3mm

Corrugated Board:<4mm
Max. Die Cutting Speed 5000sheets/h
Max. Stamping Speed 4500sheets/h
Die-Cutting Precision ±0.1mm
Max.foil width 1450mm
Min.foil width 25mm
Total power 100KW
Weight 30T
Air requirement 0.8Mpa,＞0.36m³/min
Overall Dimension 9430×5300×2700mm

Partial Introduction:

Post-Printing Packaging Die Cutting Equipment Wine Cigarette Box Hot Stamping And Die-Cutting Machine

■ The professional designed feeder is made of lightweight aluminum alloy with anode treatment on the surface.The forward,backward,high and low positions can be adjusted according to the stock:for smooth feeding of thin paper,arge gram cardboard,corrugated paper,etc.

■ Horizontal paper parting and blowing device.

■ The main and secondary stacking paper table does not stop alternately, and feeder does not stop operation.

■The pre-stack device is equipped with rails so that the operator can accurately and easily load the stack into the feeder.

■ Pneumatic lifting device for feeding frame.
Post-Printing Packaging Die Cutting Equipment Wine Cigarette Box Hot Stamping And Die-Cutting Machine

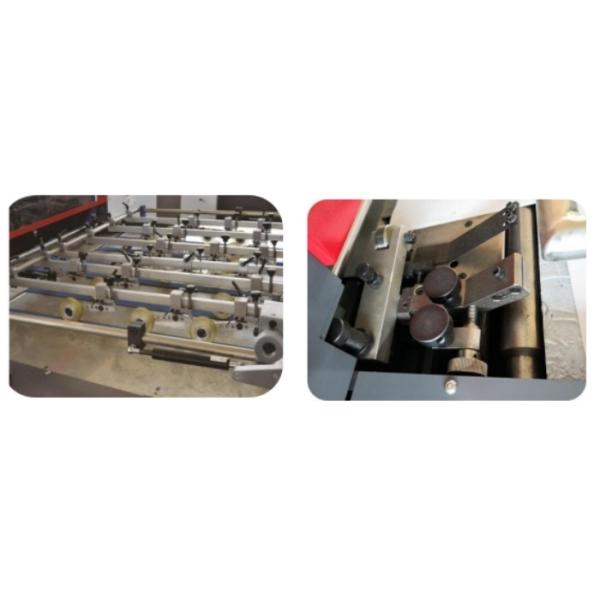

■ The paper conveying part is made of stainless steel plate to prevent rust and
provide stable and correct paper conveying.

■ Paper is positioned by a pushing unit and a pulling unit which can be shifted
conveniently for different specifications of paper.

■ Side gauge, front gauge paper photoelectric detection.
Post-Printing Packaging Die Cutting Equipment Wine Cigarette Box Hot Stamping And Die-Cutting Machine The German machine usually adopts the gear type synchronous belt drive, and the Japanese machine usually uses the main chain drive. This machine design adopts the advanced technology of the tooth synchronized with the high grade German model. Compare with chain design, performance has been greatly improved. Noise reduction is the essential function of the high end type, with the gear type synchronous belt drive, stable,safe,no noise and long life. Avoids the defects that are easy to vibrate and stretch when the chain is used.

Workshop

Post-Printing Packaging Die Cutting Equipment Wine Cigarette Box Hot Stamping And Die-Cutting Machine

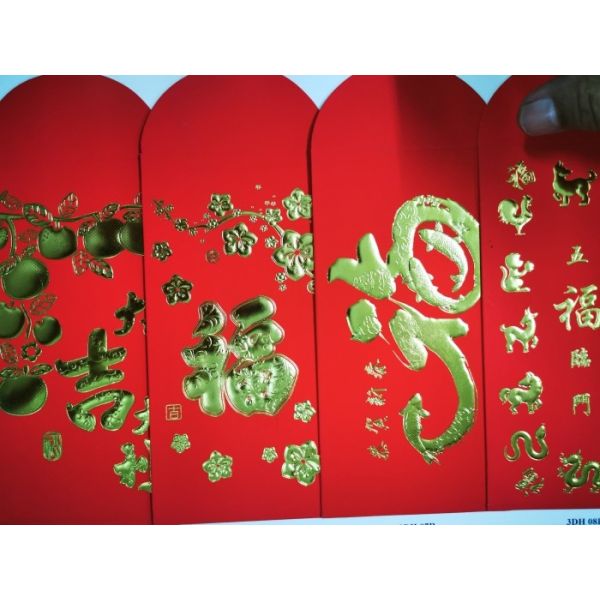

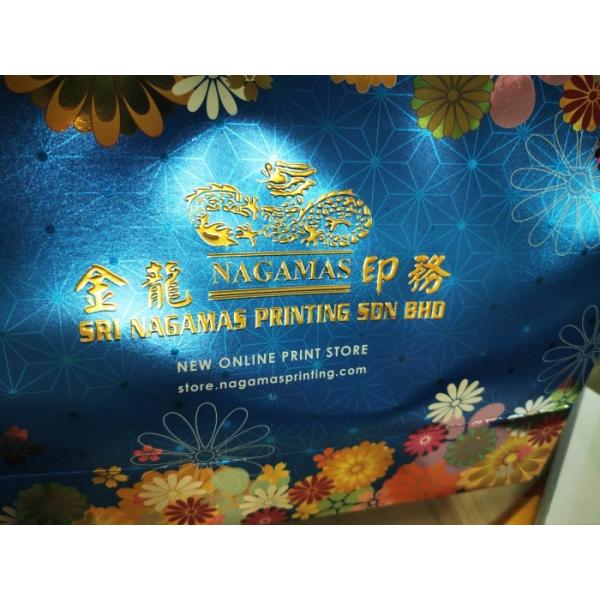

products

Post-Printing Packaging Die Cutting Equipment Wine Cigarette Box Hot Stamping And Die-Cutting MachinePost-Printing Packaging Die Cutting Equipment Wine Cigarette Box Hot Stamping And Die-Cutting MachinePost-Printing Packaging Die Cutting Equipment Wine Cigarette Box Hot Stamping And Die-Cutting Machine

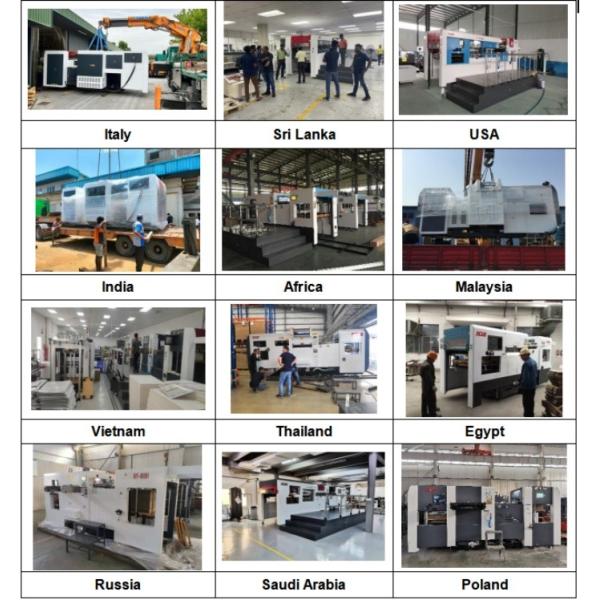

Part of Customer Projects

Post-Printing Packaging Die Cutting Equipment Wine Cigarette Box Hot Stamping And Die-Cutting Machine

Exhibition:

Post-Printing Packaging Die Cutting Equipment Wine Cigarette Box Hot Stamping And Die-Cutting Machine
