Product Description:

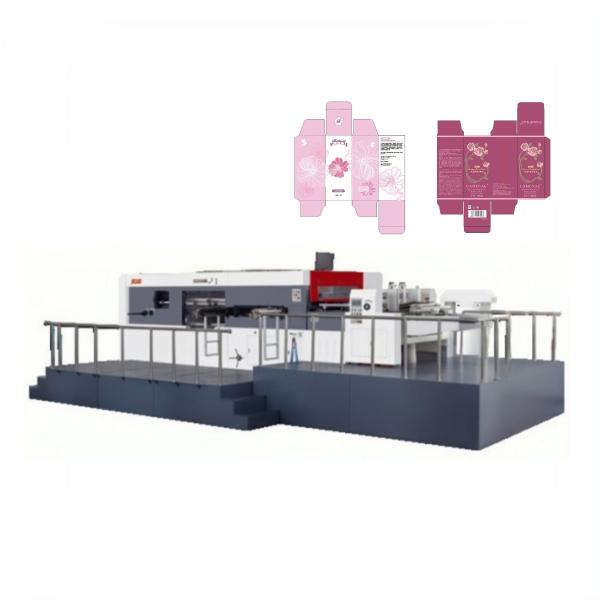

■ MYP-1320Q fully automatic die-cutting and waste stripping machine is a key equipment for post-printing processing such as die-cutting, creasing, embossing, etc. The electrical components and transmission components adopt internationally renowned brands to ensure die-cutting accuracy and operational reliability. The human-machine interface can monitor the machine's operating status in real time. It adopts unique transmission devices such as high-precision indexing mechanism, pneumatic locking, pneumatic clutch, overload protection, and automatic pressure relief to ensure the high-speed and stable operation of the machine. This machine is equipped with practical and reliable mechanisms such as pre-stacking device, secondary conveying mechanism, and manual sampling to ensure the excellent performance of the machine.

■ Stable, durable, safe, humanized design, and easy operation are the main concepts of the development of this model. It adopts the European CE safety certification standard, has made major innovations in the frame and overall structure, and has carefully improved the safety protection, making the machine performance more stable and the operation safer and more convenient. This machine is mainly used for die-cutting, creasing, cold embossing and waste removal of cartons and labels in the packaging industry. Especially for various high-end printed products such as cigarette boxes, wine boxes, gift boxes, electrical appliance boxes, cosmetic boxes, etc., they can be die-cut, creasing and cold embossed on this machine to make the printed products have a three-dimensional and exquisite feeling.

Technical Information:

Applications:

The Die-Cut Stripper is suitable for a variety of product applications and scenarios, including:

Corrugated packaging manufacturers

Printing companies

Paper product manufacturers

The machine is able to handle a maximum cutting size of 1320*960mm and a maximum pressure of 380 tons, ensuring that even the toughest materials can be accurately cut. The maximum sheet size is 1320*960mm, providing ample space for large projects.

One of the main features of the machine is the die-cutting accuracy of ±0.18mm, ensuring that every cut is accurate and correct. In addition, the machine has a maximum delivery pile of 1500mm, allowing for more production in a single run.

The Die-Cut Stripper also has a maximum stripping speed of 5000 sheets/hour, making it ideal for large-scale production. The gripper edge is only 8mm, which can tightly grasp the material to prevent slipping or shifting during the cutting process.

Partial Introduction:

■ High-precision front edge paper feeding device can adapt to different paper requirements. Frequency conversion control air volume adjustment, high-power fan, suction area can be adjusted according to paper size. ■ Front, back, light and low positions can be adjusted according to paper size, and thinner paper, heavy cardboard, corrugated paper, etc. can be smoothly fed. ■ Maximum speed can reach 6000 sheets/hour, and die-cutting accuracy is within ±0.18mm.

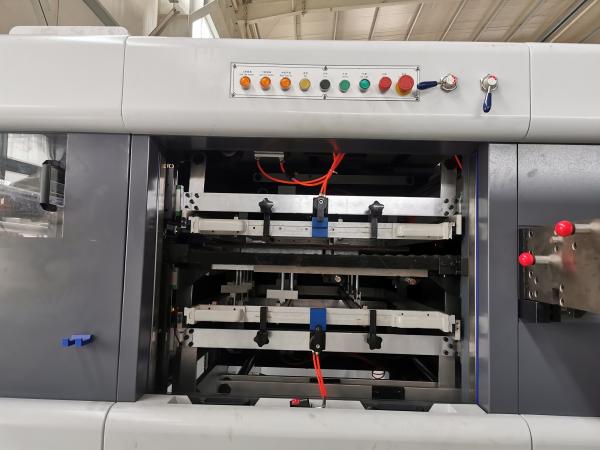

■ A one-time waste removal system is used to remove all excess paper scraps and waste materials (except for the clamping corners) during die cutting. ■ The three-link transmission system of the upper, lower and middle die cams is stable, coordinated, accurate, powerful, and has fast loading, unloading and sizing speeds. ■ The waste removal rack adopts pneumatic lifting and is equipped with a centering device, which is easy to operate and shortens the preparation time. ■ The pre-installed platform is equipped with a centering device to facilitate the installation of the waste removal plate. ■ The waste removal process is reasonably designed to eliminate the defects of slow speed and plate running during waste removal.

7 gripper bars made of cutting edge latest technology running extremely smoothly, thanks to the unique design of large motion angle eccentric worm gear drive system.

Company Profile:

Sino Jiguo Machinery Co., Ltd. (Tangshan JIGUO Printing Machinery Co., LTD.) , is a professional manufacturer of Roll Paper Sheet Cutter Machine, Automatic Die Cutting And Creasing Machine, Automatic Hot embossing & Foil Stamping & Die Cutting Machine, Automatic flute laminating machine, Automatic window patching machine, Automatic Film Laminating Machine, Automatic Folder Gluer Machine and other post press paper machines company.

Classic models MY(P)-800H/1060H/1080/1320/1500/1680 and other fully automatic die-cutting and creasing machines (with waste removal devices). TMY-800H/1060H/1320H/1500H fully automatic die-cutting and hot stamping machines have been popular in the market for more than 20 years.

Since it was put on the market in 1996, the product quality is stable, the price is reasonable, and the quality and reputation have been unanimously praised. The company has become an internationally renowned enterprise, and its products are sold all over the country and exported to more than 20 countries including the United States, South Korea, Russia, India, Thailand, Brazil, Egypt, Greece, Poland, Italy, and the United Kingdom. Jiguo die-cutting series products are the star products of our company. We are constantly pursuing our dreams, and with excellent quality, preferential prices, and high-quality services, we work closely with friends at home and abroad to achieve mutual benefit and create a better tomorrow.

Die cutting machine workshop:

The flatbed die-cutting machine production workshop is a modern production environment integrating mechatronics. The entire production workshop adopts modern management methods and advanced control systems to achieve efficient and precise production operations to meet the market demand for high-quality packaging materials.

Shipping:

Efficient and standardized delivery of flatbed die-cutting machines to meet the needs of foreign customers for on-time delivery.

Exhibition:

Sino Jiguo Machinery Co., Ltd. (Tangshan JIGUO Printing Machinery Co., LTD.) actively participates in domestic and foreign exhibitions to allow domestic and foreign customers to have a more comprehensive understanding of JIGUO die-cutting machines

FAQ:

Q1: Are you a manufacturer or a trading company?
A: We have our own factory in Tangshan, Hebei Province.

Q2. What is the machine warranty?
A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?
A: Normally about 20-30 days.

Q4. What is the delivery time?
A: 35-50days after deposit.

Q5. Can your company handle shipping for customers?
A: Yes, just give us destination sea port or container yard.
