Product Description:

The Film Laminator Machine is a cutting-edge solution designed to enhance the efficiency and productivity of your lamination processes. With a remarkable working speed of 80-100m/min, this machine ensures quick turnaround times and seamless operation in fast-paced production environments.

Equipped with a powerful motor that consumes 25-30kw/h of energy, the Film Laminator Machine delivers consistent and reliable performance while keeping energy consumption in check. This balance of power and efficiency makes it an ideal choice for businesses looking to optimize their lamination operations.

One of the standout features of this machine is its impressive height of stacker pile, measuring at 1060mm. This ample stacking height allows for continuous operation without frequent interruptions for unloading, enabling uninterrupted workflow and increased productivity.

When it comes to versatility, the Film Laminator Machine shines with its ability to handle a wide range of sheet sizes. With a minimum sheet size of 350*295mm, this machine is capable of processing various dimensions, providing flexibility for different lamination needs.

Moreover, the height of the feeding pile matches the stacker pile at 1060mm, ensuring a smooth and seamless transition of sheets through the lamination process. This synchronized feeding and stacking mechanism contributes to the overall efficiency and reliability of the machine.

Designed with precision and durability in mind, the Film Laminator Machine boasts a robust construction that can withstand the rigors of continuous operation. The dimension of the machine is optimized for space efficiency while maintaining stability and sturdiness, making it a reliable asset in any production environment.

In conclusion, the Film Laminator Machine offers a winning combination of speed, power, and versatility, making it a valuable investment for businesses seeking to streamline their lamination operations. With its advanced features and reliable performance, this machine is sure to enhance productivity and deliver exceptional results for your lamination needs.

Features:

1.Automatic Feeder: Adopts offset feeder with advanced side lay, which fastest can feed around 15000 sheet/h. Non-stop and pre-stack feeding can improve work efficiency.

2.Overlapping Regulator: Adopts Servo system to control the overlapping that guarantee accurate and stable, and make sure the overlap error within 2mm.

3. Drying and Heating System: Bulk 800mm diameter drying roll with Teflon coating, that could bring the highest glue drying effect, large heating roll by electromagnetic heating plus oil heating, guarantee the heating efficiency and make sure laminating quality when run in high speed.

4.Main Machine Body: Thicken machine wall (25mm thickness) enhances stability and for long time service life.

5. Three rows chain Driving System: Special structure design in minimum transmission line, adopts three rows chain to drive the laminating unit to guarantee the high laminating speed with low noise.

6. Pneumatic Pressure System: fully pneumatic system to control the laminating pressure, the pressure would highly uniform and easy to adjust.

7.Man-Machine Interface System: Advanced 10inch color screen with PLC system makes the operation easy and convenient.

9. Anti-Curvature Device: Avoid paper curvature and make the paper smooth, especially for thin paper.

10. Corrugated Delivery: Better and easier for collecting paper.

11 Car Body: Whole machine cover adopts car body, glossy and wear-resisting.

12 Automatic Stacker: Fully automatic with sensor to rise and down the paper pile, heighten structure that can load paper pile height in 1060mm, side and front tidy devices to make sure paper pile collect well.

Technical Parameters:

Applications:

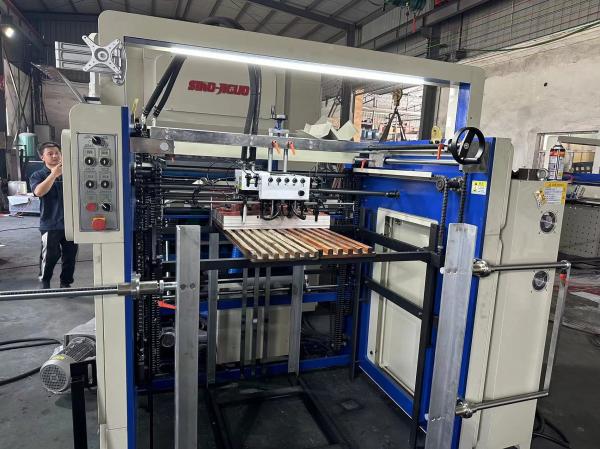

1. Automatic Feeder

We adopt offset feeder head (max speed 15000sheet/ hour), that makes the sheet feed more stable and smoother. The feeder is non-stop type with pre-stack guide device, which can keep the machine running when run out the paper pile. Taiwan vacuum pump guarantee the stable feeding.

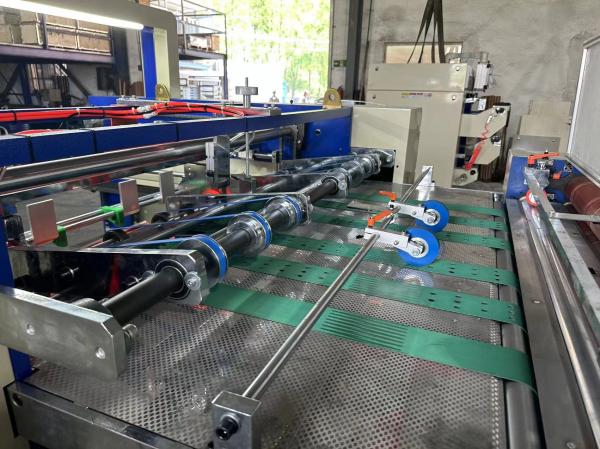

2. Sheet Delivery Platform

Servo system to control the side lay and front lay connect with feeder in high precision, that guarantee the overlapping error within 2mm.

Moveable gear adjustment sheet deliver table that convenient for different sheet size

3. Laminating Unit

Heating roller by electromagnetic heating plus oil heating, double heating systems guarantee the prompt pre-heating and make the temperature to 180℃ and can keep constant temperature in high speed laminating.

Pressure rubber roller controlled by fully pneumatic system, the pressure would highly uniform and easy to adjust without bubbles,spots or wrinkle.

4. Glue Coating unit

High precision processing double metal rolls glue coating system to support low glue consumption (2-4g/m2)

Adjustable glue coating quantity to match different materials and running speed.

Outside moving glue coating unit: the glue coating rolls are moved outside of machine (drying unit), so the glue will not dry on rolls because of hot air.

Customization:

Product Customization Services:

- Brand Name: SINO JIGUO

- Model Number: FMZ-1080AN

- Place of Origin: CHINA

- Certification: CE

- Minimum Order Quantity: 1 SET

- Machine weight: 8500kg

- Working speed: 80-100m/min

- Height of stacker pile: 1060mm

- Height of feeding pile: 1060mm

- Working power: 25-30kw/h

Support and Services:

Our Product Technical Support team is dedicated to providing assistance with any issues you may encounter with your Film Laminator Machine. We offer troubleshooting services to help diagnose and resolve any technical problems that may arise.

In addition, our team also provides maintenance services to ensure that your Film Laminator Machine is running efficiently and effectively. Regular maintenance can help extend the lifespan of your machine and prevent potential issues from occurring.

Should you require any technical support or services for your Film Laminator Machine, please don't hesitate to reach out to our team for assistance.

Packing and Shipping:

Product Packaging:

The Film Laminator Machine is carefully packaged in a sturdy cardboard box to ensure its safe delivery. The machine is securely wrapped in protective foam and plastic to prevent any damage during transit.

Shipping:

Once your order is placed, the Film Laminator Machine will be shipped within 1-2 business days. We use a reliable courier service to deliver your package directly to your doorstep. You will receive a tracking number to monitor the status of your delivery.

FAQ:

Q: What is the brand name of the Film Laminator Machine?

A: The brand name of the Film Laminator Machine is SINO JIGUO.

Q: What is the model number of the Film Laminator Machine?

A: The model number of the Film Laminator Machine is FMZ-1080AN.

Q: Where is the Film Laminator Machine manufactured?

A: The Film Laminator Machine is manufactured in CHINA.

Q: Does the Film Laminator Machine have any certification?

A: Yes, the Film Laminator Machine is CE certified.

Q: What is the minimum order quantity for the Film Laminator Machine?

A: The minimum order quantity for the Film Laminator Machine is 1 SET.
