Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780
Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780
Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780
Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780
Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780
Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780
Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780
Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780
Specifications
Brand Name :
Mirote
Model Number :
HY408-C
Place of Origin :
Ningbo, Zhejiang
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T
Delivery Time :
20-35 WORK DAYS
Item :
Car Relay
Rated Load :
40/30A 14VDC
Max Switching Current :
40A
Max Switching Voltage :
30VDC
Max Switching Power :
560W
Accessory Type :
without LED
Pack Form :
Sealed
Contact Form :
1A 1B 1C 2A
Description

Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780

1. Parameter

Contact Material Silver Alloy
Contact Resistance 100MΩ Max
Operate Time 10msec Max
Release Time 5msec Max
Insulation Resistance 100MΩ Min (DC500V)
Dielectric Strength Between Coil & Contacts AC500V, 50/60Hz 1min
Between Open Contacts AC500V, 50/60Hz 1min
Humidity Functional 10~55Hz, double strike 1.5mm
Destructive 10~55Hz, double strike 1.5mm
Shock Resistance Functional 10G min
Destructive 100G min
Life Electrical Life 10000000 times
Mechanical Life 100000 times
Temperature Range -40 ℃~ 105 ℃
Weight about 41g

Coil Data (at 20℃)

Nominal Voltage VDC Rated Current (mA) Coil Resistance Operate Voltage Release Voltage Max Permissible Voltage Coil Power
12 150 80Ω Rated voltage of 70% Rated voltage of 10% Rated voltage of 150% 1.8W
24 75 320Ω

2. Product Details

Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780

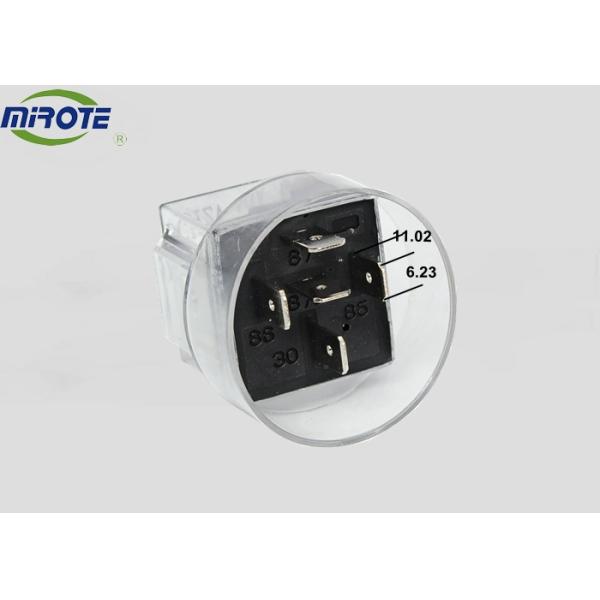

3. Diagram
Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780

Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780Fan Relay 12V 100A 5 Pin European Peugeot 405 Pride relay 9458628780

4. Application

ABS Control Syetem blower

Electric steering system power management

Heated front window fuel pump

Wiper control system valve

Light main switch/power relay

Car alarm Engine control system

5. Package

Customer can do their own customized box and package.

6. Guarantee

For all the products we supply, we offer 1 year guarantee. And send the replacement freely.
