High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0
High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0
High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0
High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0
High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0
High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0
Specifications
Brand Name :
MIROTE
Model Number :
HY410-C
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiation
Payment Terms :
L/C, T/T, D/P
Supply Ability :
200000pcs/week
Delivery Time :
15-30days
Packaging Details :
25pcs/box 500pcs/ctn
Cover :
black
Wire :
copper
Pins :
5 copper pins
Contact :
copper
Braided :
no braided wire
Waterproof :
sealed
led light :
no light
OE :
10048706-90710A
Description

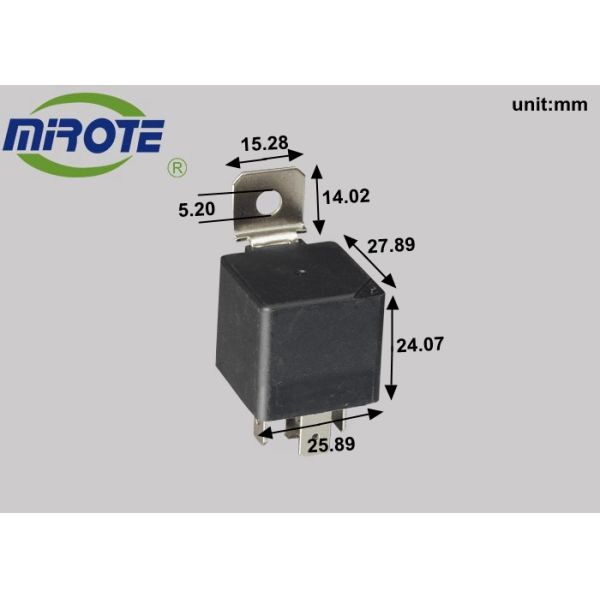

Black Cover High Amp Auto Electrical Relay 12v 5 Pines With Metal Sheet

1. Product Detail
High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0

2. Circuit
The higher amperage current flow through a relay flows through terminals 30 and 87 and often 87a. Terminal 30 is usually where power is applied. When the relay is at rest without power and ground to the coil, the armature inside the relay electrically connects terminals 30 and 87a if the relay has five terminals. When there is power at terminal 86 and a ground at terminal 85 of the relay, a magnetic field is created in the coil winding, which draws the armature of the relay toward the coil. The armature, when energized electrically, connects terminals 30 and 87.

The maximum current through the relay is determined by the resistance of the circuit and relays are designed to safely handle the designed current flow .

High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0

3.Parameter

Characteristics
Contact Form
1A 1B 1C 2A
Contact material
Silver Alloy
Current type
40A type or 60A type
Coil voltage
6V ~ 24V
Power consumption
1.7W
Initial insulation resistance
500MΩ
Electrical life
100000 ops
Mechanical life
10000000 ops
Dielectric strength
500VAC
Ambient temperature
-40°C~+85°C
Storage Temperature
-40°C~+85°C
Termination
PCB, QC
Construction
Waterproof or Dust cover
Parallel resistor
with resistor or with diode
Bracket
None bracket , Plastic bracket, Metal bracket
Unit Weight
35g


4.Excellent production equipment, more than 100,000 pieces per day, super fast delivery speed
High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0
5.Twenty exhibitions worldwide each year
High Amp Auto Electrical Relay 12v 5 Pines 8-97063441-1 8-97063441-0

8. Package
Nowadays, package is important, we have various packing methods for your selection.

You can also customize your package, as long as the quantity is considerable.

9. Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.10000times life time .

10. Delivery time and Shipping
Generally, it will take 15 to 30 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
