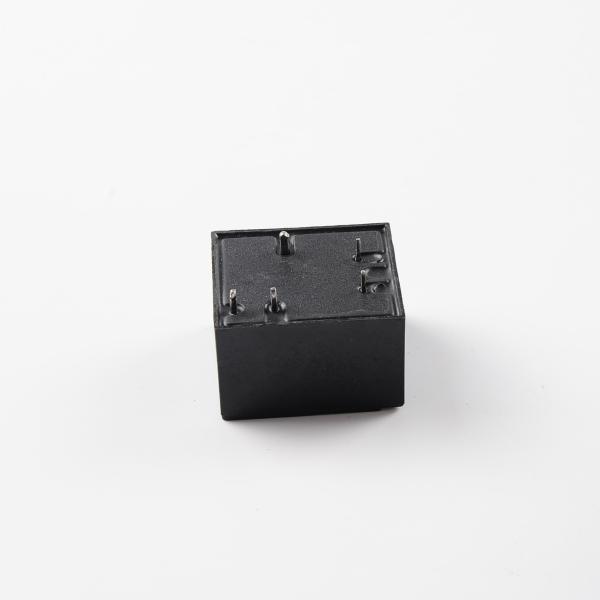

Coil Control Electrical 35A/45A Automotive Power Relay 250VAC 12VDC JQX-F(T97)
Coil Control Electrical 35A/45A Automotive Power Relay 250VAC 12VDC JQX-F(T97)
Coil Control Electrical 35A/45A Automotive Power Relay 250VAC 12VDC JQX-F(T97)
Coil Control Electrical 35A/45A Automotive Power Relay 250VAC 12VDC JQX-F(T97)
Coil Control Electrical 35A/45A Automotive Power Relay 250VAC 12VDC JQX-F(T97)
Coil Control Electrical 35A/45A Automotive Power Relay 250VAC 12VDC JQX-F(T97)
Coil Control Electrical 35A/45A Automotive Power Relay 250VAC 12VDC JQX-F(T97)
Coil Control Electrical 35A/45A Automotive Power Relay 250VAC 12VDC JQX-F(T97)
Specifications
Brand Name :
Mirote
Model Number :
JQX-F (T97)
Place of Origin :
Ningbo, Zhejiang
MOQ :
100
Price :
Negotiation
Payment Terms :
T/T, , L/C, D/P
Supply Ability :
5000000pcs per month
Delivery Time :
20-35 WORK DAYS
Packaging Details :
1pc/box, 500pcs/CTN
Theory :
Electromagnetic Relay
Rated Voltage :
12VDC
Contact Resistance :
< 100mΩ (1A 6VDC)
Size :
35*32.5*21
Contact Rated :
40A 250VAC/12VDC
Contact Form :
1Z 1H 1D
Contact Material :
Silver Alloy
Action type :
SPDT
Description

1. Coil Control Electrical 35A/45A 250VAC 12VDC Electromagnetic Power Relay JQX-F(T97)

2. Parameter

Product Specification

Contact Contact Form 1H 1D 1Z
Contact Load

NO: 35A 250VAC /12VDC

NO: 40A 250VAC /12VDC
Mechanical/Electrical Life > 105 times / 107 times
Contact Resistance <100mΩ (1A 6VDC)
Contact Material AgSno2
Performance Insulation Resistance ≥1000MΩ(500VDC)
Dielectric Strength Between same pole Contacts > 1500VAC/1min
Between Coil and Contact> 2000VAC/1min
Pull-in/Release Time < 15ms/ 10ms
Coil Rated Coil Power DC 2.0W, AC2.5VA
Coil Voltage DC DC 3V-110V
AC AC 6V-24V

Contact Ratings

Contact Arrangement 1Form 1 (SPST-NO) 1 Form C(SPDT)
Max. Switching Power 7200VA/ 840W 4800VA/560W
Max. Switching Voltage 240VAC/28VDC 240VAC/28VDC
Max. Switching Current 30A 20A
Contact Resistance 50m Ω 50m Ω
Initial Contact Resistance 100m Ω 100m Ω​
Rating Load 30A/240VAC 28VDC 20A/240VAC 28VDC
Contact Material Ag-CdO

Environmental Condition

Temperature Range -45~+85℃
Relative Humidity Up to 98% at + 40℃
Atmospheric Pressure 86~ 106Kpa
Vibration 10~55Hz Dual Amplitude 1.65mm
Shock 98 m/s2(10g)
Weight 40g

Coil Control Electrical 35A/45A Automotive Power Relay 250VAC 12VDC JQX-F(T97)

3. Guarantee

To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.

4. Sample Policy

To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.

5. Terms of payment

T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

6. Delivery time

Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
