JD1912 Car Relay 12V 40A 4 Pin Compatible with Automotive Car Truck
JD1912 Car Relay 12V 40A 4 Pin Compatible with Automotive Car Truck
JD1912 Car Relay 12V 40A 4 Pin Compatible with Automotive Car Truck
JD1912 Car Relay 12V 40A 4 Pin Compatible with Automotive Car Truck
Specifications
Brand Name :
Mirote
Model Number :
1914
Place of Origin :
Ningbo, Zhejiang
MOQ :
1000pcs
Price :
Negotiation
Payment Terms :
T/T, , L/C, D/P
Supply Ability :
5000000pcs per month
Delivery Time :
20-35 WORK DAYS
Packaging Details :
25pcs/box, 500pcs/CTN
Type :
auto relay
OE :
JD1912
Function :
Swith , window control
Voltage :
40amp
Am :
27W x 2
Weight :
130g
Description

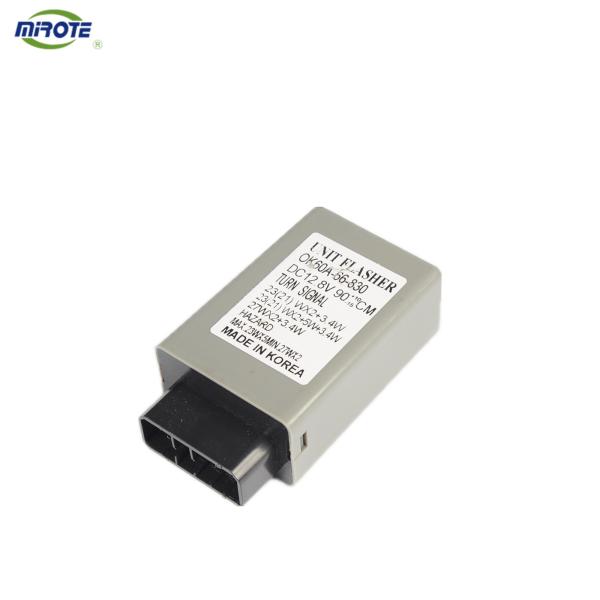

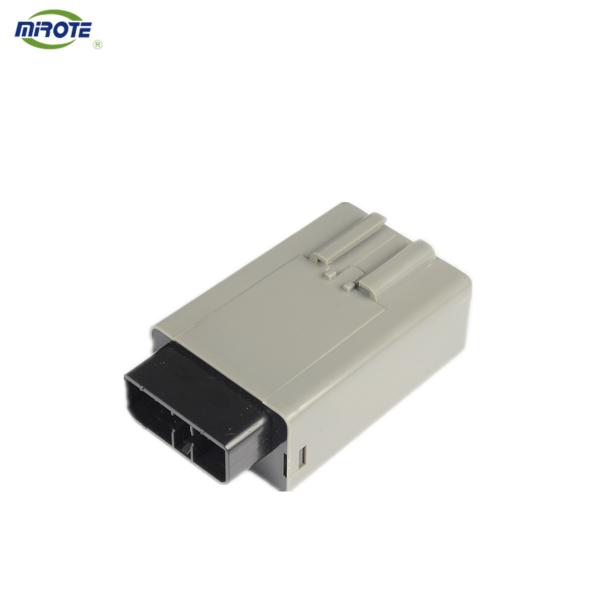

KIA SEDONA Indicator Hazard Warning Flasher Control Module OEM OK60A 66 830A


1. Description
Electrical Flasher 4PINS

JD1912 Car Relay 12V 40A 4 Pin Compatible with Automotive Car Truck

1. Details

  • Professional 4 pin SPST car relay with socket and color-labeled wires harness.
  • The 4-Pin relays are SPST designed (Single Pole Single Throw), for circuit normally closed or normally open.
  • The relay sockets come with 4 different color-labeled wires for loads and accessories convenient wiring.
  • The automotive relay is an electronic control device, usually used in an automatic control circuit. It has the function of automatic adjustment, safety protection, and conversion circuit.
  • Suitable for all automobiles and devices equipped with a 12V DC power source. Greatly used for car lights, Indicator light, fog lamps, starter, wiper, fans, speakers, central locking, alarm, electric windows, etc.



2. Specification

Features
The 4-Pin relays are SPST designed (Single Pole Single Throw), for circuit normally closed or normally open.
The relay sockets come with 4 different color-labeled wires for loads and accessories convenient wiring.
Unique male-female slot on each socket edge, allows you to connect all the relays together on a panel and make the whole installation neat as possible.
The automotive relay is an electronic control device, usually used in an automatic control circuit.
It has the function of automatic adjustment, safety protection, and conversion circuit.
It is in fact an "automatic switch" that controls a large current through a small current.
Suitable for all automobiles and devices equipped with a 12V DC power source. Greatly used for car lights, Indicator light, fog lamps, starter, wiper, fans, speakers, central locking, alarm, electric windows, etc.

Relay Technical Specification

Relay load40A/12VDC
Contact Resistance≤ 100MΩ
Contact MaterialAg Alloy
Life Expectancy Electrical100,000 Operation
Life Expectancy Mechanical10,000,000 Operationss (at 300 Operations/min)
Coil power1.8W
Operate Time≤15ms
Release Time≤10ms
Initial withstand voltage of Contact and Contact1000VAC/1min
Initial withstand voltage of Contact and Coil1500VAC/1min
Insulation Resistance100MΩ/( 500VDC)
Temperature Range-55°C ~+70°C
Humidity Range35%-80%
Atmospheric Pressure86-106KPa
Weight30g

3. Guarantee
To make you rest assured about the after-sale,we would like to provide one-year quality guarantee.

4. Sample Policy
To enhance more understanding of each other and our products,we’d like to provide the sample free to you for testing.

5. Terms of payment
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

6. Delivery time
Generally, it will take 20 to 45 work days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
We are the manufacturer of auto parts for more than 10 years, definitely we can provide you with good quality, good price and good service.
