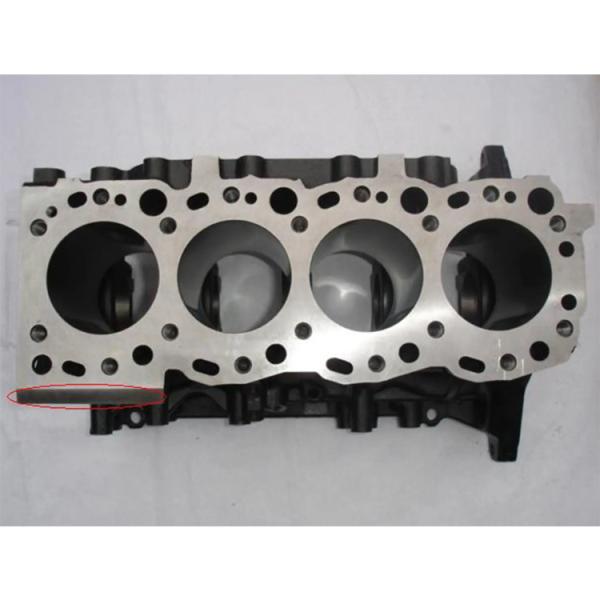

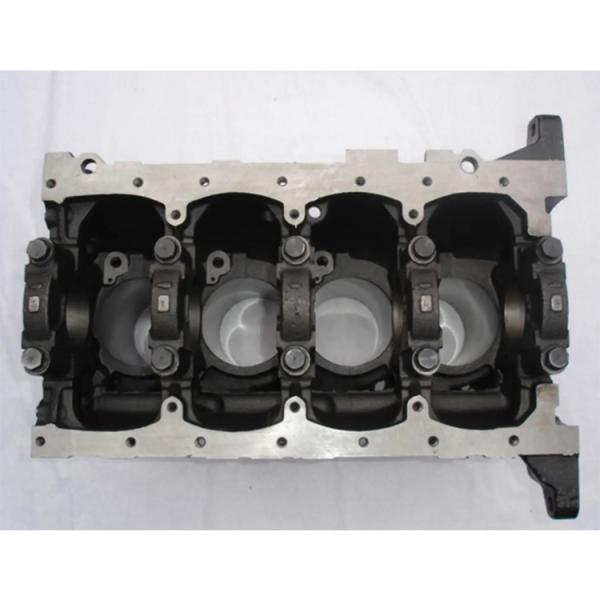

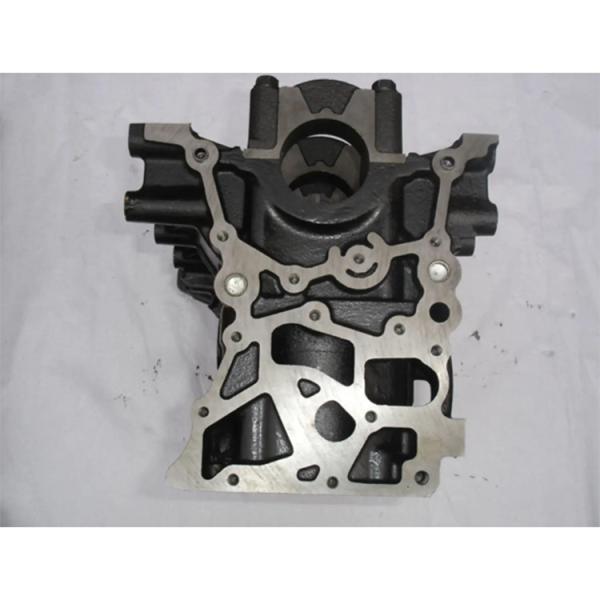

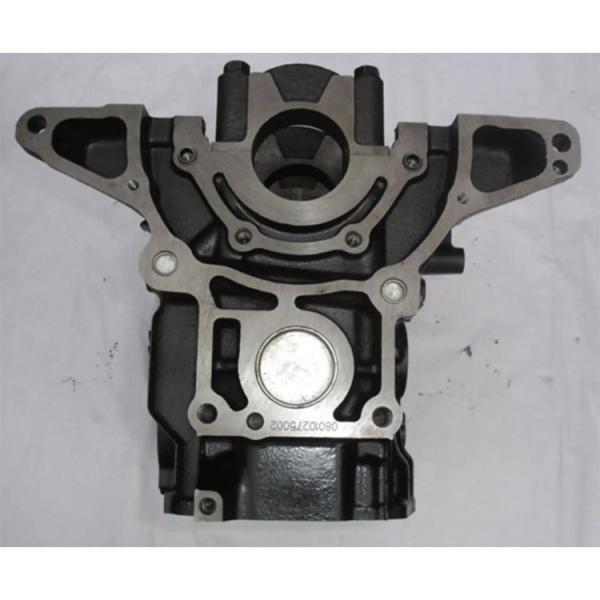

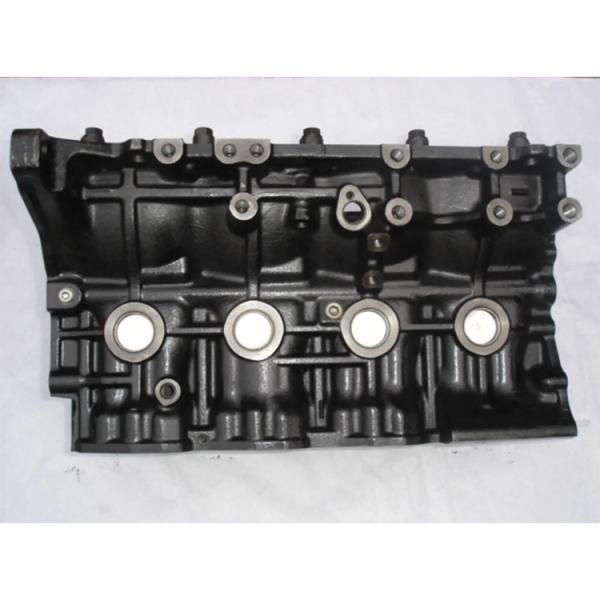

Complete Cylinder Block 3L Diesel Engine Cylinder Block 11401 - 59347 ( 1140159347 ) For TOYOTA Hilux HiAce Crown Landcruiser

The Toyota 3L is a 2.8 L (2,779 cc, 169.6 cu·in) four cylinders, four-stroke cycle water-cooled naturally aspirated internal combustion diesel engine, manufactured by the Toyota Motor Corporation.

The Toyota 3l diesel engine has a 96.0 mm (3.78 in) cylinder bore and 96.0 mm (3.78 in) piston stroke. Compression ratio rating is 22.2. The motor has a cast iron cylinder head with a single overhead camshaft (SOHC) with two valves per cylinder and indirect injection design.

The 3L engine produced 91 PS (67 kW; 90 HP) at 4,000 rpm of maximum horsepower and 188 N·m (19.2 kg·m, 138.6 ft·lb) at 2,400 rpm of maximum torque.

The cylinder block is made of cast iron. The crankshaft is supported by five bearings on the inside of the crankcase. The crankshaft bearings are made of aluminum alloy. The crankshaft is integrated with balance weights which are cast along with it for balance.

The cylinder bore is 96.0 mm (3.78 in), piston stroke is 96.0 mm (3.78 in) and compression ratio rating is 22.2:1.

Product Features:

Application:

• Toyota Hilux
• Toyota Hilux Surf
• Toyota 4Runner
• Toyota HiAce
• Toyota Land Cruiser Prado (J70)
• Toyota Land Cruiser Prado (J90)
• Toyota Fyna 150

Packing:

Transportation:

FAQ:

Q1: Can you produce per the samples?
A: Yes, we can produce as per your samples or technical drawings. We have very professional technical team , We can build the molds and fixtures.
Q2: What is your terms of payment?
A: For stock items , we recommend full payment for fast shipping. If the items need to be produced , T/T 30% as deposit, and rest before delivery.

We'll show you the photos of the products and packages for checking before you pay the balance.
Q3: What is your package?
A: Depends on items , for light heavy goods, We usually pack our goods in neutral brown cartons , if heavy goods or big quantity ,we pack it by pallet or wooden box. Also we can customized package for your band as per your requirements.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q5: What is your delivery time?

A: In general, if we have stock ,the goods can be delivered 1-3 days after your payment. If no stock, the specific delivery time will be depended on your order quantity.
Q6: Can you accept sample order?
A: Yes sure. We can supply the sample if we have the parts in stock.
Q7: Do you test all your items before delivery?
A: Yes, we have 100% test before delivery,we have strictly quality control policy.
Q8: Which shipment you can supply?
A: By sea, by air ,by train or by express (DHL, FEDEX ,TNT,UPS,EMS etc.)
