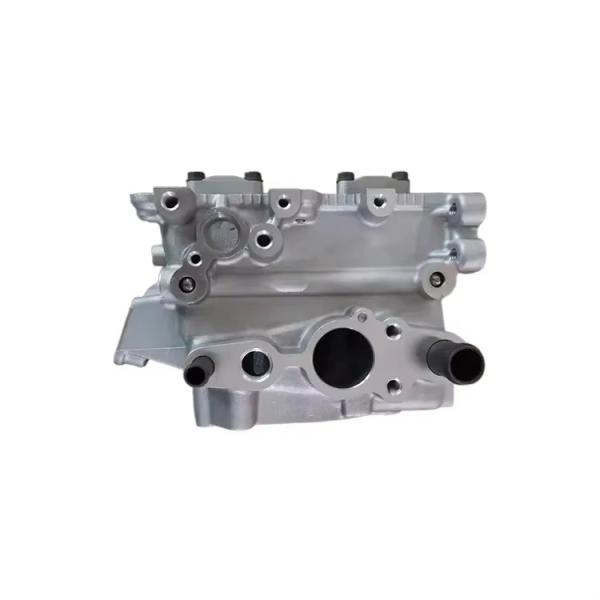

G4LA G4LC 1.2L 1.4L Cylinder Head New Auto Parts Hyundai Renner I10 I20 Kia Rio Picanto Huanchi K2 22100-03445 Engine

The 1.2-liter 4-cylinder Hyundai G4LA engine has been produced in India and Korea since 2008 and is installed in almost all compact models of the concern, such as the i10, i20 and Kia Picanto. There are two generations of this motor, the second is equipped with Dual CVVT type phase regulators.

The 1.4-liter 16-valve Hyundai G4LC engine was introduced by the company in 2014 and is known in many markets for such popular models as the Rio 4 and Solaris 2. In Europe, this power unit was found on the i20, i30, Ceed, Stonic and the fifth generation Accent.

Kappa R4 family: G4LA, G4LF, G4LC, G4LD, G4LG, G4LH, G4LE.

In 2008, the 1.25-liter engine of the new Kappa series debuted on the Hyundai i10 and i20 models. By design, this is a common unit for that time with distributed fuel injection, an aluminum block for 4 cylinders with cast-iron liners and an open cooling jacket, an aluminum 16-valve cylinder head equipped with hydraulic compensators and a timing chain drive. The first version of such a power unit did not have a variable valve timing system.

In 2011, the second generation of the motor appeared, which received Dual CVVT phase regulators. The appearance of this system made it possible to add 7 hp to the engine and fit into the Euro 5 environmental standards.

In 2014, the 1.4-liter engine of the Kappa family debuted on the second generation of the i20 model. This is a typical engine for its time, equipped with multiport fuel injection with an aluminum block, cast iron liners, a 16-valve head with hydraulic lifters, a timing chain and Dual CVVT phasers on the intake and exhaust camshafts. There is also a plastic intake manifold with a VIS geometry change system.

The manufacturer took into account the problematic experience of operating the 1.4-liter G4FA engine of the Gamma series and equipped the G4LC engine with piston cooling oil nozzles, and also modified the exhaust manifold so that catalyst crumbs could not enter the cylinders.

Product Features:

Detailed Photos:

Application:

• Hyundai i10 1 (PA) in 2008 – 2013; i10 2 (IA) in 2013 – 2019;
• Hyundai i20 1 (PB) in 2008 – 2014; i20 2 (GB) in 2014 – 2020;
• Kia Picanto 2 (TA) in 2011 – 2017; Picanto 3 (JA) since 2017;
• Kia Rio 3 (UB) in 2011 – 2017; Rio 4 (YB) since 2017;
• Kia Stonic 1 (YB) since 2017.
• Hyundai Accent 5 (YC) since 2017;
• Hyundai i20 2 (GB) in 2014 – 2018;
• Hyundai i30 2 (GD) in 2015 – 2017; i30 3 (PD) since 2017;
• Hyundai Solaris 2 (HC) since 2017;
• Kia Ceed 2 (JD) in 2015 – 2018; Ceed 3 (CD) since 2018;
• Kia Rio 4 (FB) since 2017; Rio 4 (YB) since 2017;
• Kia Rio X-Line 1 (FB) since 2017;
• Kia Rio X 1 (FB) since 2020;
• Kia Stonic 1 (YB) in 2017 – 2019.

Packing:

Transportation:

FAQ:

Q1: Can you produce per the samples?
A: Yes, we can produce as per your samples or technical drawings. We have very professional technical team , We can build the molds and fixtures.
Q2: What is your terms of payment?
A: For stock items , we recommend full payment for fast shipping. If the items need to be produced , T/T 30% as deposit, and rest before delivery.

We'll show you the photos of the products and packages for checking before you pay the balance.
Q3: What is your package?
A: Depends on items , for light heavy goods, We usually pack our goods in neutral brown cartons , if heavy goods or big quantity ,we pack it by pallet or wooden box. Also we can customized package for your band as per your requirements.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q5: What is your delivery time?

A: In general, if we have stock ,the goods can be delivered 1-3 days after your payment. If no stock, the specific delivery time will be depended on your order quantity.
Q6: Can you accept sample order?
A: Yes sure. We can supply the sample if we have the parts in stock.
Q7: Do you test all your items before delivery?
A: Yes, we have 100% test before delivery,we have strictly quality control policy.
Q8: Which shipment you can supply?
A: By sea, by air ,by train or by express (DHL, FEDEX ,TNT,UPS,EMS etc.)
