New 24V 1HD-FT 1HD-FTE Cylinder Head for Toyota Land Cruiser Coaster 11101-17040 11101-17041 11101-17042 11101-17043 11101-17044

The 1HD-FT is a 4.2 L (4,164 cc) straight-6 24 valve SOHC turbocharged direct injection diesel engine. Bore and stroke is 94 mm × 100 mm (3.70 in × 3.94 in), with a compression ratio of 18.6:1. Known as the "multivalve" it has 4 valves per cylinder (2 inlet, 2 exhaust), central vertically mounted injector, and no glow plugs but rather an intake glow screen heater (like the later electronic 1HD-FTE below). The 4 valves per cylinder are actuated by the SOHC, by using bridges so each rocker actuates a pair of valves. Output is 168 hp (125 kW; 170 PS) ECE at 3,600 rpm with 380 N⋅m (280 lb⋅ft) of torque ECE at 2,500 rpm. However, marinized version of 1HD (sold as Yamaha ME and Yanmar 6LP) have an output of 315 hp (235 kW; 319 PS) on Yanmar 6LP and 315 hp (235 kW; 319 PS), 370 hp (276 kW; 375 PS) or 420 hp (313 kW; 426 PS) on Yamaha ME.

The 1HD-FTE is a 4.2 L (4,164 cc) straight-6 24 valve turbocharged diesel engine. Bore and stroke is 94 mm × 100 mm (3.70 in × 3.94 in), with a compression ratio of 18.8:1. Output is 167 hp (125 kW; 169 PS) at 3,400 rpm with 380 N⋅m (280 lb⋅ft) of torque at 1,400 rpm. The fuel system is direct injection, and adopts the electronic fuel injection (EFI) system. Redline of this engine is at 4200 rpm.

The 4 valves per cylinder are actuated by the SOHC, by using bridges so each rocker actuates a pair of valves.

The version with intercooler as fitted to HDJ100 station wagons has 202 hp (151 kW; 205 PS) at 3400 rpm with 430 N⋅m (317 lb⋅ft) of torque at 1200-3200 rpm with a redline reaching 4200 rpm. A lower output 122 kW (164 hp; 166 PS) non-intercooled version powers HDJ78 Troop Carrier and HDJ79 Utility versions.

Also some of the HDB50 and HDB51 Coasters are fitted with this 1HD-FTE engine.

Product Features:

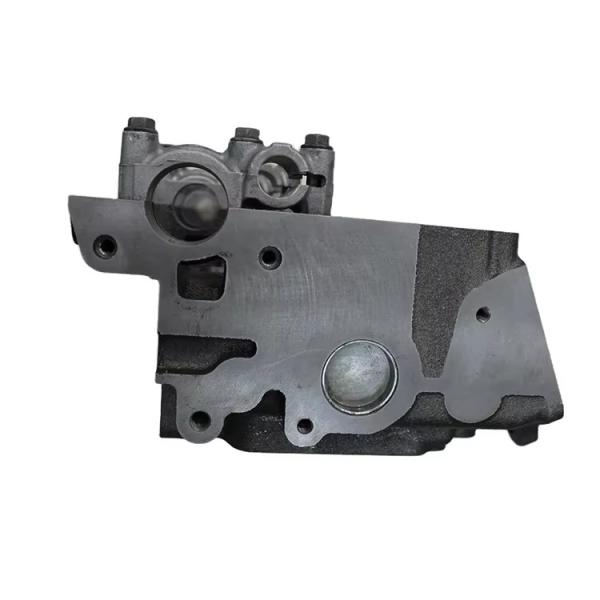

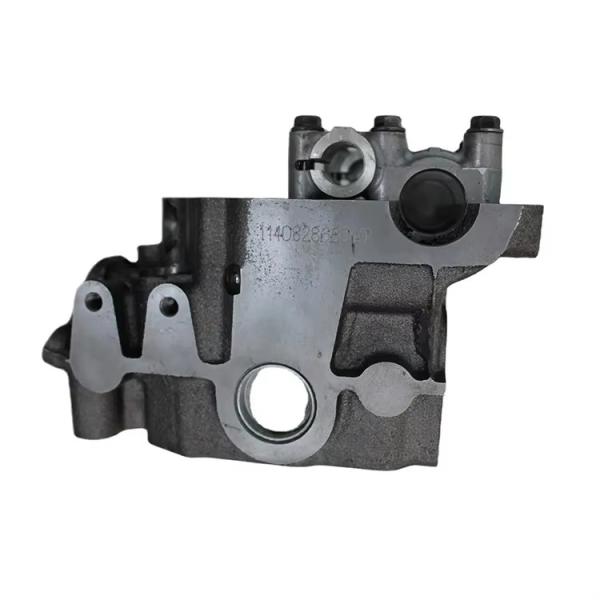

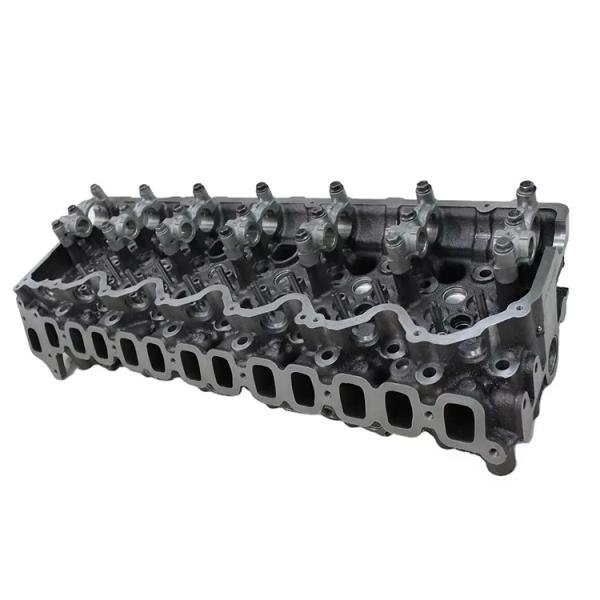

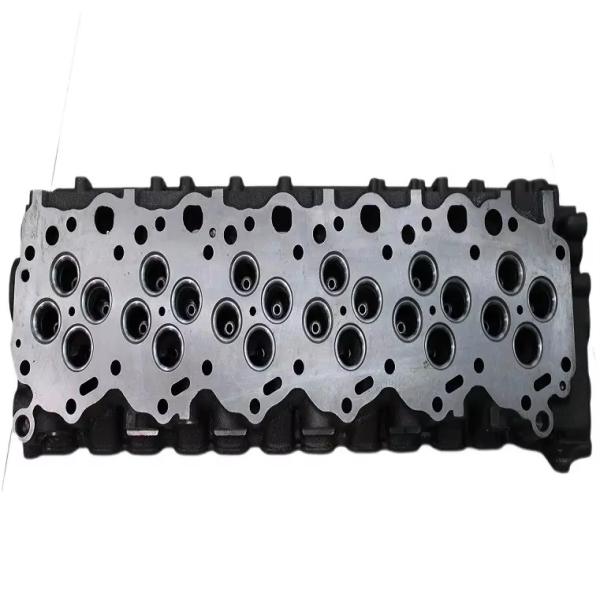

Detailed Photos:

Application:

• Land Cruiser, HDJ80, 1995
• Coaster, HDB50, July 1995 – July 1999
• Land Cruiser, HDJ80, July 1995 – July 1999
• Yanmar 6LP and Yamaha ME diesel engine (marinized version of 1HD-FT).

Packing:

Transportation:

FAQ:

Q1: Can you produce per the samples?
A: Yes, we can produce as per your samples or technical drawings. We have very professional technical team , We can build the molds and fixtures.
Q2: What is your terms of payment?
A: For stock items , we recommend full payment for fast shipping. If the items need to be produced , T/T 30% as deposit, and rest before delivery.

We'll show you the photos of the products and packages for checking before you pay the balance.
Q3: What is your package?
A: Depends on items , for light heavy goods, We usually pack our goods in neutral brown cartons , if heavy goods or big quantity ,we pack it by pallet or wooden box. Also we can customized package for your band as per your requirements.
Q4: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q5: What is your delivery time?

A: In general, if we have stock ,the goods can be delivered 1-3 days after your payment. If no stock, the specific delivery time will be depended on your order quantity.
Q6: Can you accept sample order?
A: Yes sure. We can supply the sample if we have the parts in stock.
Q7: Do you test all your items before delivery?
A: Yes, we have 100% test before delivery,we have strictly quality control policy.
Q8: Which shipment you can supply?
A: By sea, by air ,by train or by express (DHL, FEDEX ,TNT,UPS,EMS etc.)
