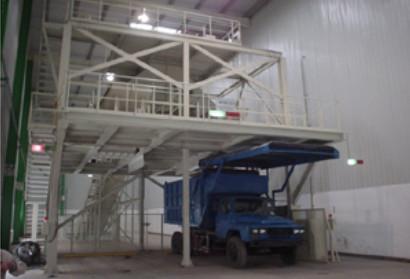

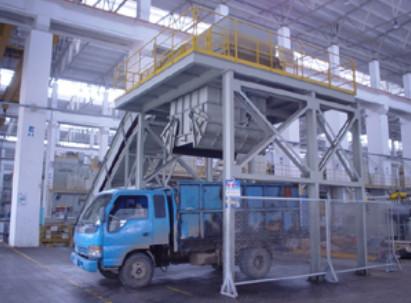

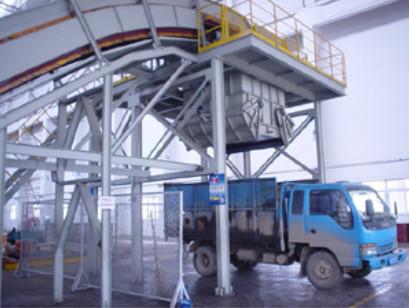

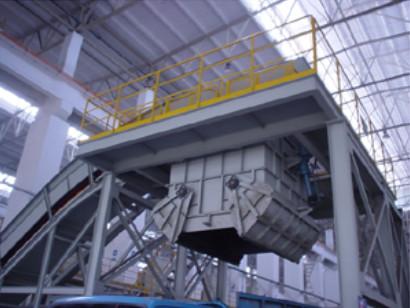

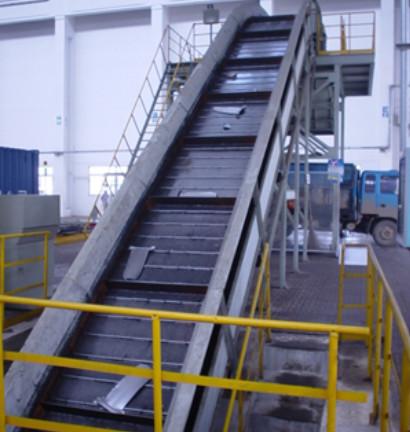

Waste conveyor line

The automobile manufacturing assembly shop is the last link in the four main processes of automobiles. It is responsible for the most critical assembly tasks of the car. It is to assemble parts in different positions of the car according to a certain order and process, and use them reasonably. The assembly process of various parts is carried out in accordance with technical requirements and standards to install the main body of the body, and finally a complete car is produced. In order to adapt to the production channel and production rhythm of modern society, the assembly line of modern automobile manufacturing will also arrange sub-assembly lines, such as: interior decoration line, chassis line, final assembly line, adjustment line, rain line, delivery line, door line, instrument Sub-assembly line, tire conveyor line, seat conveyor line, bumper conveyor line, etc.

The basic technological process of automobile manufacturing assembly

At this stage, in order to meet the needs of production capacity and improve the degree of precision production, the automobile manufacturing assembly workshop adopts modular process flow. The main modules include: "PBS line", "interior line", "debugging line", "chassis line", "final assembly line", "testing line", sub-component modules include: "door line", "seat line ", "Powertrain Line". When selecting conveying equipment, it is necessary to ensure that the conveying equipment is environmentally friendly, energy-saving, intelligent and safe, and to maximize transportation efficiency, production capacity and expand production efficiency.

Composition analysis of conveying equipment in production line of automobile manufacturing assembly workshop

In the production link of the automobile manufacturing assembly workshop, the automatic operation and transfer of the body or parts must be realized through the good operation of the assembly conveying equipment. The main components of the production line conveying equipment include: accumulation chain, friction line, plate chain line, skateboard line, AGV, EMS, roller bed and roller table.

(1) Components of production line conveying equipment—product chain

The product chain is a comprehensive space transmission system. The accumulation of items in the accumulation chain can not only realize the transportation and transmission of parts, but also solve the transportation problem of complex materials. The main structure of the product and release chain includes: conveyor chain, load carrier, spreader, driving device, tensioning device, track system and backstop, which are usually used in PBS lines and chassis lines in automobile manufacturing and assembly workshops. The advantage of the accumulation chain is that the cost is low and the technology is stable. The disadvantages are high noise, high energy consumption, slow line speed, low space utilization and poor flexibility.

(2) Components of production line conveying equipment - friction line

The friction line realizes the assembly line system of workpiece conveying through the friction between the bearing medium and the power device. It has a variety of forms, mainly including: air friction, ground friction and skateboard lines, and is mainly composed of spreaders, driving devices, spreaders, anti-skid chains and turnouts. The advantages of the friction line are good running stability, easy maintenance, low noise and good flexibility, but the disadvantage is high cost.

(3) Production line conveying equipment components - plate chain line

The plate chain production line is generally mainly used in the interior decoration line, adjustment line, rainwater line and assembly line of the automobile manufacturing assembly workshop. It can be divided into two types of equipment, namely double board chain and single board chain.
