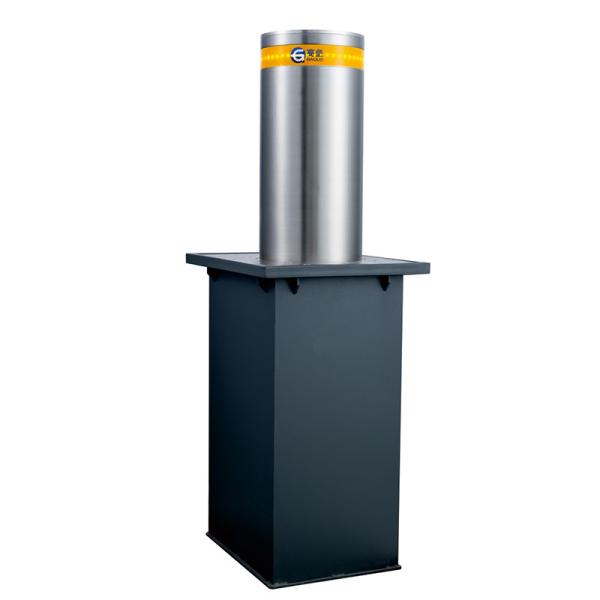

3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated
3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated
Specifications
Brand Name :
Gaolei
Model Number :
GL-QM6-219
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
799-820
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100
Delivery Time :
7-14day
Packaging Details :
wooden box
Product name :
automatic bollards
automatic bollards :
Stainless Steel
Application :
Railway Station
Surface treatment :
Polished Finished
weight :
110kg
Voltage :
AC220V
Fall time :
≤1-2S (adjustable)
IP rate :
IP68 waterproof
Description

Stainless Steel Remote Control Automatic Road Pile Anticollision Intelligent Blocking Hydraulic Bollard

Technical Parameter:

Control System Integrated Electro- Hydraulic
Passing pressure: ≤80- 120 tons container trucks
Voltage: AC220V 50Hz Integrated
System Dynamic power 350W Integrated
Rise time : ≤3-4S (adjustable)
fall time : ≤3-4S (adjustable)
Material: 304 stainless steel
Rising height: 600mm
Diameter 168mm,219mm,273mm (can be customized)
External housing size 430*430*1130mm/500*500*900mm
Thickness of bollard 6mm,8mm,10mm.12mm,15mm,30mm (optional)
Working Temperature : -35ºC~75ºC(suitable)
Storage Environment : 10ºC~65ºC, Waterproof and moisture-proof
Solenoid valve voltage : 24V
Remote control distance Approx .50m-100m
Running noise ≤60 db
Waterproof: IP68, double sealed
Weight: 200 KG approx.

Main Function:

1.Different thickness of steel is available
2.Different grade of reflective film is available : High-Intensity Reflective Film , engineering grade sheet
3.supper grade sheet
4.Different standard color is available
5.Customized design and size
6. Steady and safe due to the Omron plc control system
7. Speedy and durable due to the use of hydraulic pressure
8. Lower down the bollards by handle valve in case of power failure or fault of automatic system
9. Raise up the bollards by handle pump in case of power failure or fault of automatic system
10. Galvanization is durable and stainless
11.Optimization of frame structure, high anti-impact capability, high loading capability
12.Protecting key avoids mis-operation

3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated3S Fall Automatic Rising Bollards 430*430*1130mm AC 220V 50Hz Integrated
