Anti Corrosion Plastic Bottle High Viscosity Liquid Agrochemicals Filling Machine
Anti Corrosion Plastic Bottle High Viscosity Liquid Agrochemicals Filling Machine
Specifications
Brand Name :
Parris
Model Number :
PAF-12C
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 15000-20000 Per Set
Payment Terms :
L/C, T/T
Supply Ability :
15 sets per month
Delivery Time :
35-45 working days
Packaging Details :
Standard export wooden box
Filling volume :
100-5000ml
Filling speed :
Around 4000 bottles per hour
Application :
Beverage,Food,Chemical,MedicalFood, Beverage, Chemical, bleach
Material :
Anti-corrosion material
Motor :
servo motor
Driven type :
Pneumatic/Electric
Filling accuracy :
±0.5%
Function :
anti corrosion toilet cleaner liquid filling and capping machine
Description

Automatic anti corrosion plastic bottle high viscosity liquid agrochemicals bleach filling machine

Anti Corrosion Plastic Bottle High Viscosity Liquid Agrochemicals Filling Machine

Overview:

This type of machine can be used for fixed amount small package filling,straight line type filling, metical, electric, apparatus control of all sorts of viscous and no viscous,erosive liquid,such as plant oil chemical,liquid,daily chemical industry.It is rather simple and rapid to change items,the design is quite distinct,the property is Very advantageous,its appearance corresponds to international concept for mechanical equipment.

Features:

1. Adopts piston pump to fill, suitable for all kinds of liquid, high precision; The structure of pump adopts shortcut dismantling organ, convenient to wash, sterilize.
2. The piston ring of volumetric injection pump use different material of silicone, polyclonal or other kinds according to liquid characteristic, use ceramic pump in special industry.
3. PLC control system, frequency conversion adjusting speed, high degree automation.
4. No bottle, no filling, auto count the quantity. And have the anti-drop device.
5. Filling quantity of all pumps is adjusted in a lump, minim adjustable for each pump. Easy and quick operate.
6. Filling head is equipped with anti-dropping equipment, diving to the bottom to fill, rise slowly, to avoid bubble.
7. The whole machine is suitable bottles in different size, easy adjusting, and can be finished in short time.

Main Technical Specification:

Volume 100-5000ml
Filling accuracy ±0.5%
Filling speed around 4000 bottles per hour
Supply Power 1P 220V 50-60Hz 2500W
Size 4000*1400*2200mm
Net Weight 850KGS

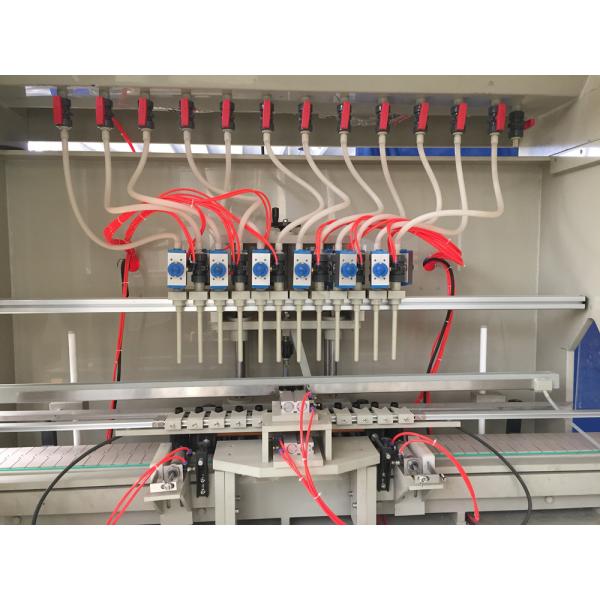

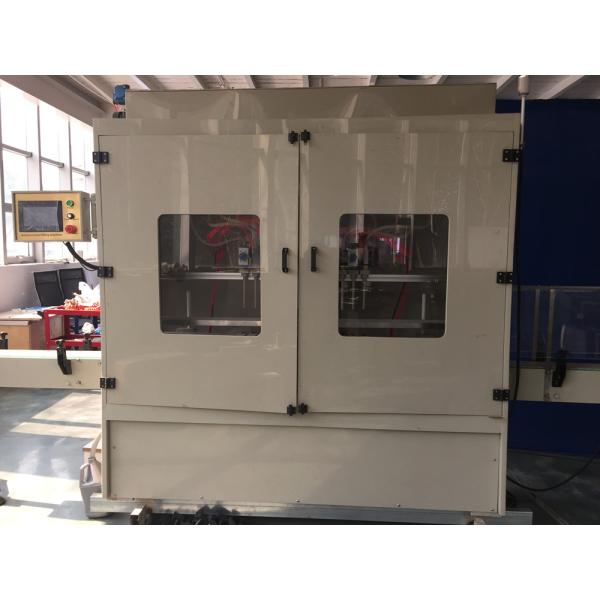

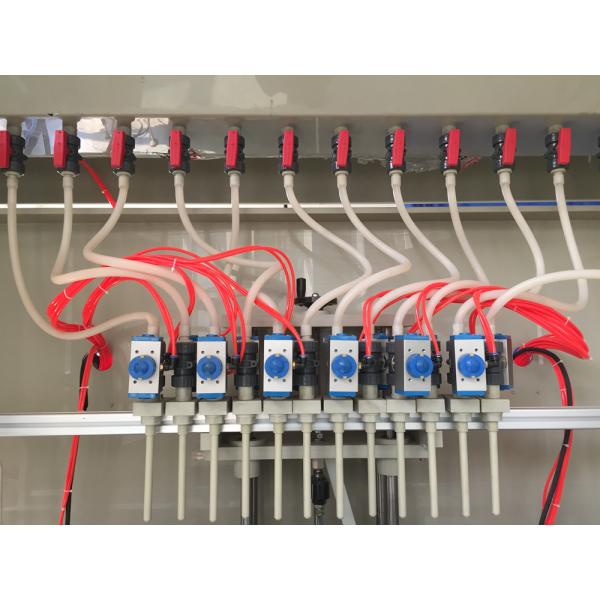

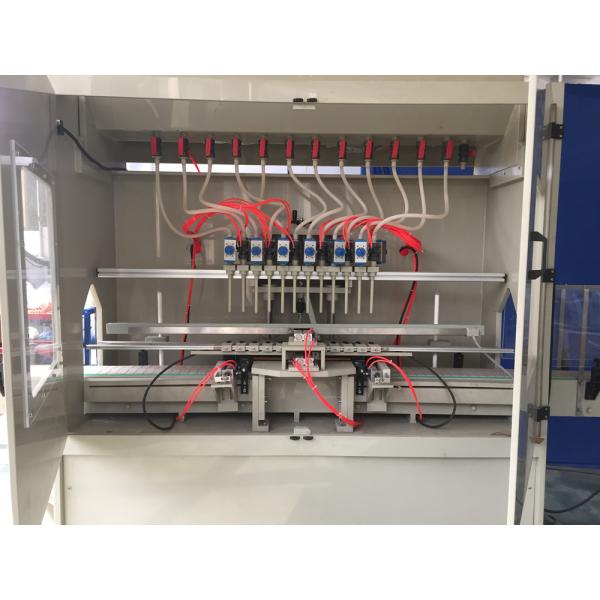

More detailed photos:

Anti Corrosion Plastic Bottle High Viscosity Liquid Agrochemicals Filling Machine

Anti Corrosion Plastic Bottle High Viscosity Liquid Agrochemicals Filling Machine

Anti Corrosion Plastic Bottle High Viscosity Liquid Agrochemicals Filling Machine

Our Factory:

Anti Corrosion Plastic Bottle High Viscosity Liquid Agrochemicals Filling Machine

Anti Corrosion Plastic Bottle High Viscosity Liquid Agrochemicals Filling Machine

Packaging and delivery:

Anti Corrosion Plastic Bottle High Viscosity Liquid Agrochemicals Filling Machine

Customs Visits:

Anti Corrosion Plastic Bottle High Viscosity Liquid Agrochemicals Filling Machine
