1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts
1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts
1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts
1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts
1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts
1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts
1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts
1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts
Specifications
Brand Name :
SunChon
Model Number :
SUN-420W
Certification :
CE Certification
Place of Origin :
China(Mainland),Guangdong
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash
Supply Ability :
200 Sets per month
Delivery Time :
Within 20 days
Packaging Details :
Wooden case
Usage :
Bag Making
Machine Volume :
1000ml
Packing material :
Plastic Film
Voltage :
220V/380V/110V
Driven Type: :
Pneumatic
Catagory :
Snacks
Bag type :
Pillow,3/4 side sealing
Operate :
PLC
Description

1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts

Ce marked Automatic packaging machine for chips /snacks frozen shrimp packaging machine

-It’s widely used in food industry, chemical industry and others.
-It has stable performance, easy operation, and PLC control.

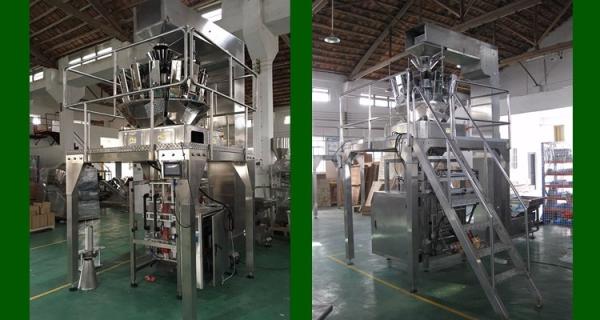

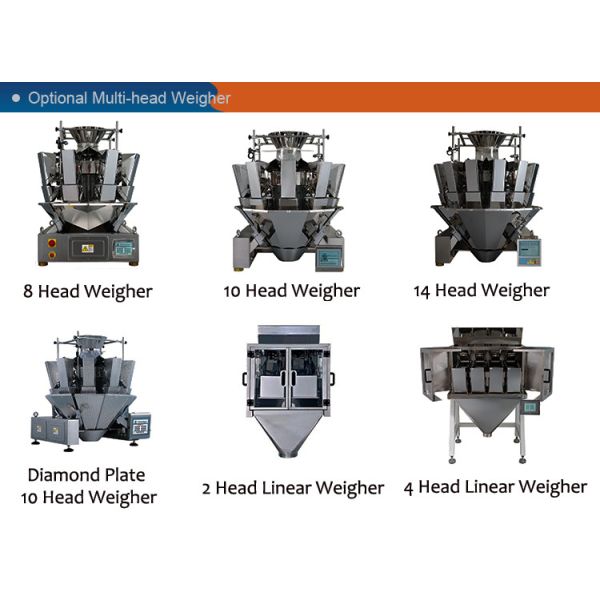

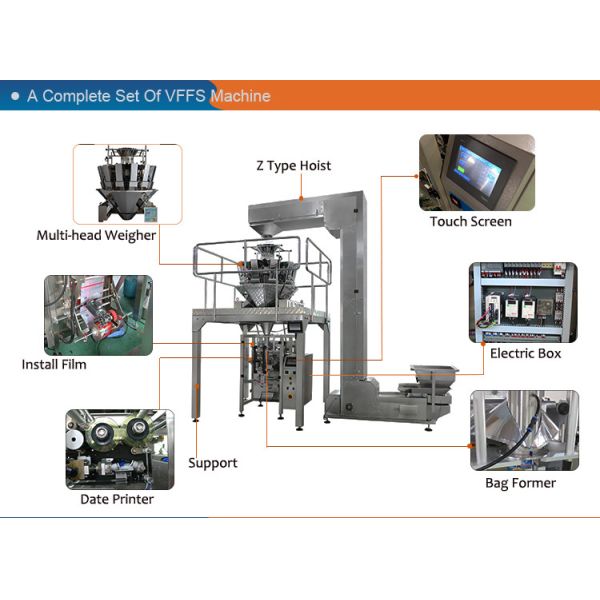

-The whole set of machine consists of hoisting machine, multi-head weigher, vertical packing machine and conveyor.
-With date printing

1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts

Machine Parameters



VFFS Machine
SUN-520
Packing Speed
5-60 Bags/Min
Volume
2000ML
Bag Width
150-250 MM
Bag Length
80-400 MM

Packaging Film
Max Width
520 MM
Thickness
0.04-0.09 MM
Material
OPP/CPP PET/PE PET-AL/PE Lamination Film


VFFS Machine
Weight
550 Kg
Air Consumption
0.8Mpa 0.4m³/Min
Power Supply
2.2Kw 220V 50Hz
Dimension LxWxH
1500x11400x1540 MM

Main Features

1. This machine adopts correcting system controlled by microcomputer, owing to a response signal is handle and set pass through microcomputer it can accomplish whole set to synchronization, sack length, position fixing, voluntarily follow the tracks of light-mark and voluntarily diagnose trouble and show to screen.
2. This machine can automatically complete a series of actions, such as bag making, the measuring,filling, inflating, counting, sealing, code printing, material giving, stopping in certain quanting, fixed-bag cutting and same cutting.
3. Suitable for package of foodstuff, seasoning, medicine (For example:ncutlet, peanut, tea, candy,non-sticky powder and so on.)
4. Fully controlled by Siemens or Omron PLC & Touch-Screen.
Sample bags
1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts
1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts1000ml Automatic Vertical Packaging Machine For Frozen Shrimp / Dry fruits / Nuts
Packing machine quality guarantee and after sale service as follow:
1. Training how to install and use machine before delivery .
2. Delivery machine with operating Manual, Offer video.
3. 24h*7days Telecom or Online face to face communication available to help your problem,most problem can be resolved in this way.
4. Engineers available to service machinery in your factory, as assembling, installation and debugging, start-up and local team training will be FREE,you should be responsible for the round-air tickets, local transportation, board & lodging, and USD $100/day/person for the pocket money to our technicians. This machine need one person, and will cost 5-7 days.
5.In Quality Guarantee Period,we provide spare parts(Except for human-made damage)free.
6.Quality Warranty Period:One Year Quality Warranty(12 month when client received goods)
