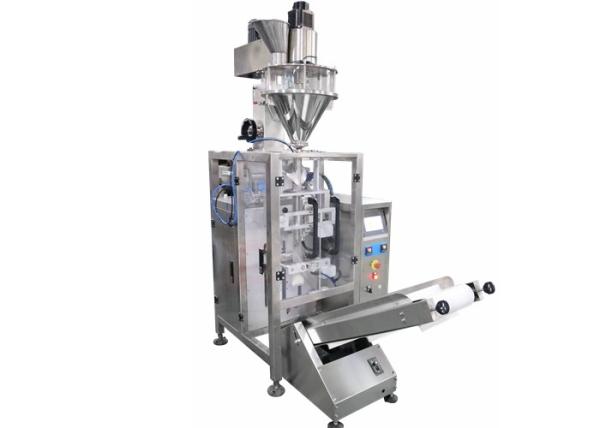

Automatic Water - Soluble Film Packing Machine For Powder Products
Automatic Water - Soluble Film Packing Machine For Powder Products
Specifications
Brand Name :
SunPack
Model Number :
SUN-320WSF
Certification :
CE
Place of Origin :
FoShan City. GuangDong Province. China
MOQ :
1SET
Price :
USD+15000-30000+SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash
Supply Ability :
100+Sets+One Month
Delivery Time :
2-5 Weeks
Packaging Details :
Wooden case, 5-10 Cubic metre
Name :
Powder Packing Machine
Packaging Film :
Water-Soluble Film
Shape of Bag :
Sachet,Pillow Bag
Machine Made Of :
Stainless Steel
Powder Dosing :
Auger Filler
Packing Speed :
5-50 Bags/Min
Feeding :
Screw Elevator
Description

Automatic Water-Soluble Film Packing Machine For Powder Products

>>Application

This packing machine is New Design special for the Water soluble film packing machine ,widely used to pack powder products,chemical and medical powder products etc.

>>Technical characteristics

1: PLC control the machine and most of operate bycolor touch screen. bag-making, measuring, filling, printing,cutting , all in one.

2: Film-Running by servo motor and double belt, bag is formed in good shape.

· Speed: 5 – 50 Bags per minute

· Packaging material: Water-Soluble Film

· Bag Sizes: 80 – 240 mm L x 20 -150 mm W

· Bag Type: Pillow Bag/Center seal

· Machine includes one bag former is FREE

· Electricity: 220VAC/50-60Hz

· Air: 6-8 Kg/m, 0.5 m3/min

· Machine Weight: 350 Kg.

· Machine Dimensions: (L)1170mm×(W)820mm×(H)1285mm
Main Features:

· Stainless Steel construction (SS304)

· PLC Servo and Pneumatic control system

· Intuitive operation and easy to use software through a SIEMES /SCHNIDER Brand Color Touchscreen HMI

· SIEMESN OR SCHNIDER Brand PLC

· Film tracking byhigh precision photo sensor

>>Model SUN-320P Parameters

Packing Machine

SUN-320

 Packing Speed 5-60 Bags/Min
Volume 800ML
Bag Width 50-150MM
Bag Length MAX 200MM
Packaging Film Max Width 320MM
Thickness 0.04-0.09MM
Material OPP/CPP PET/PE PET-AL/PE Lamination

Packing Machine

SUN-320

 Weight 350KG
Air Consumption 0.8Mpa 0.3m³/Min
Power Supply 2.2Kw 220V 50Hz
Dimension LxWxH (L)1170x(W)820x(H)1285MM

Water-Soluble Film Packing Machine

Automatic Water - Soluble Film Packing Machine For Powder Products

Automatic Water - Soluble Film Packing Machine For Powder Products

Automatic Water - Soluble Film Packing Machine For Powder Products

Automatic Water - Soluble Film Packing Machine For Powder Products
