500g / 1000g Milk Powder Packing Machine , Automatic Vertical Bagging Machine
500g / 1000g Milk Powder Packing Machine , Automatic Vertical Bagging Machine
500g / 1000g Milk Powder Packing Machine , Automatic Vertical Bagging Machine
500g / 1000g Milk Powder Packing Machine , Automatic Vertical Bagging Machine
500g / 1000g Milk Powder Packing Machine , Automatic Vertical Bagging Machine
500g / 1000g Milk Powder Packing Machine , Automatic Vertical Bagging Machine
Specifications
Brand Name :
SunChon
Model Number :
SUN-520W
Place of Origin :
FoShan
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, D/A, L/C, D/P, Western Union, MoneyGram
Supply Ability :
100 Sets/Month
Delivery Time :
15-20 Day
Packaging Details :
Wood Box
Name :
Milk Powder Packing Machine
Application :
Powder Products
Made of :
Stainless Steel 304
Weight of each Bag :
500g 1000g
Dosing :
Auger Filler
Film Width :
Max 520MM
Description

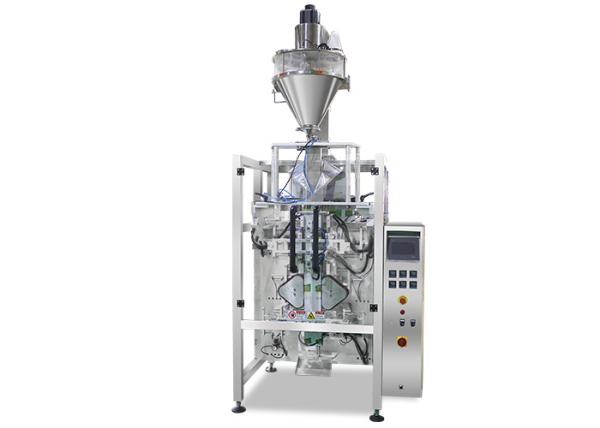

Automatic 500g 1000g Milk Powder Packaging Machine Manufacturer

Be Composed Of

1: SUN-520 Packing Machine 2: Auger Filler
3: Screw Elevator 4: Conveyer

Parameters Of Packing Machine

Model SUN-320 SUN-420 SUN-520 SUN-720
Packing Speed 5-70 Bags/Min
Volume(ML) 800 1000 2000 4000
Bag Width(MM) 50-150 80-200 150-250 200-350
Bag Length(MM) 200 60-300 80-400 80-450
Max Width Of Roll Film(MM) 320 420 520 720
Thickness 0.04-0.09 MM
Material Lamination Film,PE,Aluminium Film,etc
Weight(KG) 350 450 550KG 750 Kg
Air Consumption 0.65Mpa 0.3m³/Min 0.6Mpa 0.5 m³/Min 0.8Mpa 0.4m³/Min 0.8Mpa 0.4m³/Min
Power Supply(KW) 2.2 2.2 2.2 3.0
Dimension LxWxH(MM) 1170X820X1285 1320X920X1392 1500X1140X1540 1800x1250x1780
Temperature Precision ±1℃.
Precision ± 0.2-1%.

Parameters of auger filler

Dosing Weight 100-5000g (Replace Screw)
Accuracy More or less 0.2-1%
Electric Servo Motor. PLC. Frequency Motor
Hopper 60l
Powder 380V(3 or4 Phases),220V(Single Phase)
Total Powder 2.3KW
Total Weight 150KG
Dimension 1030x690x1100MM
Hopper 60L

Auger Filler will dosing amount of powder products then into the forming bag by a tube. High accuracy and very fast. In case dusting,powder and bag will moving downwards at same time.

Machine serve to pack powder in plastic bags made of PE or PP laminated film etc.Please tell us your products information, NAME, WEIGHT OF EACH BAG, SHAPE OF BAG, we will choose the perfect sustainable and efficient packaging solution for you.

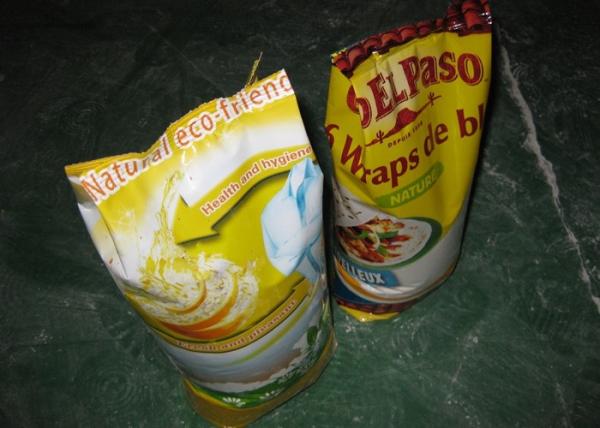

Application

500g / 1000g Milk Powder Packing Machine , Automatic Vertical Bagging Machine

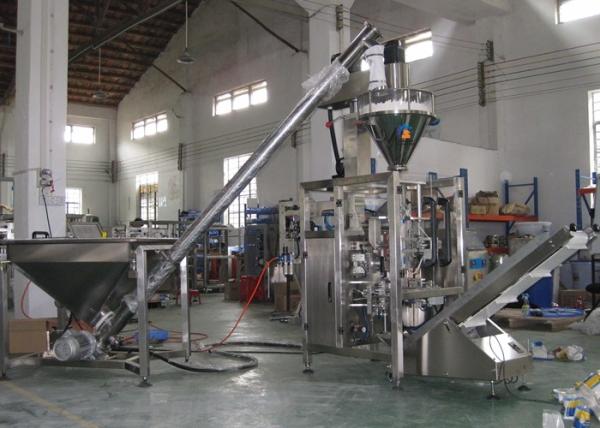

Take photo from our factory

500g / 1000g Milk Powder Packing Machine , Automatic Vertical Bagging Machine
