20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type
20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type
20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type
20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type
20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type
20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type
20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type
20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type
Specifications
Brand Name :
Xingchi
Model Number :
XC-218G-WXA
Certification :
None
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
10 sets per day
Delivery Time :
5 working days
Packaging Details :
wooden box package for overseas export transportation, 3 cbm/set(130X110X155 cm for machine, 75*55*125cm for handling table), 300kg/box.
Condition :
New
Stitch Formation :
Lock Stitch
After-sales Service :
oversease service available in Vietnam, Cambodia and Myanmar
needle :
DPx17
feeding :
semi-automatic
hook and eye width :
20-75mm
Description

20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type

Features:

1)· With national patent.

2). Automatic adapting make correct deviation prevent the left and right side nonuniform.

3). Automatic fixed position.

4). According to the simple adjustment function of different specifications.

5). New pneumatic scanning structure .

6). The high precision and uniform line collection of the electronic clamp.

7). Efficient,one every 8 seconds .stitch standard beautiful,improve product quality.

20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type

Main Features

1) Sewing size adjustable (within 5 buckles).

2) Feeding: automatic electric sensor feeding.

3) Press foot style: Pneumatic.

4) Hook: double capacity shuttle hook.

5) Saving two labour workers compared to conventional sewing machine.

20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type

Product Application

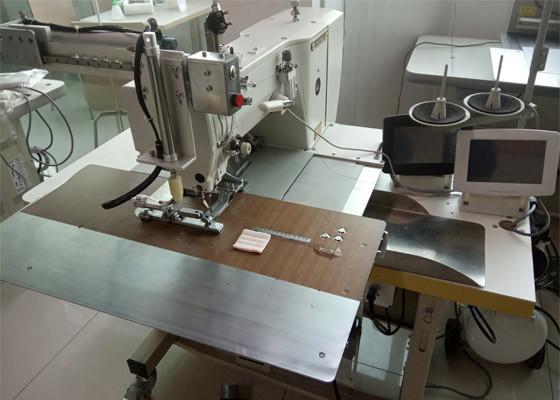

XC-218G-WXA bra buckle pattern sewing machine is suitable for automatically sewing bra buckles, as fast as 1500~2000 pairs per day. By applying our technology, bra factories are available to improve production quality and efficiency at the same time.

SPECIFICATIONS FOR XC-218G-WXA Bra Buckle Pattern Sewing Machine
Efficiency
Max speed
rpm
2800
Speed rage
rpm
200~2000(10 phases)
Manpower Saved
person(s)
2
Main performance parameters
Max stitch qty
stitches/pattern
8000
Buckle dim
mm
Width: 1mm~8mm
Length: 25mm~95mm
Needle type
DP
17#18
Power system
Motor
servo motor
direct drive
Power
AC220V (grouding)
750W
Control
Electronic startup
one button

20 - 75mm Underwear Sewing Machine Electric Sensor Feeding XC - 218G - WXA Type
