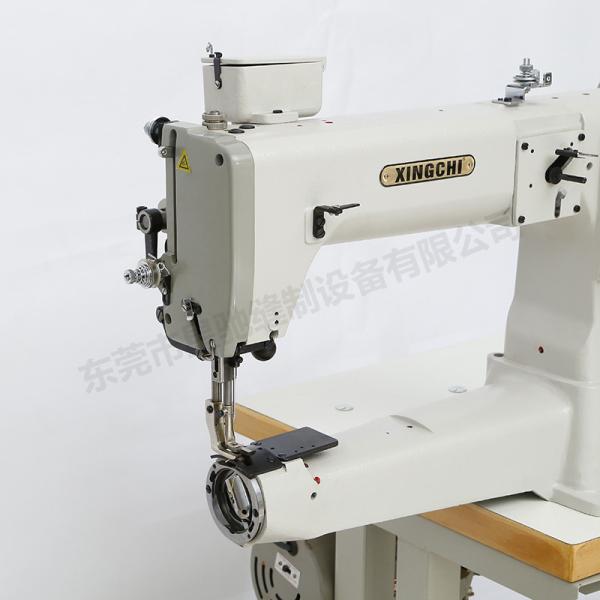

ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
ABS Luggage cylinder bed sewing machine golf bag machine
Specifications
Brand Name :
XINGCHI
Model Number :
XC-441
Place of Origin :
China
MOQ :
1 set
Price :
USD750/set
Payment Terms :
T/T
Supply Ability :
1000sets/month
Delivery Time :
10-15days
Packaging Details :
Carton box
Name :
Single needle ABS luggage sewing machine
max speed :
1600RPM
Nddle type :
DP*17 #12-#24
Needle distance :
6.0mm
Press foot lift :
15mm
Post type :
Round or square post
Post height :
555mm,703mm available
Hook place :
left or right available
Complete set include :
machine head, table, stand, motor
Motor power :
Electric motor
Voltage :
220v
Description

single needle unison feed cylinder-bed sewing machine for extra-heavy materials

For ABS luggage sewing golf bag

Features:

Powerful unison feed mechanism, the machine can sew accurately and easily several sheets of heavy materials piled up together.

The sewing area is up to 420mm, suitable for stich the huge articles.

The lift of presser foot is up to 20mm, suitable for stitching the extra-heavy materials.

Applied the semi-rotary large shuttle hook & bobbin, could reducequency of changing the bobbin thread and increase the sewing efficiency.

Suitable for stitch all the extra-heavy materials, such as the handle of bags, gloves, safety belt, tents, seating shoes, bags, ...etc.

Max. Sewing Speed: 800r/min

lift of presser foot(knee): 20mm

Max stitch length:11mm

Needle system: DY*3 #26 (#23-#28)

Alternating movement:4-8mm

ABS Luggage cylinder bed sewing machine golf bag machine

Sewing machine for ABS luggage one production line
No. Model Description QTY
(SET)		 picture
1 XC-8700D electronic feed dog feed lockstitch sewing machine
Sewing speed:3800 stitch/min
Height of preeser foot:6-13.0mm
Stitch length:4.0mm
Needle:DB*1 14#
Voltage: 220V		 6
ABS Luggage cylinder bed sewing machine golf bag machine
2 XC-341 Single needle unison feed cylinder sewing machine (large hook) Sewing speed:2800 rpm(Motor speed)
Lift of preeser foot:15mm
Working area: 250mmW*110mmH
Max Stitch length:9.0mm
cylinder dia:72mm
Thickness of material: 9mm
Needle:DP*17 18-22#
Voltage: 220V Full set, motor, legs, table&head included 		6
3 XC-0398 single needle direct drive computer double synchronous lockstitck sewing machine
direct drive servo motor build-in
Complete machine: head, table, control box legs included
Self lub bottom tank
Sewing speed:2500 rpm
Lift of preeser foot(Hand/Knee):6-13.0mm
Max Stitch length:8.0mm
Needle:DP*17 18-22#
Voltage: 220V
Power: 550W		 6
ABS Luggage cylinder bed sewing machine golf bag machine
4 XC-441 single needle unison feed cylinder-bed sewing machine for extra-heavy materials
Max. Sewing Speed: 800r/min
lift of presser foot(knee): 20mm
Max stitch length:11mm
Needle system: DY*3 #26 (#23-#28)
Alternating movement:4-8mm		 9
ABS Luggage cylinder bed sewing machine golf bag machine
5 XC-8703 compound feed post bed sewing machine Mechanical Configuration:Post-Bed (Right post)
Max. Sewing Speed:1600rpm
Max. stitching length:10mm
Lifting of press foot:15mm
Alternating movemnt:3-7mm
Feed Mechanism:Manual
height of presser foot(Hand/Knee):8/15mm
needle:DD*1
Voltage: 220V
Motor: Clutch motor		 3
ABS Luggage cylinder bed sewing machine golf bag machine

Our mission: to serve customers

* Great teamwork in pre-sales and after-sales.
* Excellent showroom for on-site check.
* OEM/ODM service
* Patent protection.
* Distribution channel.

Our vision: focus on quality & technology

* 18 years' effort on improving quality and technology.
* Large amount of R&D investment in sewing machine idustry.
* Great attention on feedback concerning quality and technology.
* Engineering and merchanical team work together to handle technology issues.
