Free Standing ASRS Racking System / Intelligent Intensive Storage System 20M High
Free Standing ASRS Racking System / Intelligent Intensive Storage System 20M High
Specifications
Brand Name :
Huichen
Model Number :
Free-standing AS/RS racking
Place of Origin :
Qingdao,China
MOQ :
1 x 40' container
Price :
USD 30-100 PER PALLET LOCATION
Payment Terms :
L/C, T/T
Supply Ability :
300 container per month
Delivery Time :
within 30 days after the deposit
Packaging Details :
Export packing
Material :
Q345B steel
Surface treatment :
Powder coating
Crane stacker :
Double Mast Crane
PLC control :
SIEMENS
Height :
10-30m
Use :
Warehouse Racking
name :
ASRS Racking System
Weight capacity :
1000kg-3000kg/layer
Description

20m high Free-standing Intelligent intensive storage ASRS racking system

Automatic storage and retrieval system (AS/RS system) includes racks, stacker cranes, inbound and outbound conveying system, electronic controlling system, material handling equipment and computer monitoring & management system. Combined with advanced technologies such as laser positioning, barcode scanning and RF system, the high bay warehouse can be managed reasonably and automatically with minimum errors and convenient operation. With rapid development of modern storage and logistics industry, ASRS system is being more and more important, and used in various warehouses and logistics & distribution centers.

Characteristics:

1. Strong system integration capacity

2. High space utilization

3. Excellent operating efficiency

4. More automatic, informative and intelligent

Production details of the AS/RS warehouse

No. Name No. Name
1 Racking 3 Single mast stacker
2 conveyor 4 Double mast stacker

Main performance parameters of equipment

No. Storage
Goods specification W1000*D1200*H1150 (including the pallet)
1000 kgs/pallet,
Pallet: W1000*D1200,
Warehousing identification Barcode Recognition / LED screen
Equipment power supply AC380/50Hz~60Hz
1 Rack Rack structure Selective pallet rack
Rack scale 3 row x4 deep x 6 level x 64pallet =4608 pallet
Rack volume 4608 pallet locations
2 Stacker crane Qty 3 sets
Type Double mast crane stacker Straight rail, Ground support, not including cab
Load lifting capacity 1000kgs
Travel speed 0~80m/min (Frequency control)
Hoisting speed 0~30 (40)m/min (Frequency control)
Extending speed of shuttle 0~30 (40)m/min (Frequency control)
Control method Manual operation/single machine automatic /online automatic
Addressing method Laser ranging + barcode reading
Mode of operation Touch operation panel Graphic Text Operating Panel
Mode of communication Industrial ethernet (RBS)
Power supply mode DHG Closed Tubular Sliding Contact Line
3 Conveyor system Stock-In transport 1 sets
Stock-In measurement inspection 1 sets
Stock-Out transport 1 sets
Rated transport loading 1000 kgs
Transportation speed 12, 0~12m/min
Control mode Manual operation/ online automatic
Mode of operation TP
Mode of communication Industrial ethernet (RBS)
Power supply mode Power cable
Efficiency 100 pallet per hour

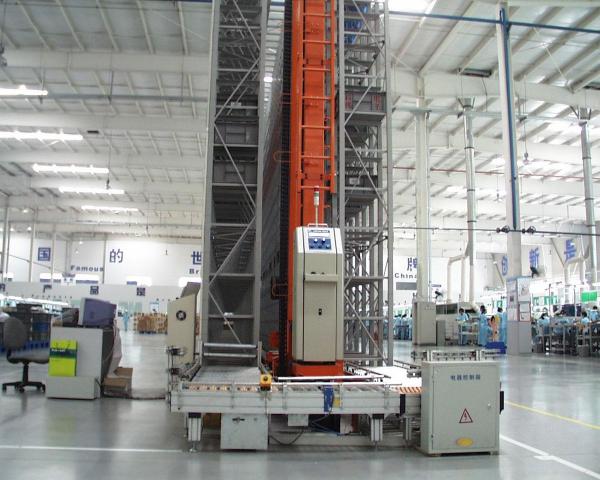

Project display at site

Free Standing ASRS Racking System / Intelligent Intensive Storage System 20M High
