Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking
Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking
Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking
Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking
Specifications
Brand Name :
Huichen
Model Number :
Selective pallet rack
Certification :
ISO9001,SGS
Place of Origin :
Qingdao,China
MOQ :
1 x 40' container
Price :
USD 30-100 PER PALLET LOCATION
Payment Terms :
L/C, T/T
Supply Ability :
300 container per month
Delivery Time :
within 30 days after the deposit
Packaging Details :
Packed in Bundles with Pallets
Type :
Selective pallet rack
Material :
Q235,Q235 Q345 Steel
Upright :
Teardrop
Surface Treatment :
Powder Coating
Feature :
Corrosion Protection
Transport Package :
Packed in Bundles with Pallets
Color :
RAL coade
name :
Heavy Duty Pallet Racks
Description

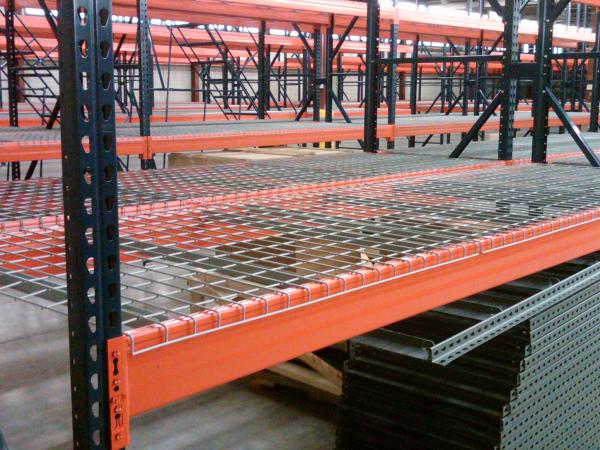

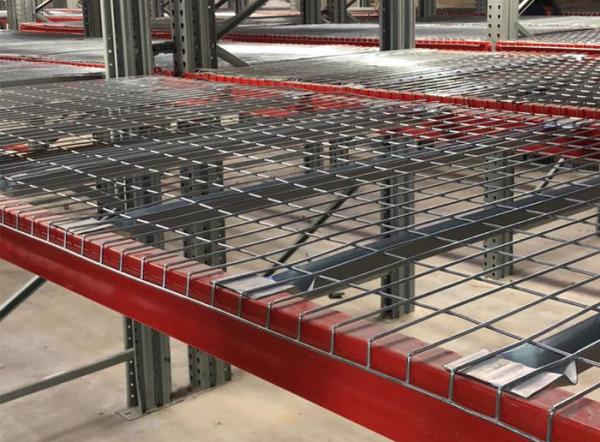

US Standard Teardrop Heavy Duty Steel Pallet Rack With Wire Decking
Teardrop Heavy Duty Selective Steel Pallet Rack

Selective pallet racking is a material handling storage aid system designed to store materials on pallets (or “skids”).

Although there are many varieties of pallet racking, all types allow for the storage of palletized materials in horizontal rows with multiple levels. Forklift trucks are usually an integral part of any pallet rack system as they are usually required to place the loaded pallets onto the racks for storage. Since the Second World War, pallet racks have become an essential and ubiquitous element of most modern warehouses, manufacturing facilities, retail centers, and other storage and distribution facilities.

Selective pallet racking may be configured to store products at considerable heights. It is economical, durable, easy to install, and levels are easily adjustable for a temporary or permanent setting. Available in light, medium and heavy duty.

Heavy duty pallet rack shelf

Selective Pallet Rack, also called Heavy Duty Rack, is not only subject to storing various goods in small quantity, but storing uniform commodities in large quantity as well. It works with forklift or stacker.

Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking

Features

1. Taking use of cold-rolled steel uprights to improve the load capacity
2. Space between beams can be adjusted by 75mm pitch up and down
3. Assembled frame structure with safety facilities; easily assembled and disassembled; conveniently maintained and spare parts changed
4. Surface treated by epoxy powder coating with high corrosion resistance
5. It can be worked with pallet supports, back spacers; panels; upright protectors; frame guards and back mesh according to requirements.


Uprights (t=1.8/2.0/2.3/2.5/3.0mm)

Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking


Kaku Beams

Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking

Technical data for pallet rack system

Product name Teardrop Heavy Duty Steel Plate Rack, rack pallet for warehouse
Color RAL system Material Q235B steel
Usage Warehouse Storage Certification RMI/CE/ISO/TUV/AS4084-2012
Size Customer Size Structure Assembled Freely
height maximum 12000mm Capacity maximum 4500kg/level
width 1350mm - 3900mm Thickness 1.5mm-3.0mm
Style Heavy Duty Selective Shelf Packing Customers'Request
Brand HUICHEN Port Qingdao

The most universal system for direct and single access to each pallet. The optimal solutions for those warehouses with palletised products and a wide variety of SKUs.

The working aisle measurement between each rack and the rack height depends upon the characteristics of the forklift trucks or lifting devices, pallet size and the height of the warehouse itself.

Advantages
Total stock control: each storage space is taken up by a single pallet.
Maximum adaptability to any load type both in terms of weight and volume.
It can be combined with longspan beams for manual selection of goods.
In order to store a greater number of pallets double-deep racks can be installed enabling one pallet to be stored in front of another on each side of the aisle.

Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking

Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking

Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking

Teardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire DeckingTeardrop Upright Heavy Duty Pallet Racks Corrosion Protection With Wire Decking
