Upright Beam Of Steel Pallet Storage Metal Radio Shuttle Rack Q235 Q345

Upright beam of steel pallet storage metal radio shuttle rack is a new generation of high density storage racking system which max your storage utilization and working efficiency.

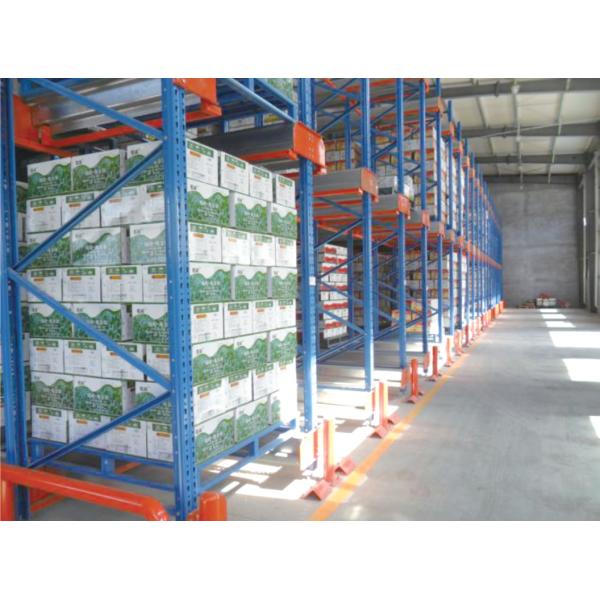

Radio Shuttle racking system is a high-density storage system composed of racking, radio shuttle and forklift;

Radio shuttle running on the special rail, and can be increased or decreased to raise and lower the pallet cargo, and return it to position.

The shuttle adopts radio remote control, and equipped with battery to provide power, and running forward and backward with four wheels.

The radio shuttle racking system is of high dense storage rack system with high investment cost.

It suitable for storage of large quantities and single species of goods for FIFO or FILO. But there is special requirement for the bottom surface of the pallet.

Space utilization rate can reach 80%.

General introduction of Warehouse Bulk Storage Radio Pallet Shuttle Rack

Core Functions:

1. Radio Shuttle Mover is one key vehicle for horizontal Movement in high Density warehouse storage system.

2. Function as radio shuttle carrier for Board the Radio Shuttle Cart and change aisles of the racks.

3. Working though single-unit equipment operation to achieve pallet to transport in/out the racks.

4. Auto operation by softwares for warehouse management and system controllment.

5. Storage Modes: FIFO(First In First Out), LIFO(Last In First Out)

Advantages:

• Radio Shuttle Mover System could achieve 24 hours’ auto working to unmanned warehouse.

• Unique technology, radio shuttle mover could be changed levels automatically.

• Sophisticated equipment with advanced design concept, Fast Speed and accuracy positionings.

• Radio shuttle carrier could charge the power battery of Radio Shuttle Cart during movement.

• Movements in ternate directions are absolutely independent.

• Powerful widenable system, could increase or reduce the quantities of radio shuttle carts and Radio Shuttle Carrier to solve warehouse storage working in peak time or low ebb time.

Specification of the Radio Shuttle Cart:

Here in after data sheet is based on the size of pallet 1200mm

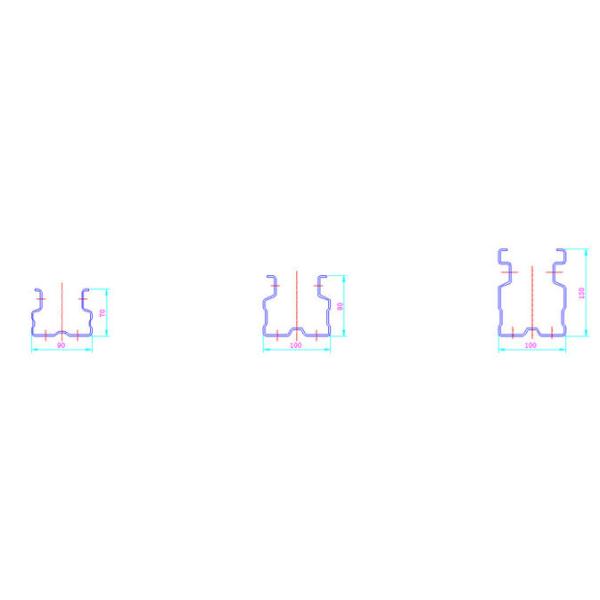

Upright & Bracket

Application:

Food, beverage, chemical, tobacco and other single species, large quantities and relatively single item product.

Date critical cargo such as fruit and food can also be stored.

Required information from customers for quick quote:

1, the AUTOCAD drawing or draft drawing of warehouse or racking.

2, the size of the warehous, length, height, and width.

3, how many layers of the racking?

4, your pallet size.

5, max weight of pallet with cargo on.

6, special color requirement.

Production Of Radio Shuttle Rack

Main Products

Why Choose HUICHEN?

1. 17 years experience on manufacturing warehouse racking;
2. All types of racking comply with ISO9001, CE etc;

3. Have successfully done thousands of racking project;
4. Factory direct sale price, no cost for middle distributor.
Really important to choose a reliable warehouse racking supplier!!!
