Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System
Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System
Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System
Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System
Specifications
Brand Name :
Huichen
Model Number :
HC Radio Shuttle Rack
Certification :
ISO9001, CE
Place of Origin :
Qingdao, Shangdong, China
MOQ :
1 x 40' container
Price :
Reconsidered
Payment Terms :
L/C, T/T
Supply Ability :
300 Containers Each Month
Delivery Time :
25 Working Days
Packaging Details :
Export Packing
Type :
Automatic Retrieval System
After Sale Service :
Available
Welding :
Robot Welding
Weight Capacity :
1000-3000kg/pallet
Surface treatment :
Outdoor Powder Coating
Technique :
Cold Rolled
Description

Customized Manufacturer Automatic Warehouse Rack High Quality Pallet Radio Shuttle

Shuttle tray storage systems shipments to the operation and storage space into a new concept, this new storage systems to more powerful operational capability and storage than the traditional way and enable it to fully and flexibly to the use of space. This set of storage solutions with a certain number of groups from the trolley frame and the pallet rack to tray trolley storage, transport and storage system. Space utilization rate of more than 80%!

Radio shuttle racking is constructed similar as drive in racking and push back racking with compactor moving automatically on the guide rails picking or loading pallets. Compared with drive in racking, radio shuttle system would be more stable and high efficient, and compared with push back racking, this system would be much safe without leaning degree. So radio shuttle racking system is name as safe, easy operation and high efficiency, and would be more suitable for cold storage warehouse.

Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System

Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System

Components:

Frame

Though push back racking is stable system for structure, we also use killed steel for upright to meet with requests of low temperature.
Compactor controlled by radio devices, compactor could automatically pick or load pallets according to the pre-arranged order, so that the driver could have enough time to pick or load more stored pallets to improve the work efficiency. The compactor could load 1000kgs, work in warehouse of -30~40, speed to 0.8m/s with four 12V 26Ah batteries. The compactor is made with high tensile steel for durable usage. The cover could be easily disassembled for maintenance of exchanging batteries.

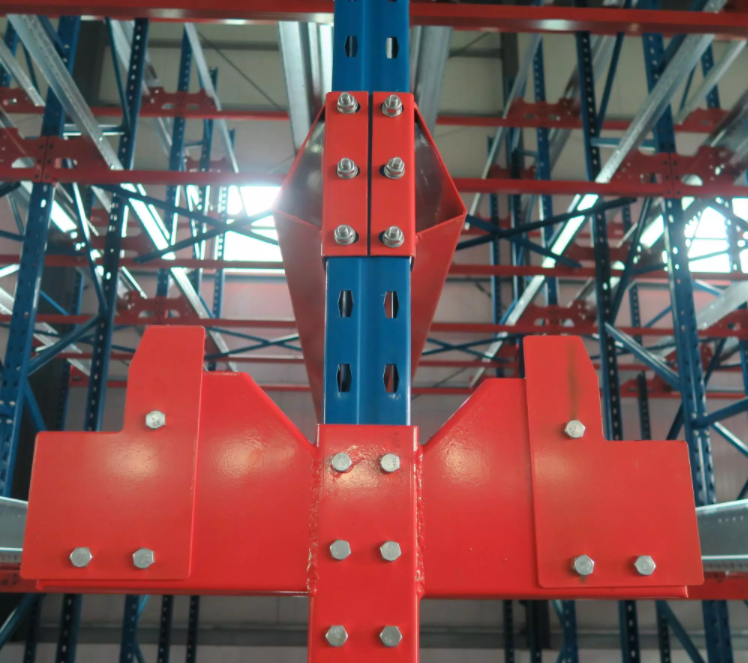

Beams

Made with steel rolls by molds, beams are welded with connectors for easy assembly to upright and installed to improve the strength and stability of racking system. Support rails would be fixed to the beams by special brackets.

Support rails

Made with zinc-coated steel by rolling machines, rails are designed to support compactor and pallets, also provides flow routes for compactor. More important, zinc-coated rails would never pollute the compactor wheels with smooth flow and low noise.

Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System

Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System

Advantages

Radio Shuttle Cart is a fully programmable deep lane storage and retrieval system used to transport pallets within a racking structure for maximum storage and throughput of bulk stored items. Radio shuttle rack system allows for more pallets to be stored in a given area when compared to normal static rack .It also minimizes damage to the rack because the forklift does not have to travel into the racking, as is the case with drive-in rack. Accessibility is increased because all the levels can be accessed at any time. In a drive-in rack system the bottom level must be cleared first in order to be able to access the higher levels.

1
  • Goods can be stored in the warehouses with highest density and low cost.
2
  • Storage Style: FIFO or FILO, Optional tunnel picking.
3
  • As each pallet only needs to be positioned at the beginning of the deep lane storage it increases efficiency within operations.
4
  • Better safety and anti-seismic performance than drive in racks.
5
  • Technical Specifications.
6
  • Nominal Loading capacity : 500 KGS~1200KGS
7
  • Running Speed: Max.1.1M/S
8
  • Operation Methods: To be operated manually or vehicle-mounted or Radio remote control
9
  • Temperature in the freezer:-30°C


Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System

Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System

Characteristic

· 100% accessibility to individual pallets

· Easy picking lower levels

· Good storage density

· Easily installed and repositioned

· No special lift trucks required

Performance of Racking System Bulk Storage Selective Pallet Rack
Selectivity of individual pallets 40% 100%
Use of floor space 80% 50%
Utilization of pallet posting 70% 98%
Speed of access and throughput 80% 80%
Stock rotation (FIFO) 40% 60%
Use of building height 30% 80%
Efficient Bottom Level Case Picker No Yes
Ease of relocation 100% 100%
System adjustability 100% 100%
Specialist handling equipment No No

Robot Welding Radio Shuttle System , Warehouse Automatic Retrieval System

Shuttle

Radio Shuttle Rack has a battery-operated motor inside that can run for a full 8-hour shift before it needs recharging. It also has censors that can pick up its location within the rack and in relation to the pallet it needs to deposit or retrieve thereby reducing the monitoring by an operator. It has a robust shell with easy access to parts that needs maintenance. All the components used are locally sourced "off the shelf" components to ensure availability in case of a breakdown.

Radio Shuttle cart can provide the perfect solution to dense storage situations. One of the conventional methods would be to install drive in racking which is great at space utilization but can sometimes inhibit efficiencies when storing the deep pallets as well as potential damage to uprights.

Radio shuttle rack gives the same space utilization but removes the inefficiencies and risk of damages. All the forklift operator needs to do is place a pallet onto a shuttle position and activate the shuttle and it does the rest of the work, freeing up the operator to complete other tasks.
