Semi Automatic Pallet Shuttle System , Compact Storage System W1000 X D1200mm Size
Semi Automatic Pallet Shuttle System , Compact Storage System W1000 X D1200mm Size
Semi Automatic Pallet Shuttle System , Compact Storage System W1000 X D1200mm Size
Semi Automatic Pallet Shuttle System , Compact Storage System W1000 X D1200mm Size
Specifications
Brand Name :
Huichen
Model Number :
HCCS-12-10-15
Certification :
ISO9001
Place of Origin :
Qingdao,China
MOQ :
1 x 40' container
Price :
USD 30-100 PER PALLET LOCATION
Payment Terms :
L/C, T/T
Supply Ability :
300 container per month
Delivery Time :
within 30 days after the deposit
Packaging Details :
Export packing
name :
Radio shuttle racking
Material :
Q235 or Q345 High Grade Steel,Steel Q235 & ss400
Height :
1200-8000,Customized
Use :
Warehouse Rack,Industrial
Feature :
Corrosion Protection
Width :
1200-1500
Weight capacity :
500-2000kg/pallet
Depth :
Customized,800-1500mm
Description

Semi-automatic compact pallet shuttle system W1000 x D1200mm SS400/Q235B

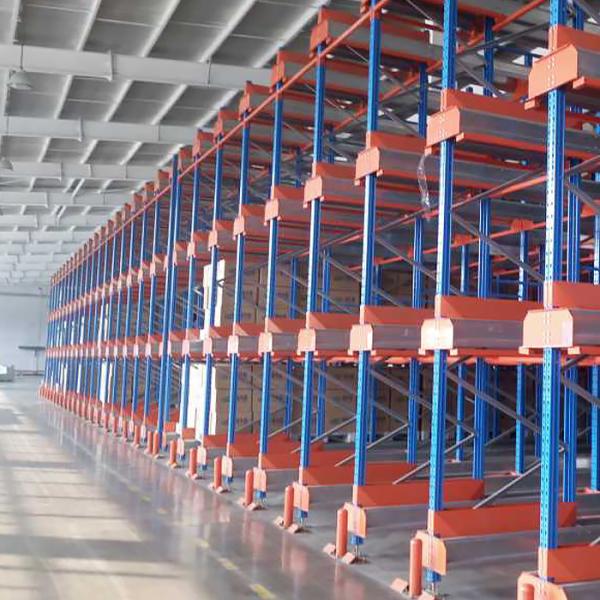

A compact storage system in which a shuttle driven by an electric motor runs on rails inside the storage channels, replacing forklifts, considerably reducing operating times and enabling items to be grouped by channels rather than complete lanes.

The Pallet Shuttle follows orders sent by an operator using a tablet with Wi-Fi connection, depositing the load in the first free placement location in the channel and compacting the pallets as much as possible. By removing the need to drive forklifts into the lanes, storage capacity is increased in terms of depth, the risk of accidents and damage to the racks is negligible, operator movements are optimised and warehouse operation is modernised and made more flexible.

Semi Automatic Pallet Shuttle System , Compact Storage System W1000 X D1200mm Size

Shuttle Shelving is a great option for high density storage if you have large volumes of pallets. Lanes of up to 50 pallets in depth can be stored in both a First In, First Out (FIFO) and First In, Last Out (FILO) configuration. The remote-controlled shuttles carry goods in and out of deep storage tunnels, leaving your operators free to perform other tasks.

It is an ideal solution for companies with a high volume of pallets per item and intensive loading and unloading activity.

Specification of the radio shuttle cart:

Specification Rate loading Depth Width
HCCS-12-12-15 1500kg 1200mm 1200mm
HCCS-11-11-10 1000kg 1100mm 1100mm
HCCS-14-12-15 1500kg 1400mm 1200mm
HCCS-12-10-10 1000kg 1300mm 1000mm
HCCS-13-11-15 1500kg 1300mm 1100mm

Hereinafter data sheet is based on the size of pallet 1200mm

Serial Tech data Size(mm)
A Pallet width 1200
B Upright inside size 1360
C Shuttle cart rail 1010
D Upright size 90/100/110/120
E Bottom height 420
F Height based on the fact
G Min height between cargo and pallet 375

Semi Automatic Pallet Shuttle System , Compact Storage System W1000 X D1200mm SizeSemi Automatic Pallet Shuttle System , Compact Storage System W1000 X D1200mm Size

Product feature and application of the radio shuttle racking:

Radio Shuttle shelving is particularly well-suited to:

※ Storing of a large number of pallets.

※ Either FIFO or LIFO storage.

※ Warehouses with limited human resources, as the shuttle does a big portion of the work.

※ Ensuring efficient retrieval times, as the FLT travel distance is reduced.

Benefits & Features


Greater diversification: each channel can be used to store a different item.
High productivity: increased flow of incoming and outgoing goods.
Greater capacity: Storage of up to 40 m deep
Highly cost-effective, thanks to the reduction in operating costs.
Decreased incidents and maintenance costs.
Many advanced functionalities can be easily controlled from the tablet.

Advantages

Technology applied at top operating speeds

Save space

  • Increased number of pallets in depth: storage channels can exceed 40 m in height; the limit is imposed by the handling means used.
  • The system works with minimal clearances between levels, which allows for high-density storage.
  • Through the use of sensors the shuttles can position loads intelligently, eliminating empty spaces in the storage lanes. As such, the effective capacity of the warehouse (which takes into account flows of goods in and out of the warehouse) reflects its physical capacity.

Save time

  • Loading and unloading times are reduced, since the operator does not need to work inside the lanes.
  • Movement speed of the shuttle of 90 m/min when empty, or 45 m/min when loaded.
  • Load lifting cycle of just 2 seconds.
  • On being given a single command, the shuttle can fill or empty a whole lane.

Increased productivity

  • Increased flow of goods in and out of the warehouse.
  • Unlike conventional drive-in systems, references can be grouped by channel, rather than requiring a full lane, which allows for greater diversification.
  • Optimisation of operator movements. Product-to-person system: this is the load that moves to the operator.
  • While the Pallet Shuttle carries out a command, the operator can collect another pallet, thus achieving continuous movement.
  • Depending on temperature and load conditions, the shuttle has an operational range of up to 10 hours, working at full capacity.
  • The lithium batteries are easily accessible and have fast connections that eliminate the need for cables, so that they can be changed quickly without interrupting the operation cycle.
  • Elimination of errors.
  • The system is easy to use and easy to maintain.
  • A single tablet can control up to 18 shuttles.
  • Inventory function: The shuttle can take stock of the number of pallets stored in a channel.

Save money

The result of the benefits mentioned previously, together with the consumption of energy, is a reduction in costs, making Pallet Shuttle one of the most cost-effective compact storage systems.

Versatility

  • The shuttle has built-in sensors that enable different types of pallets to be detected and handled.
  • The Pallet Shuttle models 1012 and 1212 are able to work with pallets of different widths and sizes. The 1012 model can be used to handle Euro-pallets of 800 or 1,000 mm in width. The 1212 model can be used to handle Euro-pallets of 800, 1,000 or 1,200 mm in width.
  • All shuttles can operate in LIFO or FIFO mode. The operator uses the tablet to select the mode he wishes to work with.
  • The shuttle platform is designed to carry pallets with a buckling limit of up to 25 mm.

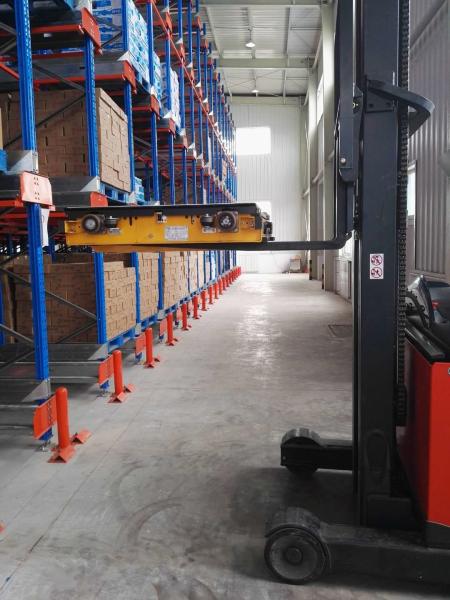

  • Any type of handling equipment can be used to carry the shuttle.
  • Up to 1,500 kg per pallet can be handled.
  • It is possible to install Mecalux's Easy WMS Warehouse Management Software on the tablet.
  • The system is scalable. Over time, the number of shuttles can be increased easily as the need to increase productivity arises.

Application:

Food, beverage, chemical, tobacco and other single species, large quantities and relatively single item product.

Date critical cargo such as fruit and food can also be stored.

Semi Automatic Pallet Shuttle System , Compact Storage System W1000 X D1200mm Size

Semi Automatic Pallet Shuttle System , Compact Storage System W1000 X D1200mm Size
