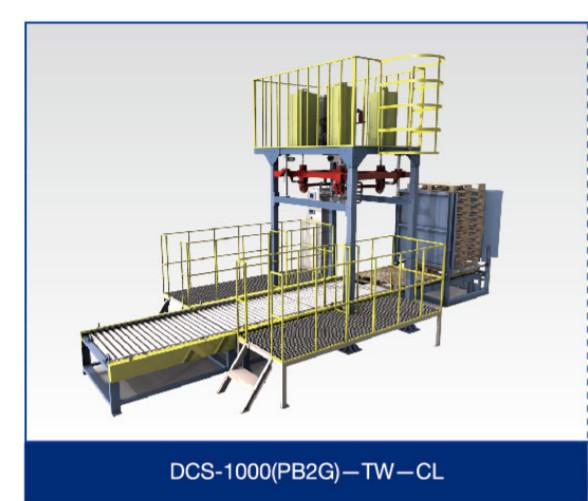

DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine
DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine
Specifications
Brand Name :
Sanhe
Model Number :
DCS-1000 (PB2G)-TW-CL Ton Bag Packing Machine
Certification :
ISO9001:2015, CE
Place of Origin :
Suzhou
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 Sets Per Month
Delivery Time :
Negotiable
Packaging Details :
Wood Pallet
Product Name :
Automatic Weighing Packing Sealing Machine
Packing Speed :
10-60 bags per hour
Air source consumption :
6 Kg
Accuracy :
Generally (+/- ) 0.2%
Suitable for Material :
Granular / Powder / flake materials
Weighing range(kg) :
500-2000 kg
Description

DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine

Feeding type : by screw

A. What is Ton Bag Weighing Packing Machine :

Ton Bag Weighing Packing Machine consists of weighing unit, feeding unit , Unloading mechanism,

conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.

Suitable Material : Granular / Powder / flake materials

Suitable Packing Container : Bulk Bag

Packing speed 10-60 bag / hour
Capacity range 500-2000 kgs / bag
Accuracy Generally+-0.2% (note:special materials shall depend on the industrial standard)
power voltage 380VAC 50Hz
power 7.5KW
Positive air pressure 0.5-0.8MPa
Negative air pressure -0.075~-0.093MPa
temperature -10-40ºC
relative humidity ≤80%

Ton Bag Weighing Packing Machine FAQ :

Q1: How could I choose the right packing machine?

A: We have various item of packing machine to suit for pack different materials(products), just let us know your product and requirement, we will choose the suitable item and make a drawing for you to confirm. Also your customize design are availbale, we have nearly 20 person engineers team and R&D team.

Q2: What's service you can provide if we buy your machine?

A:

1, One year quality guaranteed, during this guarantee period, no matter what’s kind of parts damaged, we will provide free change for you. All equipment for more than a year warranty, exchange of damaged parts, only charge a cost of spare parts.

2, We will provide you the guide service on the operation of the machine.

3, If required, we will dispatch technician to your country for installation guide, commissioning& adjusting the machine and training the workers on conditon that you need affords all cost from China to your company including food, accommodation, transportation etc and extra USD 190 per day per perople .

Q3: What is your terms of delivery?

A: EXW, FOB, CFR, CIF

Q4: What's your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q 5: Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q6: How about your delivery time?

A: Generally, it will take 110 days for semi-automatic machine, 150 days for full automatic line, after receiving your advance payment. The specific delivery time depends on the

items and the quantity of your order.

DCS-1000 (PB2G)-TW-CL Ton Bag Weighing Packing Machine



Function table of the Big bag packer :

DCS-1000(GB7G)-BW

DCS-1000(GB7G)-BW-TV

DCS-1000(PB2G)-BW-ML

DCS-1000(PB2G)-TW-CL

Scope of application

Suitable materials

Granular material with fine flowability

Granular and columnar material or powder material with fine flowability

Granular and columnar material or powder material with fine flowability

powder and schistose material

Feeding type

Gravity

Gravity

Screw

Screw

Alternative feeding type

Vibrating , belt

Vibrating , belt

Vibrating , belt, airflow

Vibrating , belt, airflow

Technical parameters

Weighing range

( Kg)

 1500 1500 1500 1500
Packing speed(bag/H) 10-40 10-60 5-20 5-20
Packing Accuracy Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)
Control function
Automatic tare ○ ○ ○ ○
Automatic quick and slow feeding ○ ○ ○ ○
Automatic free fall compensation ○ ○ ○ ○
Automatic minus deviation ▲ ▲ ▲ ▲
Automatic over weight alarms ○ ○ ○ ○
Automatic self diagnosis failure ○ ○ ○ ○
Manual/Automatic mode conversation ○ ○ ○ ○
Communication port ▲ ▲ ▲ ▲
Regulatory function
Manual adjusting the height of bag ▲ ▲ ○ ○
Automatic adjusting the height of bag ▲ ▲ ▲ ▲
Manual adjusting the width of bag ▲ ▲ ▲ ▲

Important auxiliary function
Automatic blow bag in advance function ▲ ▲ ▲ ▲

Arch break function of hopper

 × × ○ ○

pothook automatic release function

 ▲ ▲ ▲ ▲

Vibration at the top of the bag

 × ○ × ○

Vibration at the bottom of the bag

 ▲ ▲ ▲ ▲

Powder protection

Inflatable seal

 ▲ ▲ ▲ ▲

Negative pressure dusting(not contain duster)

 ○ ○ ○ ○

Valve for leak-proof

 ▲ ▲ ▲ ▲

Vibrating leak-proof function

 ▲ ▲ ▲ ▲

Safety protection

Electrostatic grounding

 ▲ ▲ ▲ ▲

ionic wind remove static

 ▲ ▲ ▲ ▲

Stop packing when lose power

 ○ ○ ○ ○

Emergency stop

 ○ ○ ○ ○

Ex-proof

 ▲ ▲ ▲ ▲

Mark: “○”is standard function；“▲”is choose function ；“×”is not has function

Main sub-suppliers:

Name OF Outsourcing Sub-suppliers
Weighing Controller Uniplus F701 / Zhi Mei or Jie Man
Load Cell Mettler Toledo / Zhong Dian Hang Ce
PLC Mitsubishi

Touch panel

( option )

 Mitsubishi

Fold edge sewing machine

( option )

 De chao
Pneumatic Equipment FESTO or SMC or airtac
Solenoid valve FESTO or SMC or airtac
Photoelectric switch Autonics
Metal detector ( option ) METRON German
Robot ( option ) FUJI EC-102
Motor Wan Nan
Sewing machine ( option ) De Chao
Electric cabinet Tong Ke
General Electric Component SCHNEIDER

Utilities ( provided by buyer )

1. Power:

AC380V±10％；50Hz±2%(three phase and five wires)；

2. Compressed Air:

Pressure: 0.55~0.7 Mpa；

Consumption: 0.3N m3/min；

3. Temperature: -10- +50(℃)

4. Relative humidity: ≤90% (no coagulation water)

5. De-dusting

Negative pressure:6-8 pa

Blowing rate: 1800m³/H

Advantage : Fast packing speed , high precision, less dust

Warranty : 1 year

After Warranty Service:

Video technical support, Online support, Spare parts, Field maintenance and repair service

Main specialty.

*Suit for granule and powder material use big bag packing.

*Can made into semi-packing and palletizing line with pallet magazine, conveyors, weight checker, rejecter etc.

Please Send us The Details for The Packing Scale Machine Plan :
1. Name of Material to Be Filled in Bag?
2. Weight Capacity of Single Bag ?
3. How Much Bag Fill Per Hour?
4. Your Materials Characte?
95% of China Silica (white carbon black) factory use our packing scale machine.
