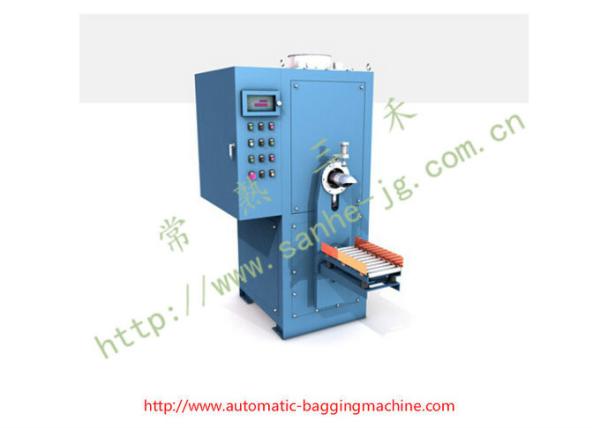

Valve Bag Filling Seal Mouth Machine 30-120 Bags Per Hour 0.2% Accuracy
Valve Bag Filling Seal Mouth Machine 30-120 Bags Per Hour 0.2% Accuracy
Specifications
Brand Name :
Sanhe
Model Number :
DCS-25PV2 (screw type)
Certification :
ISO9001:2015, CE
Place of Origin :
Suzhou
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
90 Sets Per Month
Delivery Time :
Negotiable
Packaging Details :
Wood Pallet , the size of pallet to be confirmed
Name :
Valve Bag Weighing Packing Machine
Suite for material :
Powder / thin granule
Packing speed :
30-120 bags ( 25 kg/bag )
Accuracy :
+-0.2%
Power :
380V; 50Hz±2%(three phase and five wires)；3 KW ,
Automatic level :
Semi Automatic
Machine height :
1800 mm
Features :
Semi Automatic, High Precision And Less Dust
Description

Valve Bag Filling Seal Mouth Machine 30-120 Bags Per Hour 0.2% Accuracy

A. What is 25 kg electronic packing scale:

Electronic packing scale consists of weighing unit, sewing machine, conveying device, pneumatic system, dust removal system, quantitative packing control, etc. the whole weighing process is controlled by PLC and completed automatically.

B. Working principle of 25 kg electronic packaging scale:

When the electronic packaging scale enters the automatic operation state, the weighing control system opens the feeding door to start feeding, which is a fast and slow feeding mode; when the material weight reaches the fast feeding setting value, stop the fast feeding and keep the slow feeding; when the material weight reaches the final setting value, close the feeding door to complete the dynamic weighing process;

At this time, the system checks whether the bag clamping device In the predetermined state, when the packaging bag has been clamped, the system sends a control signal to open the unloading door of the weighing bucket, and the material enters the packaging bag.

The bag clamping device will be released, and the packaging bag will fall automatically; after the packaging bag falls, the sewing bag will be carried out and transported to the next station. It operates automatically in such a cycle.

C. Generally, a packing & palletizing line includes: Electric Cabinet, sewing machine,Sewing conveyor, Bag push machine, Reshapen conveyor,Metal detector,Weight checker,Bag Rejecter,Ink-jet printer conveyer,Ink-jet printer ,Pallet magazine,Palletizing conveyor ,Robot, Wrapping Machine ,Finished palletizing conveyor.

D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine

Main specialty :
Valve bag packing for Powder and ultrafine powder.
 Can be twin-type packer
 Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
The parameter and function :
DCS-25PV2 (screw type)
Scope of application
Suitable materials Powder and thin granule
Suitable packing container Single Screw
Technical parameters
Weighing range(Kg) 25 Kg per bag
Packing speed(bag/H) 30-120 bags per hour
Packing Accuracy

Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)


Product Characteristics :

Easy to operate and use

Bag-clamp equipment is advanced, material can be fully filled

Fill material system has material-stop equipment, accuracy high

Control, work parts all use imported parts, stable and reliable with sewing machine

Heat-sealing machine optional

Main sub-suppliers:

Name OF Outsourcing Sub-suppliers
Weighing Controller Uniplus F701 / Zhi Mei or Jie Man
Load Cell Mettler Toledo / Zhong Dian Hang Ce
PLC Mitsubishi
Touch panel ( option ) Mitsubishi
Fold edge sewing machine De chao
Pneumatic Equipment FESTO or SMC or airtac
Solenoid valve FESTO or SMC or airtac
Photoelectric switch Autonics
Metal detector METRON German
Robot FUJI EC-102
Motor Wan Nan
Sewing machine De Chao
Electric cabinet Tong Ke
General Electric Component SCHNEIDER

Utilities ( provided by buyer )

1. Power:

AC380V±10％；50Hz±2%(three phase and five wires)；

2. Compressed Air:

Pressure: 0.55~0.7 Mpa；

Consumption: 0.3N m3/min；

3. Temperature: -10- +50(℃)

4. Relative humidity: ≤90% (no coagulation water)

5. De-dusting

Negative pressure:6-8 pa

Blowing rate: 1800m³/H

Advantage : Fast packing speed , high precision, less dust

Our Service :

1. We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.

2. OEM, Customized can be all accepted.

3. Contact us any time when you feel free.

Please Send us The Details We Required :
1. Name of Material to Be Filled in Bag?
2. Weight Capacity of Single Bag ?
3. How Many Bags Fill Per Hour?
4. Your Materials Characte?
