Valve Bag Semi Automatic Weighing Filling Machine ( Air-Flow Feeding Type ) 60-200 Bags Per Hour Accuracy 0.2%

A. What is the big bag weighing packing machine ?

It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,

B. Discription of big bag weighing packing machine ?

Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.

C. Application :

Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.

D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine

Name: DCS-25PV3 Powder’s Valve Bag Packer ( Pneumatic Feeder Type ) Big Bag Weighing Packing Machine

1.Scope of application:
1)Applicable material:

Non-sticky, loose powder.

2)Applicable filling containers
Paper bag , film or woven bags with breathable micropores .

2. Technical parameters :

3.Functions and Characteristics :

1) Gross wight type;

2) Pneumatic Feeder;

3) High weighing accuracy is guaranteed by the load cell and digital weighing controller;

4) High degree of automation, automatic taring , automatic filling, automatic weighing, automatic dedustingiing, easy to operate;

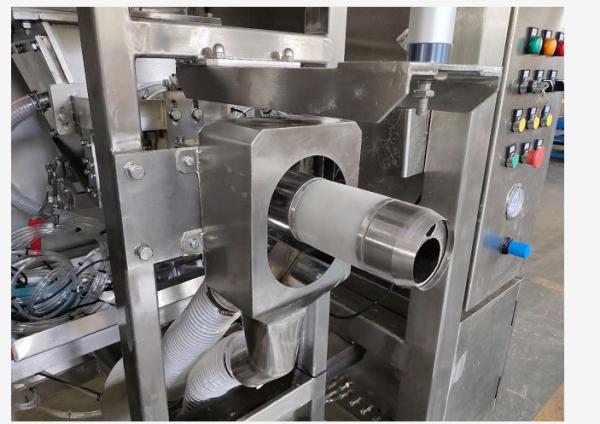

5) A inflatable rubber pipe is sleeved on the filling nozzle of the valve bag packaging machine. When the filling mouth of the empty valve bag is placed on the filling nozzle, the rubble pipe sleeved on the filling nozzle begin to inflate and expand automatically to seal the filling mouth of the valve bag completely to prevent dust leakage during filling;
