120 Bags/Hour Carbon Black 25Kg Automatic Bagging Machine Quantitative Filling Machine
120 Bags/Hour Carbon Black 25Kg Automatic Bagging Machine Quantitative Filling Machine
Specifications
Brand Name :
Sanhe
Model Number :
DCS-25PV3 Carbon black packing machines
Certification :
ISO9001:2015. CE
Place of Origin :
Suzhou
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
90 Sets Per Month
Delivery Time :
Negotiable
Packaging Details :
Standard export package
Product Name :
Packing Machine
Brand :
Sanhe
Drive :
Electric
Port :
Shanghai
Condition :
New
Capacity :
80-120 bags per hour
Weighing accuracy :
50-200g @25kg/bag
Description

120 Bags/Hour Carbon Black 25Kg Automatic Bagging Machine Quantitative Filling Machine

120 Bags/Hour Carbon Black 25Kg Automatic Bagging Machine Quantitative Filling Machine

120 Bags/Hour Carbon Black 25Kg Automatic Bagging Machine Quantitative Filling Machine

A. What is the DCS-25PV3 Carbon black packing machines ?

It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,

B. Discription of DCS-25PV3 Carbon black packing machines ?

Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.

C. Application of DCS-25PV3 Carbon black packing machines:

Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.

D. According to the different styles of packaging bags, it can be divided into open mouth bag packing machine and valve type bag packing machine

Technical data :
DCS-25PV3 ( airflow type )
Scope of application
Suitable materials Powder and thin granule / Carbon black
Suitable packing container valve type bag
Technical parameters
Weighing range(Kg) 25 kg
Packing speed(bag/H) 80-120 bags per hour
100Packing Accuracy Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard) ; 50-200g @25kg/bag


Our Service .

1. We can provide "one-stop purchasing" or "package program" system solutions and owns professional manufacturing equipment as well as a full range of technical support and after-sale service.

2. OEM, Customized can be all accepted.

3. Contact us any time when you feel free.


FAQ .

Q: Can your machine be customized ?

A: Yes, we are a professional manufacturer specilized in palletizing robot, packaging machine, conveyor etc. for more than 20 years and we have a strong design & technical team. We can design and manufacture as per your requirements.


Q: How to get an accurate quotation ?

A: Please provide us the detail of the workpiece such as drawing and dimensions.


Q: What’s the shipping cost from China to your country ?

A: We can send machine to your port by sea or other term you need. Please kindly tell us your nearest port or address. We have reliable shipping agent to ensure the safe, convenient and timely delivery.

Minimum order quantity: 1 set, FOB Shanghai

Delivery time: fast delivery after the deposit.

Warranty: 12 months following delivery. We offer online service 24 hours all day long.

You can contact us any time, if urgently, please call us.


Q: Do you offer Installation & debugging?

A: Our engineers are available to service machinery overseas to help customers to solve machine problems.

Q: What’s policy for guarantee and broken parts ?

A: As for machine products, our company provides 12 months for all mechanical parts with the exception of electrical and electronic parts and those subjects to normal wear and tear. Meanwhile, the guarantee starts from the shipment (B/L date). The guarantee is intended limited to the replacement of the broken part after checking the construction fault. The inspection of the causes of the trouble or the breakdown of the parts is exclusively up to the manufacturing company. All in all, our company can offer you assured products.

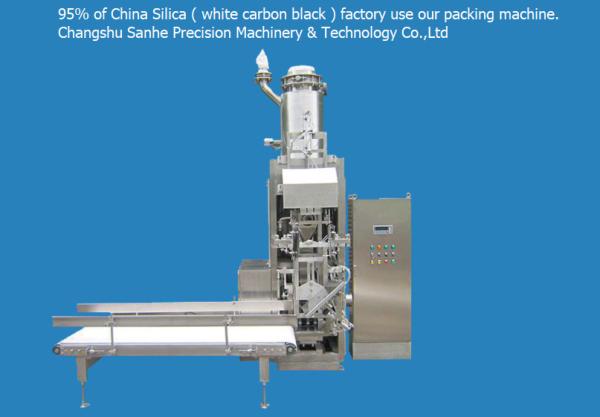

95% of China silica ( white carbon black ) factory use our packing scale machine.

part of our customers:
EVONIK
WACKER
BAYER
ELIOKEM
SOLVAY
BASF
LANXESS
DANISCO
LYNAS

120 Bags/Hour Carbon Black 25Kg Automatic Bagging Machine Quantitative Filling Machine

120 Bags/Hour Carbon Black 25Kg Automatic Bagging Machine Quantitative Filling Machine

Valve Bag Packer

The parameter and function table of the valve bag packer:

DCS-25PV1(1)

(exhausting type)

DCS-25PV1(2)

(screw type)

DCS-25PV1(3)

(airflow type)

DCS-25PV1(5)

(horizontal impeller)

DCS-25PV1(6)

(vertiacl impeller)

Scope of application

Suitable materials

Powder and ultrafine powder of good Air affinity

Powder and thin granule

Powder and thin granule

Powder and ultrafine powder

Powder and ultrafine powder

Suitable packing container

 Upper and lower spiral air supply single screw air flow Horizontal impeller Vertical impeller

Technical parameters

Weighing range(Kg)

 10-50 10-50 10-50 10-50 10-50

Packing speed(bag/H)

 30-180 30-120 30-200 30-250 30-250

Packing Accuracy

Generally (+/- )0.2%(Note: special materials shall depend on the industrial standard)

Control function

Automatic tare

 ○ ○ ○ ○ ○

Automatic quick and slow feeding

 ○ ○ ○ ○ ○

Automatic free fall compensation

 ○ ○ ○ ○ ○

Automatic minus deviation

 ▲ ▲ ▲ × ×

Automatic over weight alarms

 ○ ○ ○ ○ ○

Automatic self diagnosis failure

 ○ ○ ○ ○ ○

Manual/Automatic mode conversation

 ○ ○ ○ ○ ○

Communication port

 ▲ ▲ ▲ ▲ ▲

Regulatory function

Manual adjusting the height of bag

 ○ ○ ○ ○ ○

Suit for open and valve bag function

 ▲ ▲ ▲ ▲ ▲

Important auxiliary function

Blow bag function in advance

 ○ ▲ ○ ○ ○

Arch break function of hopper

 ○ ○ ○ ○ ○

Vibration at the bottom of the bag

 ○ ○ ○ ○ ○

Powder protection

Inflatable seal

 ▲ × ▲ × ×

Negative pressure dusting(not contain duster)

 ○ ○ ○ ○ ○

Automatic blow valve mouth

 ○ × ○ ▲ ▲

Safety protection

Electrostatic grounding

 ▲ ▲ ▲ ▲ ▲

ionic wind remove static

 ▲ ▲ ▲ ▲ ▲

Stop packing when lose power

 ○ ○ ○ ○ ○

Emergency stop

 ○ ○ ○ ○ ○

Ex-proof

 ▲ ▲ ▲ ▲ ▲

Mark: “○”is standard function；“▲”is choose function ；“×”is not has function

main features:

*valve bag packing for Powder and ultrafine powder.

*Can be twin-type packer

*Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
