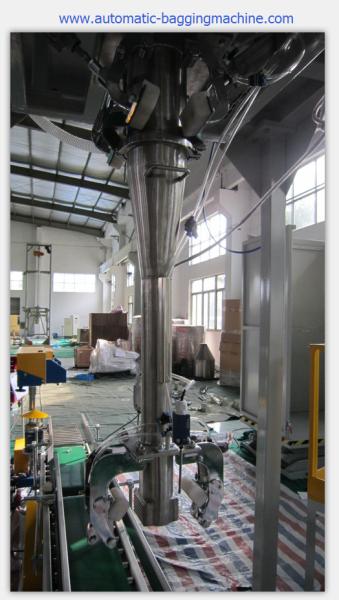

DCS-25FW Automatic Bagger 25kg Bagging Machine Weighing Filling Packing Scale

Broad Category: Open Mouth Bag Packer

Name: DCS-25FW/DCS-25F Powder Open Mouth Bag Packer (Gross Weight Type/Net Weight Type)

A. What is the 25 kg packing machine ?

It is used to transport materials (normally powder or granule ) from the silo to the packaging container, and it also has the function of weighing,

B. Discription of 25 Kg packing machine ?

Electronic quantitative packaging scale is a combination of electronic scale and automatic control. It weighs when feeding until it is close to the preset packaging value. The computer quantitative packing scale is composed of several independent weighing units with the structure of feeding and discharging. The computer quantitative packing scale is suitable for the quantitative packing of 25kg-50kg, and the electronic quantitative packing scale is widely used.

C. Application of 25Kg packing machine:

Powder quantitative packaging machine is suitable for the quantitative packaging of powder, powder and powder materials in chemical, food, agricultural and sideline products industries, such as milk powder, starch, pesticide, veterinary medicine, premix, additive, condiment, feed, enzyme preparation, etc.; powder quantitative packaging machine is a combination of machine and instrument, controlled by single chip microcomputer, with automatic quantitative, automatic filling and automatic adjustment of measurement error Etc.

1.Scope of application :

1)Applicable material:

Non-sticky Powder.

2)Applicable filling containers

Bags, Cartons, Cartons, Drums.

2. Technical parameters :

3. Functions and Characteristics :

1) There are two types of packers to choose from; net weight form and gross weight form;

2) Single screw feeder or double screws feeder;

3) Feeding speed is controlled by frequency converter ,the feeding processes consists of fast feeding and slow feeding;

4) High weighing accuracy is guaranteed by the load cell and digital weighing controller;

5) Easy to operate , automatic taring , automatic filling, automatic weighing, automatic dedustinging;

6) This packer has special minus error compensation function, When the packaging weight error is minus , This compensation function starts work automatically to eliminate minus error, The automatic compensation device can compensate the material automatically into the filling container till that the weighing error is in positive confine;

7) No dust leakage and polluting the environment When the packer filling, the powder passage is completely sealed.

Main specialty

• Scope of application: Granular material or powder material of Packing bags(boxes and pails)
• Can be made into twin-type pakcer(except DCS-25(GO7N)和DCS-25(PO4G))
• Can made into semi-packing and palletizing line with conveyors, sewing machine, heat sealer, fall bag conveyor, reshaping conveyor, weight checker, reject conveyor, pallet magazine, stacker.
