This machine is used to produce carbonated soft drink, like cola, soda water, energy drink, etc. It's for glass bottle aluminium rotary cap package, capacity is about 8000 bottles per hour, the filling cylinder can lift automaticlly only need to set on the touch screen according to diffirent bottle height.

machine features

1. This machine integrating washing bottle, filling and capping in one unit.

1.Feeding bottle on belt automatically, bottles going to washing part by conveying belt, washing bottle gripper gripping bottle neck, along washing bottle pathway overturning 180°, water pump opening, water spraying bottle inside and outside, then drying along washing bottle pathway overturning 180°, bottles come out by conveying belt, and entering into filling position, with hanging bottle neck positioned filling machine lifting mechanism on cliping bottle neck plate, make the bottles lift up, fit to filling . During lifting process, check bottle on cliping bottle neck or not. If with bottle, then starts filling beer. If no bottles, then the filling valves remain close state. After finishing filling, bottle lifting mechanism go down, the filled beer bottle sent into capping machine by star wheel, after capping, the bottle is sent out through star wheel to conveyor belt.

2.Emphasis on opening machine design, minimized the machines’ components, smooth and easy design, washing, filling capping part in one working table, take deep consideration of corrosion resistance , all parts contacting with liquid uses SUS304, and design for all pipes and connection joint, bending radius , design is streamline without hygiene corner.

3. Consider bottle characteristics, adopt cam lifting way, stable operation, and increase filling central device to make the filling more accurately.

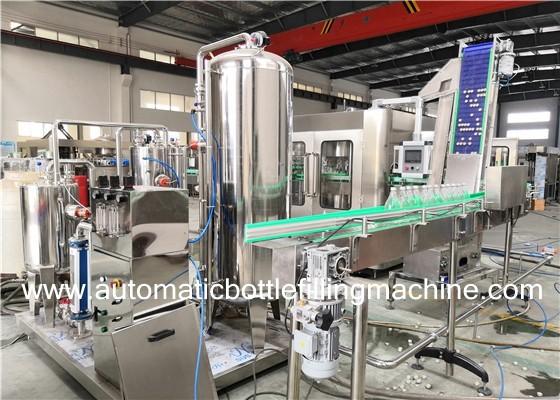

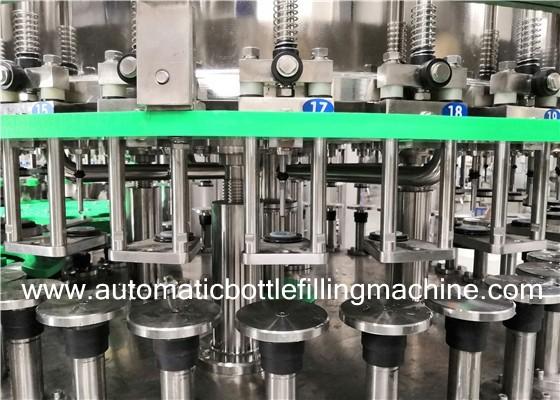

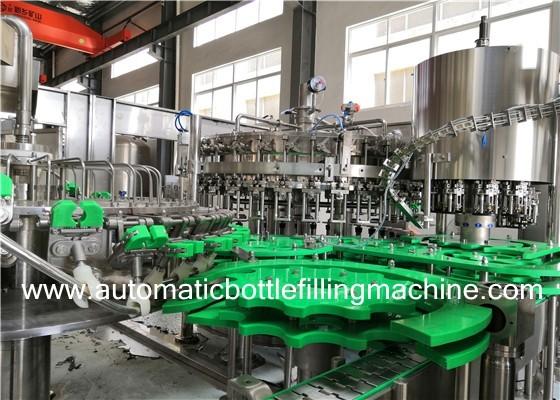

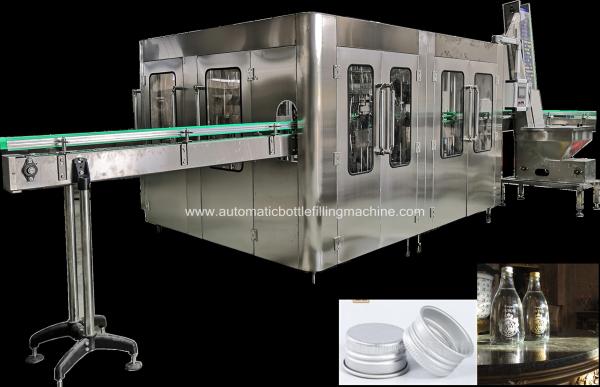

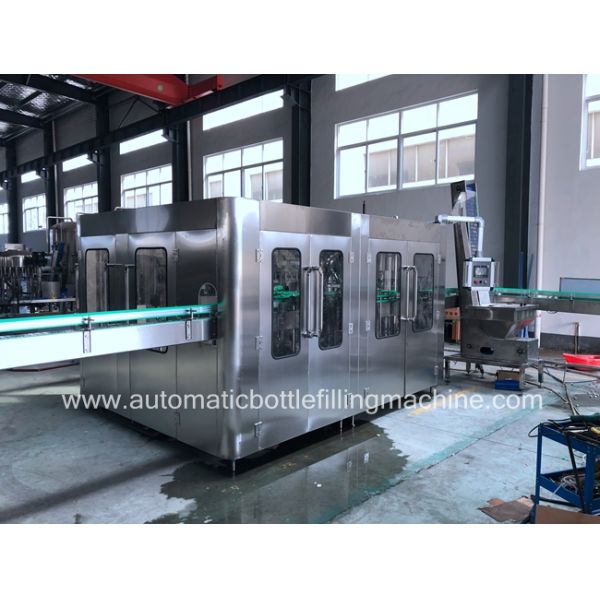

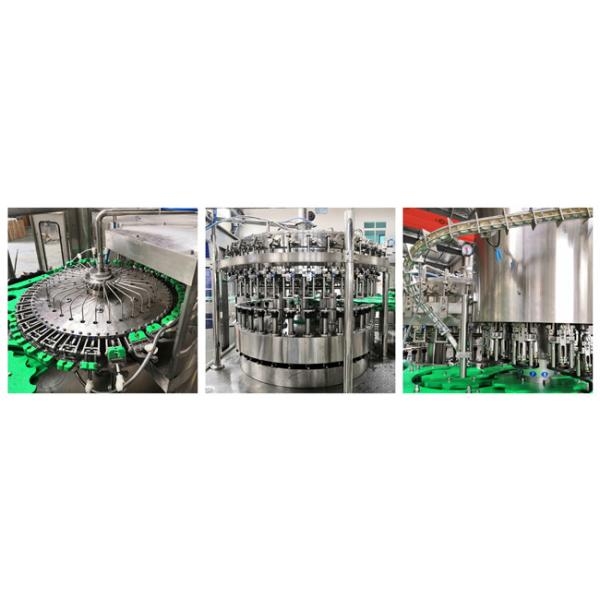

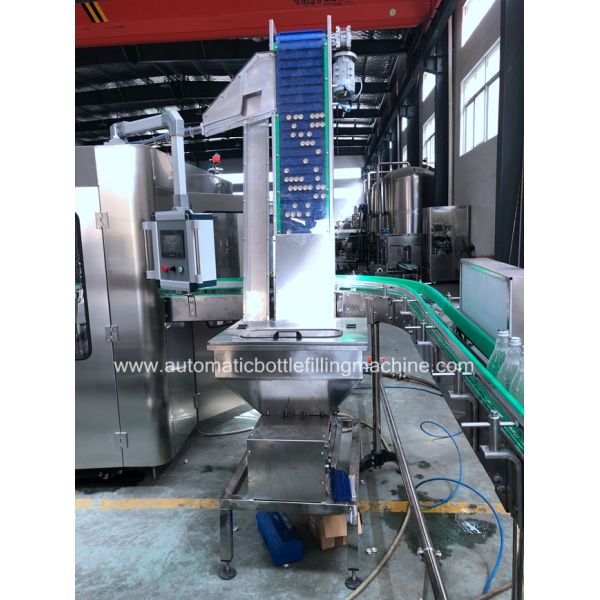

Machine picture

Machine specification

Special size can be customized, Just feel free tell us your requirements

FAQ

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

we can supply complete line plants for catbonated soft drink, pls inquire ... ...
