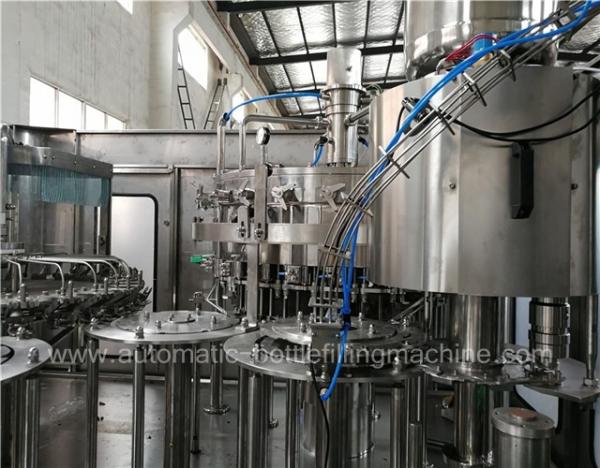

250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper
250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper
250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper
250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper
250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper
250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper
250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper
250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper
Specifications
Brand Name :
JINYATE
Model Number :
DCGF24-24-8
Certification :
CE SGS
Place of Origin :
CHINA
MOQ :
1set
Price :
pls inquir
Supply Ability :
99sets per year
Delivery Time :
45 days
Packaging Details :
standard wooden case
Material :
Stainless steel SUS304
machine name :
carbonated beverage filling machine
function :
rinse fill cap
filling material :
carbonated drink, soda water, sparkling water
capacity :
6000-8000BPH
warranty :
one year
Description

250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper

THE WASHING PART

There is no need to adjust the height of machine through neck holding tech for bottle

transportation.

250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper

THE FILLING PART

The advanced technology from Germany and Italy are employed ,so the speed of filling is fast and the liquid amount is controlled accurately.

250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper

THE PACKAGING PART

It can be stopped automatically when there is no bottle or bottles are damaged.

250-2000ML PET Bottle Soft Drink Bottling Plant , Monoblock Filler And Capper

Model: CGF24-24-8
Capacity: 500ml 5000-7000
Bottle shape: Roud or square
PET bottle: (mm) (Bottle Diameter): φ50-φ110mm (Height): 150-340mm
cap: PE srew cap
filling precision: ≤ ± 5mm
filling pressure: (Mpa) 0.15-0.35
rinsing pressure: (Mpa) 0.2-0.25
filling volume: (L) 8
overall size: (mm) 3800*2950*2400
weight: (kg) 6500

FAQ

Q:If we wanna consult your machines,what information we should supply for you ?
A: Pls inform us the filling capacity(how many bottles per hour),bottle size you use (300ml-2000ml pet bottle),filling mineral water or pure water? Need a full line or just filling machine?

Q:How many machines included in full line ?
A: The complete line includes: Water Treatment System- Automatci PET Bottle blowing machine- Automatic 3 in 1 water filling machine - Lamp inspection - bottle dryer - Automatic PVC shrink labeling machine - Automatic ink jet printer - Automatic PE Film Shrink wrapping Machine or Carton Packing Machine - Storage Room.

Q:If we juat wanna open a small scale for start,what capaity do you recommend?
A: If you're new for this business, we suggest you choose 2000BPH/3000-4000BPH for start.

Q:What else information we should supply for you
A: Factory layout -- We should make machine layout as your factory layout, how to put machine and save space. Whether need extra buffer conveyor for line.
Bottle sample/caps -- After you placed an order,we will machine machines as your bottle sample and caps.

Q:What's the manufacture time commonly ?
A: Commonly the full line manufacture time below 8000bph is 35-40 working days after receive bottle sample
If with blowing machine the manfacture time will be 45-50 working days over 8000bph.
