Glass Bottle Juiced Beverage, Water, Tea Filling Machinery / Production

Line

product presentation

This machine integerates bottle rising, filling and capping in one monobloc, it is suitable

for glass bottle, and for all non-gas liquid, such as water, juiced beverage, tea, wine etc.

This machine is our exclusive design, it can seal two kinds caps in one machine, crown

cap and ring pull cap, it has 18 rising heads, 18 filling heads, 6 crown cap sealing heads

and 6 ring-pull cap sealing heads, can filling 6000 bottles per hour.

Thechnical description:

Model: BCGF18-18-6-6

Capacity:6000BPH (500ml)

Suitable bottle: glass bottle

Suitable cap: crown cap, ring-pull cap

Filling type:hot filling

component construction:

1. bottle inlet conveyor

2. bottle outlet conveyor

3. cap loader

4. rising

5. filling

6. capping (two kinds caps)

Character

1. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to

adjust the equipment level, only change related the curved plate, wheel and nylon parts is

enough.
2. The specially designed stainless steel bottle washing machine clip is solid and durable, no

touch with the screw location of bottle mouth to avoid secondary pollution.

3. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

4. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of

conveyor chains.

5. Host adopt advanced PLC automatic control technology, the key electrical components from

famous company such as Japan's Mitsubishi, France Schneider, OMRON.

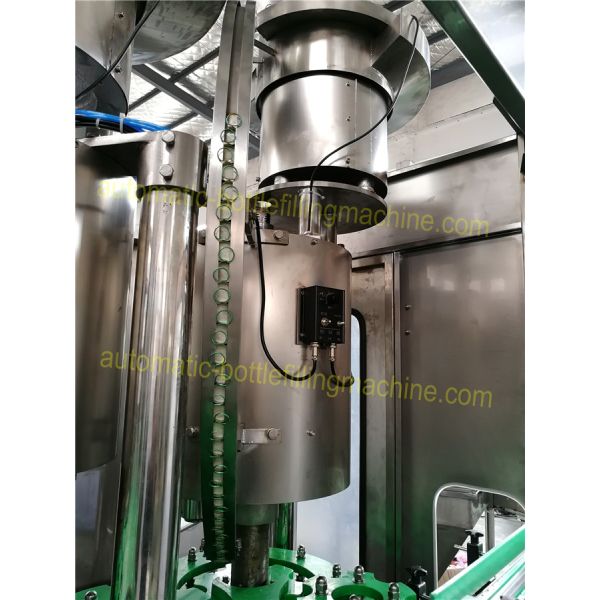

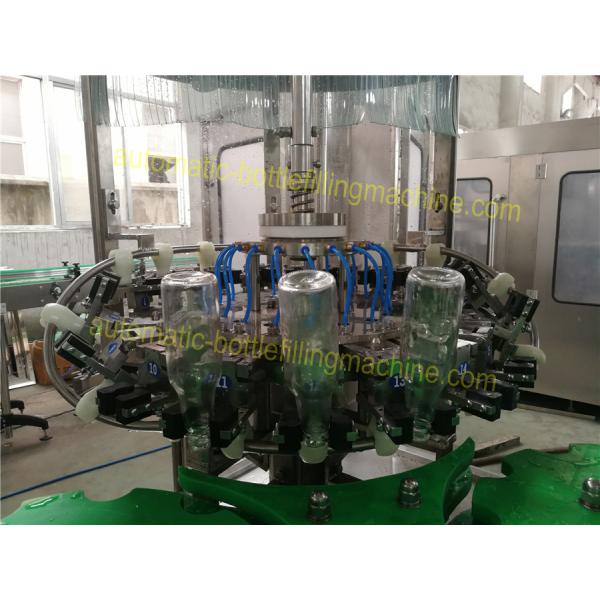

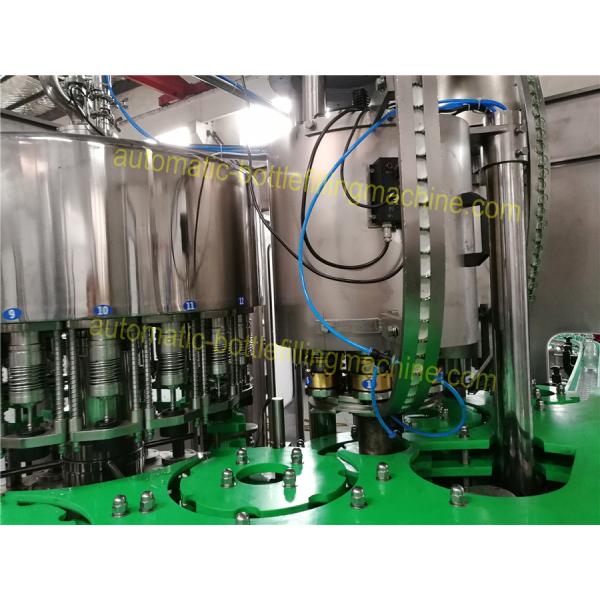

product pictures

Besides this, we also have other capacity:

flowchart of non-gas beverage production:

1.water treatement system; 2. beverage preparation system; 3. filling system; 4package system

we can supply all these plants and also can advise the most

commercial solutions, pls have a furthur learn... ...
