Automatic Split Liner Small Liquid Water Bottle Filling And

Capping Machine

product description

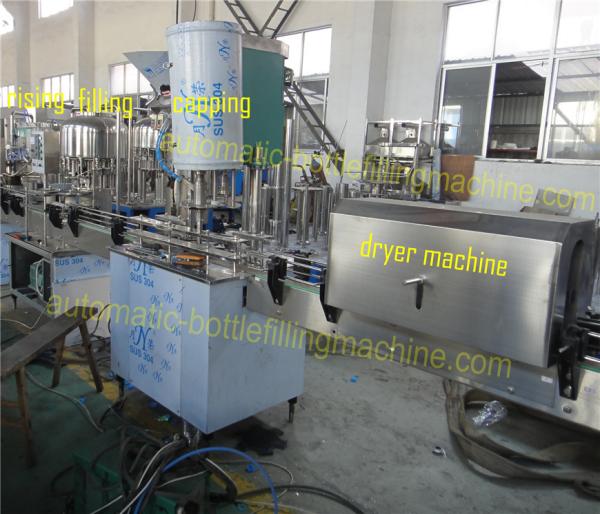

The split linear water bottling machine includs three machines, QS-12 Auto Bottle Washer

, CY-12 Normal Pressure Filler, FXZ-1 Screw Capper, the three machines and linked together

by conveyor. It has 12 rising heads, 12 filling heads and 1 capping heads, suitable for PET bottle

various water, like mineral water, purified water, still water, flavor water, is also can fill juice and

other non-gas liquid, it's can produce 2000 bottles per hour (for 500ml), it's an ideal machinery for

small scall production.

product details

QS-12 Auto Bottle Washer

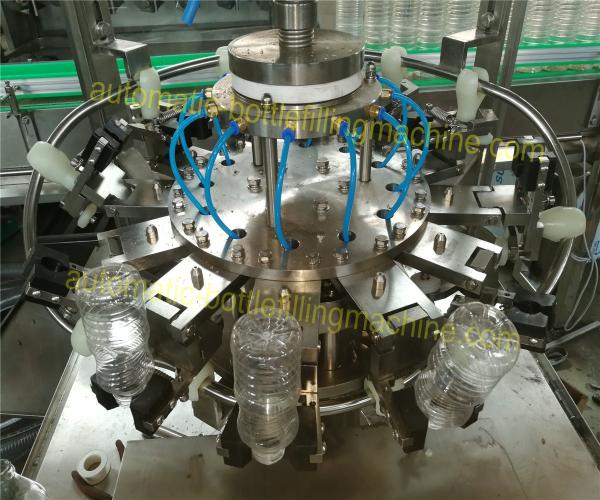

QS-12 Auto Bottle Washing Unit is one of the most versatile medium speed rinsers available anywhere.it is

designed to effectively internally rinse up to 3,000 small bottles per hour/50 bottles per minute.It’s ideal for

rinsing bottles ranging in size from 12oz (335ml) up to 2liters.The change over from one size bottle to

another could be easier.It takes literally minutes and no tools are required nor are there any special molds

or adapters required for the change overs.

technical parameter

Dimension(L×W×H) 1200×1200×1800 mm

Weight 960kg

Motor Power 0.55KW

Production Capacity 2000B/h (for 0.5L bottle)

Suitable bottle size Diamater: Φ50～Φ100mm

Height: 120～320mm

CY-12 Normal Pressure Filler

CY-12 Normal Pressure Filler& 24 Foot automatic conveyor System:The JFY-12 is designed to

automaticlly fill up to 3,000 bottles per hour and provides maximum versatility to keep pace with the

demands of your operation.The JFY-12 is designed and built to operate multiple shifts with a minimum of

the maintenance and does not requir highly skilled operators.The stae-of-the-art design and components

offer maximum performance,reliability and versatility to fill from 335ml up to 2liter bottle.

technical parameter

FXZ-1 Screw Capper

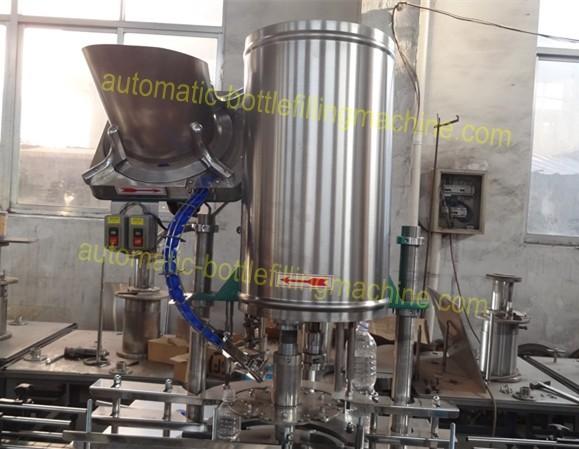

FXZ-1 Screw Capper is also one of the most unique capping systems available.To begin with,the filled

bottles first enter the build-in Bottles Spacing Mechanism.The bottles spacer allows for precise and

constant bottle spacing while entering the Cap Applier.This correct spaceing ensures that your caps are

applied evenly and consistently with the most accurate alignment possible.In preparation for cap

appliation,caps are first moved,from the shipping carton,into the Cap Hopper.

technical parameter

Dimension(L×W×H) 920×740×1950 mm

Weight: 350kg

Motor Power: 0.55KW

Cap Orderer Power: 0.12KW

Production Capacity(in theory) 2400B/h (for 0.5L bottle)

Suitable bottle Diameter: Φ50～Φ100mm

Height: 150～330mm

Mouth Screw Diameter: Φ27.5

Theft Proof Cap Size: Φ28×15(inner size)

Besides this split machine, we also have 3-in-1 monobloc
