Water Washing Filling Capping Machinery / Small Business

Manufacturing Machines

product description

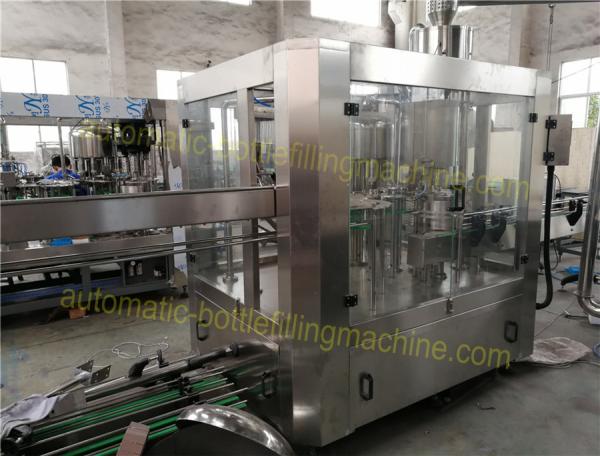

This is the smallest capacity monobloc water machine, it has 8 rising heads, 8 filling

heads and 3 capping heads, the max capacity can reach 3000 bottles per hour ( for

500ml),it is suitable for PET bottle, mineral water, purified water, still water, flavor water

or other non-gas liquid.

technical parameter

product pictures

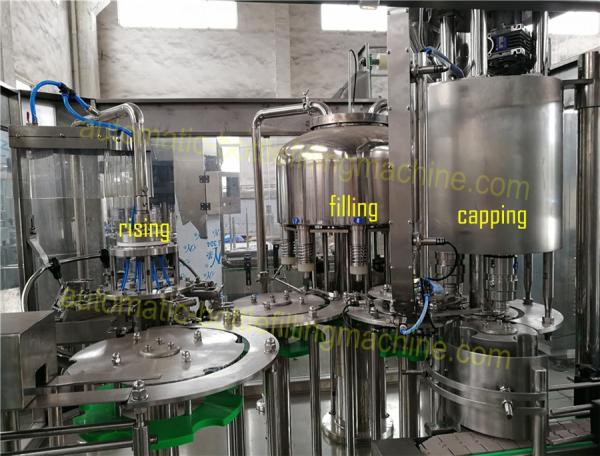

rising

The automatic rinse rotor has spring loaded grippers mounted radially which pick up bottles one by one

from the infeed transfer rotor. The bottle is inverted against a lever on the rinse valve to start the rinsing

operation. Thus we have NO BOTTLE - NO RINSE. Bottles are washed for upto three seconds each,

before draining ( for removal of residual water ) and uprighting for transfer to the filling rotor. The rinsing

medium is generally product water.

filling

The internationally accepted and approved VENT PIPE filling principle ensures accurate level filling

without spillage. The filling accuracy is ± 5 ml. The fill tank level is regulated automatically by a PLC

controlled electronic probe which reduces the machine speed in the vent of disrupted input product water

supply. The machine speed is then restored to normal once the water supply is replenished.

capping

Torque adjustable, magnetic capping heads mounted on the capping rotor, complete the capping

operation using the extremely dependent PICK & PLACE mechanism. Capping head descends to push up

the cap in two stages and then descends onto the bottle neck to complete capping operation. The torque

on each capping head can be adjustable to achieve optimum capping results without cap damage /

leakage. A unique anti turn device prevents bottle rotation during capping for positive capping.
