Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water
Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water
Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water
Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water
Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water
Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water
Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water
Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water
Specifications
Brand Name :
JINYATE
Model Number :
CGF8-8-3
Certification :
CE SGS
Place of Origin :
China(mainland)
MOQ :
1 set
Price :
Negotiable
Supply Ability :
99 sets per year
Delivery Time :
35 working days
Packaging Details :
standard wooden cases
product name :
water bottling machine
function :
rising filling capping
Model :
CGF8-8-3
Capacity :
3000B/H (for 500ml)
machint type :
monobloc rotary machine
suitable bottle :
PET bottle
bottle size :
250-1000ml
filling material :
mineral water, purified water
material :
SUS304
Description

3000BPH 250-2000ml Bottled Purified Water Making Rotary

Machine / Production Line

product description

This is the smallest capacity monobloc water machine, it has 8 rising heads, 8 filling

heads and 3 capping heads, the max capacity can reach 3000 bottles per hour ( for

500ml),it is suitable for PET bottle, mineral water, purified water, still water, flavor water

or other non-gas liquid.

technical parameter

Model: CGF8-8-3
Capacity:500ml(b/h) 3000
Suitable Bottle Height(mm) 130-280
Suitable Bottle Body Diameter(mm) Φ40-φ80
Suitable Cap Shape Plastic Screw Cap
Filling Precision ≤±5mm(Liquid Level)
Power: (KW) 3
Filling Temperature: Room Temperature
Water Pressure of Washing Bottle(Mpa) 0.18
Water Consumption for Washing Bottle(kg/hr) 800
Gas Source Pressure(Mpa) Normal Pressure
Gas Consumption(m 3 /min) 0.3
Size L×W×H (mm) 1900x1400x2350
Total Weight:(kg) 1500
Power Supply 380V/50HZ

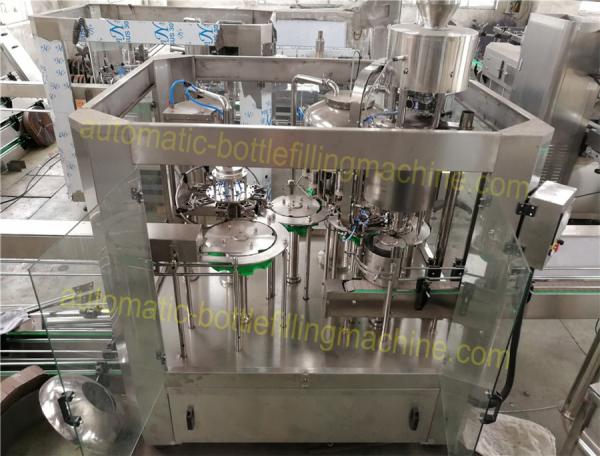

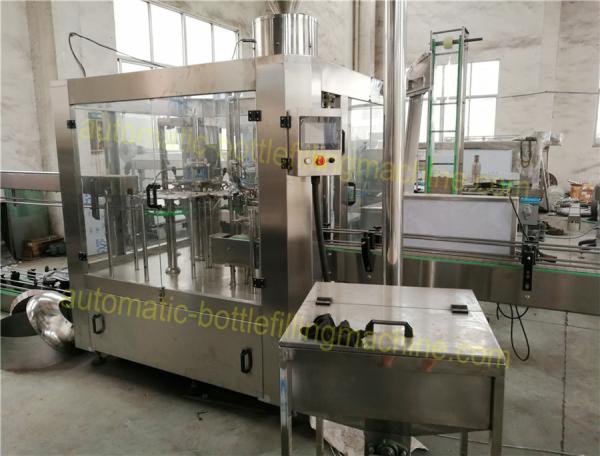

product pictures

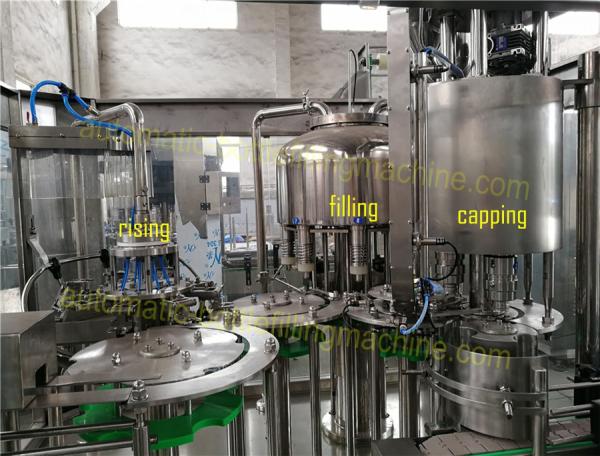

rising

Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water

filling

Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water

capping

Monoblock Rotary Automatic Bottle Filling Machine For 250 - 2000ml Bottled Purified Water

features

1.The bottle water filling equipment adopts advanced human-machine interface control. High

quality international name brand key components.

2. Suspension bottle neck catcher structure allows the machine change the bottle type easily. By

changing the valves, it also can be used as hot filling machine.

3. Spring type rinsing catcher can wash both inside and outside of the bottle.

4. High accuracy pressure water filling mechanism, ensure the height and quatity of the water

filling.

5. Magnetic powered cap device ensures tightness and prevents damage of the caps.

6. Quiet, rotary cap unscrambler will not damage caps. Photoelectric sensor detect missing caps

thus eliminating uncapped bottle spillage.

7. Built-in safeguard mechanism ensures the safety of operator and machine.

8. High efficient air clean filter system ensures high sanitary requirements.

9. Low overall machine noise

10. Self-lubricating system imported from America provides continuous smooth operation.

11. This machine is designed for bottling non-air drinks,such as pure water,mineral water etc, it

integrates bottle washing, filling and capping into one monobloc unit.
