Specifications
Brand Name :
JINYATE
Model Number :
CGF40-40-12
Certification :
CE SGS
Place of Origin :
China(Mainland)
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
99 sets per year
Delivery Time :
35 working days
Packaging Details :
standard wooden cases
product name :
water bottling machine
function :
rising filling capping
Model :
CGF40-40-12
capacity :
16000-18000 B/H for 500ml bottle
suitable bottle :
PET plastic bottle
filling material :
mineral water, purified water, still water, juice
dimension :
3500*2200*2250mm
weight :
8000kg
voltage :
380v 50hz 3phases
power :
9.63KW
Description


250-2000ml Mineral / Purified / Still / Flavor Water Making Machinery

Plant Line



Technical parameter

Model:CGF40-40-12
Capacity:500ml(b/h)16000-18000
Bottle size(ml)250-2000
Suitable Bottle Height(mm)130-280
Suitable Bottle Body Diameter(mm)Φ40-φ80
Suitable Cap ShapePlastic Screw Cap
Filling Precision≤±5mm(Liquid Level)
Power: (KW)9.63
Filling Temperature:Room Temperature
Water Pressure of Washing Bottle(Mpa)0.18
Water Consumption for Washing Bottle(kg/hr)1000
Gas Source Pressure(Mpa)Normal Pressure
Gas Consumption(m 3 /min)0.6
Size L×W×H (mm)3500x2200x2250
Total Weight:(kg)8000
Power Supply380V/50HZ


Composition of the machine

The machine includes several sections listed bellows:

(1). Drive unit

(2). Locating bottle device

(3). Input bottle device

(4). Rinsing bottle device

(5). Rinsing-filling transferring bottle device
(6). Filling device

(7). Filling-capping transferring bottle device

(8). Capping device

(9). Unscrambling device

(10). Output bottle device

(11). Frame

(12). Electric control system


product pictures

overall look

250 - 2000ml Water Bottle Filling Machine Mineral / Purified Water Making Machinery Plant

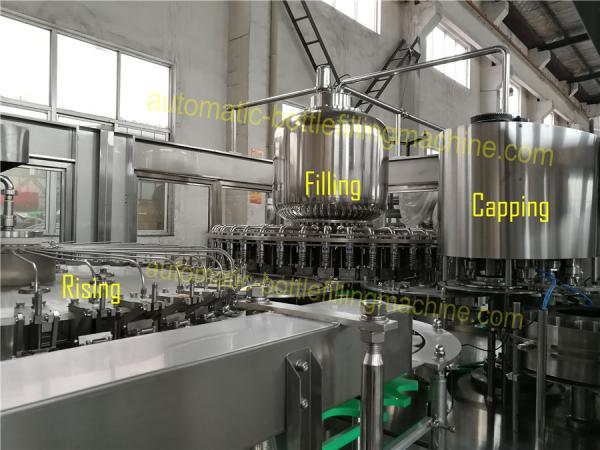

Filling

250 - 2000ml Water Bottle Filling Machine Mineral / Purified Water Making Machinery Plant

electrical system

250 - 2000ml Water Bottle Filling Machine Mineral / Purified Water Making Machinery Plant


besides this CGF40-40-12, we also have other capacity

ModelCGF10-10-3CGF18-18-6CGF 24-24-8CGF 32-32-10CGF 40-40-12CGF 50-50-15
Rinsing nozzles101824324050
Filling nozzles101824324050
Capping nozzles368101215
Output(@500ml)4000BPH6000BPH8000BPH14000BPH18000BPH24000BPH
Applicable bottle sizeDiameter=50~108mm, H=170~340mm, 330~2250ml
Pressure of air source0.7MPa0.7MPa0.7MPa0.7MPa0.7MPa0.7MPa
Air Consumption0.25M3/min0.80.80.80.81
Pressure of spraying water0.2-0.25MPa
Consumption of rinsing water1T/H1.2T/H1.2T/H2T/H2.2T/H2.5T/H
Pressure of filling0.2-0.3MPa
Power consumption2.5kw3.5kw4kw5.5kw6.5kw8kw
Machine bodySS304
Machine size(L*W*H,mm)2100*1800*24002300*2200*24003000*2200*28004000*2600*28004700*2900*28005100*4800*3000
Machine weight(kg)250030004000500060007500
PLCJapan Mitsubishi

we make superiou machinery solutions to fit your budget and

business needs... ...
