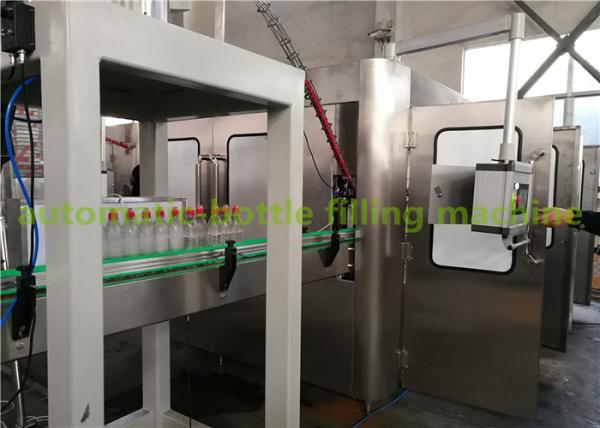

Bottle Pure Drinking Water Filling Sport Cap Sealing Machine 1 Year Warranty
Bottle Pure Drinking Water Filling Sport Cap Sealing Machine 1 Year Warranty
Specifications
Brand Name :
Jinyate
Model Number :
CGF32-32-10
Certification :
CE,ISO,SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Supply Ability :
15 Set/Sets per Month
Delivery Time :
30-45 working days
Packaging Details :
Standard wooden Boxes
Filling volume :
200-2000ml
Overall dimension(L*W*H) :
3500*2200*2250mm
Capacity :
12000BPH(500ml)
Filling temperature :
Room temperature
Control system :
PLC control+touch screen
Warranty :
One year for free
Weight :
6000kg
Filling type :
Normal pressure
Description

Bottle Pure Drinking Water Filling Sport Cap Sealing Machine 1 Year Warranty


Introduction

Water Filling Machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage markets.

Features

Machine structure

1. washing, filling and capping part in one unit;

2. one driving system makes the speed more stable

3. need one person to operate the machine

4. no noisy while running

5. more compact

6. different bottles can be applied in same machine (the bottle neck should be the same)
Washing part

1.the star wheel to hold the bottle neck to avoid damage the bottle mouth

2.there is nylon grip to protect bottle mouth
Filling part

1.round liquid tank, no residual after filling

2.the valves are stainless steel 304

3.no bottle no filling

4.filling level can be adjusted
Capping part

1.there is anti-rotary blade to fix the bottle without moving

2.the capping torque can be adjusted
Control system

1.PLC control

2Touch screen
Electric part All the electric parts are well-known brand

Technical parameters

Model CGF16-12-6 CGF18-18-6 CGF24-24-8 CGF32-32-10
Production capacity(500ml)(b/h) 2000-4000 4000-6000 8000-10000 12000-15000(0.5L)
Filling precision ≤±5MM(Liquid Level)
Polyester bottle standard(mm) Bottle diameter40-80;
Height Height:130-280 (Height):150-320
Suitable cap shape Plastic Screw Cap
Water pressure of Washing bottle(MPa) 0.18
Water consumption for Water bottle (kg/h) 800 1600 2500 3500
Spraying position 5 5 6 12
Dripping bottle position 3 3 3.5 7
Gas source pressure(Mpa) normal pressure
Gas consumption(m3/mm) 0.3 0.3 0.4 0.5
Total power 4.23 5.03 6.57 8.63
Total weight 2000 3500 5500 8000
Dimension(L*W*H)mm 2100×1500×2200 2450×1800×2200 2750×2180×2200

3500×2200×2250
