5.88KW Small Rinsing Filling Capping Machine , Normal Pressure Liquid Filling Equipment
5.88KW Small Rinsing Filling Capping Machine , Normal Pressure Liquid Filling Equipment
5.88KW Small Rinsing Filling Capping Machine , Normal Pressure Liquid Filling Equipment
5.88KW Small Rinsing Filling Capping Machine , Normal Pressure Liquid Filling Equipment
Specifications
Brand Name :
Jinyate
Model Number :
CGF8-8-3
Certification :
CE,ISO,SGS
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10 Set/Sets per Month
Delivery Time :
45 working days
Packaging Details :
Plastic film wrapping,standard wooden boxes packing
Driven type :
Electric
Filling Pressure :
Normal pressure
Automatic Grade :
Fully-automatic
Weight :
2000KG
Overall Dimension :
1800*1200*2150mm
Power :
5.88kw
Processing type :
Water
Capacity :
3000BPH
Description

5.88kw Small Plant Automatic Glass Bottle Water Filling Screw

Capping Machine

Specifications:

Model:CGF8-8-3 ; Capacity:3000bottleds per hour

1. It is used to produce polyester bottled mineral water, purified water, alcohol, tea drink and other non-

gas beverage.

2. It can finish all the process such as bottle rinsing, filling and sealing fast and stable in one unit.

3. It can reduce the materials and Outsiders touch time, improve the sanitary conditions, production

capacity and economic efficiency.

Feature

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled

screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, anna com bottle-shaped transform not need to

adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with

the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor

chains.

6. Super-low star wheel structure can highly improve the strength of the whole machine.

7. Central greasing oil system can grease all bearings easily.

8. Gearbox type capping unit gives a close structure, keep oil inside also using Egers material for longlife.

You can also adjust the capping rounds according to different caps by adjusting gears below.

9. Host adopt advanced PLC automatic control technology, the key electrical components from famous

company such as Japan's Mitsubishi, France Schneider, OMRON,ABB.

Technique parameter

Model CGF8-8-3
Rinsing Head 8
Filling Head 8
Capping Head 3
Bottle Volume 350ml~2000ml±10ml
Bottle Diameter φ50-92mm
Bottle Height 150-310 mm
Filling Tolerance ±2%
Cap Size 28mm and 30mm PE Standard Caps
Air Pressure 0.6MPa
Air Consumption 500 L/min
Gas Consumption 0.4 m3/min
Motor Power 9.18kW
Voltage 380V

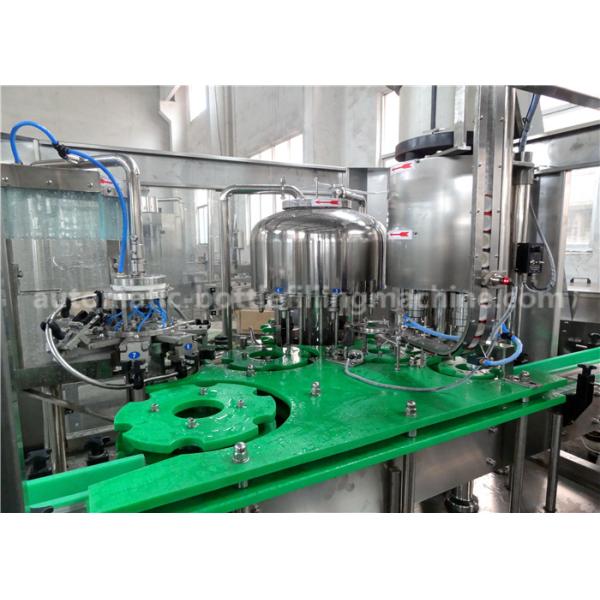

Inside look

5.88KW Small Rinsing Filling Capping Machine , Normal Pressure Liquid Filling Equipment

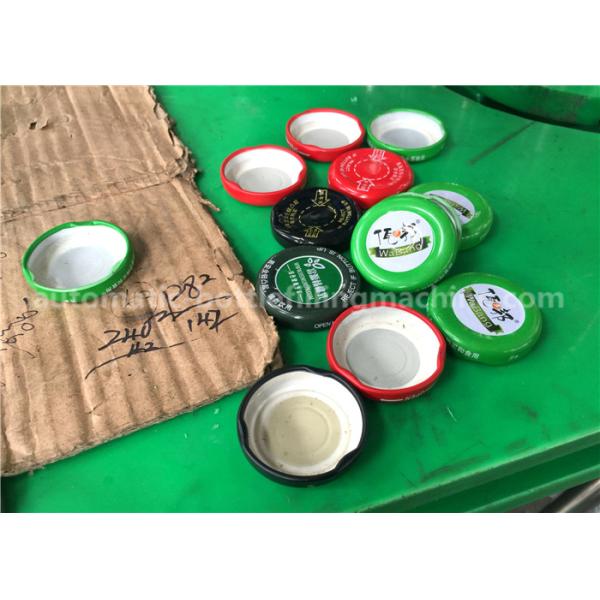

Screw cap

5.88KW Small Rinsing Filling Capping Machine , Normal Pressure Liquid Filling Equipment

Conveyor system

5.88KW Small Rinsing Filling Capping Machine , Normal Pressure Liquid Filling Equipment
