Specifications
Brand Name :
JINYATE
Model Number :
GZS
Certification :
CE SGS
Place of Origin :
China(mainland)
MOQ :
1 SET
Price :
Negotiable
Supply Ability :
90 sets per year
Delivery Time :
35 working days
Packaging Details :
standard wooden cases
product name :
oil filling machine
function :
filling capping
suitable bottle :
PET plastic bottle
filling material :
edible oil, lubricate oil
bottle size :
250-2000ml
capacity :
6000B/H
Description

PET Bottle Rotary Palm Oil , Edible Oil Filling And Capping

Machine Line Cost

product description

The oil filling machinery is suitable for filling edible oil,olive oil,motor oil,lubricant,gear

oil,engine oil,all kinds of flowing liquid and so on. it can fill different shapes of bottle such as

round,flat,square,etc.

By adjusting the position pump,it can fill many kinds of the bottles in one filling machine with

quick speed and high precision.The filling capacity can be adjustable,the filling volume can be

varied from 100-5000ml by adjusting the piston pump.

features

ü PLC control system,frequency conversion adjusting speed,high degree automation.

ü Pneumatic control piston pump,easy to adjust filling volume.

ü Adopt top liquid hopper,with auto level sensor to control stuff supply and stop.

ü The filling nozzles are specialized made:anti-drop.

ü Convenient to take out component parts to clean and sterilize, easy to change different

bottles without changing parts.

ü If you have any preference brands of the electrical and pneumatic parts, you can let us

know.

ü Frequency invert-er speed control,no bottle no fill.

techinal parameter

Product Name China new products lubricating oil filling machinery oil filling production machine on alibaba.com
Applied Bottle 100-5000ml(customized)
Productive Capacity 30-60pcs/min(customized)
Filling Head Can be customized
Packing material Glass/Plastic/Metal
Certification CE/GMP/ISO
Qualified Stoppering ≥99%
Qualified cap putting ≥99%
Qualified capping ≥99%
Power Supply 220V/380V ,50~60HZ
Power 1.5KW
Working air pressure clean 0.55Mpa-0.65Mpa air
Net Weight 600KG
Dimension 2500(L)×1000(W)×1700(H)mm
Edible oil filling machine(HS code) 8422303090

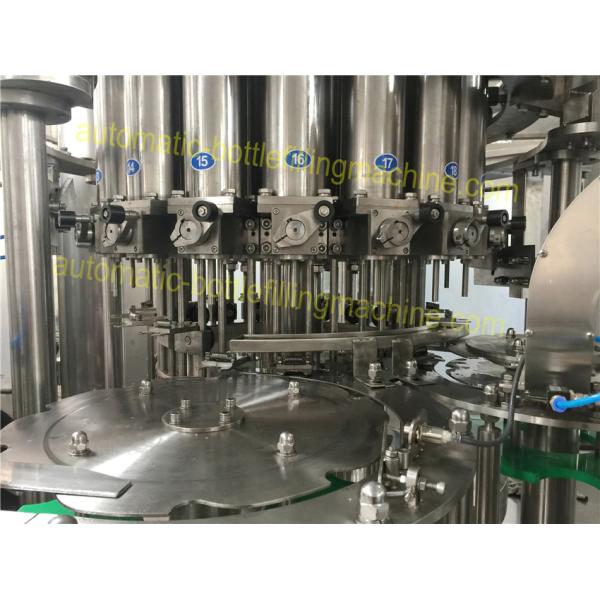

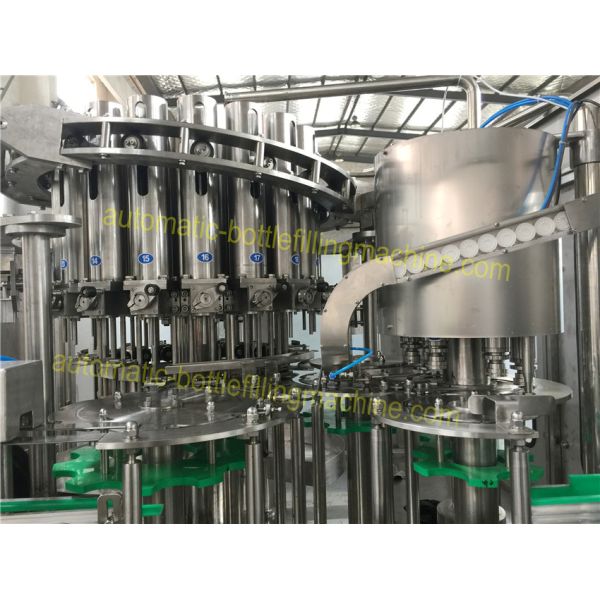

product pictures

PLC Control Cooking Oil Filling Machine , Rotary Liquid Filling Machine From 100 - 5000ML

PLC Control Cooking Oil Filling Machine , Rotary Liquid Filling Machine From 100 - 5000ML

PLC Control Cooking Oil Filling Machine , Rotary Liquid Filling Machine From 100 - 5000ML
