Industrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PP
Industrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PP
Industrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PP
Industrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PP
Industrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PP
Industrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PP
Specifications
Brand Name :
HIGEE
Model Number :
QGF-100
Certification :
CE ISO
Place of Origin :
Shanghai China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
30 working days
Packaging Details :
Wooden case
Name :
5 gallon washing filling capping machine
Filling head :
1
Volume(L) :
20L
Gas consumption (m3/min) :
0.37
Rated production capacity :
100BPH
Moto power (kw) :
1.38KG
Description

5 gallon filling machine and manual filling machine for PET PP with

industrial bottle filling machine

1. Used for 3~5 gallon Barrel

2. Application for :Water
3. PLC control

4. CE ISO cert.

Introduction:

This filling line specially for 3-5gallons barreled drink water,with type QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200,It intergrates bottle washing,filling and capping into one unit .

In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly.

The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .

It also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together .

Main technical specifications:

Model QGF-100 QGF-300 QGF-450 QGF-600 QGF-900
Filling heads 1 2 3 4 6
Volume(L) 18.9 18.9 18.9 18.9 18.9
Capacity(b/h) 100 300 450 600 900
Gas consumption (m3/min) 0.37 0.6 0.8 1 1.5
Moto power (kw) 1.38 3.8 5.6 7.5 9.75
Weight(kg) 680 1500 2100 3000 3500
Size(W*L*H)(m) 0.5*4.0*1.5 0.9*4.0*1.5 1.3*4.0*1.5 1.8*4.0*1.5

2.4*4.0*1.5

​

Customized service

1. We can design the machines according your requirements(materil,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

After-sales service

1. We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly

2. When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

3. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

4. We provide one year warranty

5. Well-trained & experienced staff are to answer all your inquiries in English and Chinese

6 . 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).

7 . 12 Months guarantee and life-long technical support.

8. Your business relationship with us will be confidential to any third party.

9. Good after-sale service offered, please get back to us if you got any questions.

Quality Control

We have the single quality department,that make sure the material of the raw materials is good,and ensure the machine running smoothly.

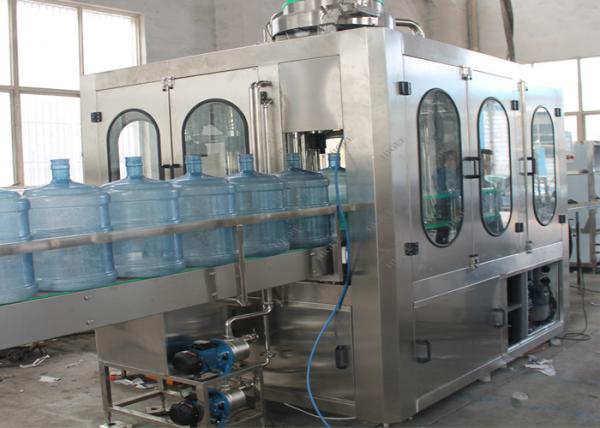

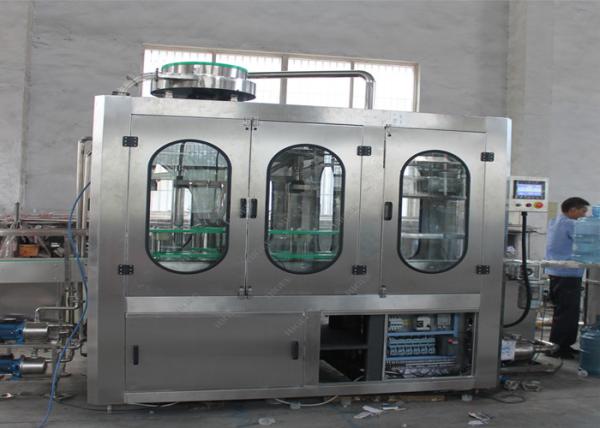

5 Gallon filling machine part photos:
Industrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PP
Industrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PP
Industrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PPIndustrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PPIndustrial Washing Capping 5 Gallon Water Bottle Filling Machine For PET PP
Our Services

Installation service

When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well.

The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our factory,and see the machine running.

If you want to know more information about the product,You can send an inquiry, we will solve any of your problems and send you running vedio.
