3 In1 Unit Automatic Water Filling Machine Rinsing Capping For Water Packing Plant
3 In1 Unit Automatic Water Filling Machine Rinsing Capping For Water Packing Plant
Specifications
Brand Name :
Higee
Model Number :
DCGF32-32-10
Certification :
CE
Place of Origin :
China -Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30 working days
Packaging Details :
Wooden case
Driven Type :
Electric
Material :
Stainless Steel
Capacity :
12000BPH（375ml）
Processing :
Bottle Packing Machine
Voltage :
110V|220V|380V
Application :
Pure Water|mineral Water|beverage
After-sales Service Provided :
Engineers available to service machinery overseas
Name :
water filling equipment
Description

Rinsing, Filling, Capping 3in1 Unit Machine ,Water Bottle Filling Machine for

Water Packing Plant12000bph

Applications

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.The machine is widely used in the production of beverage because of its characteristics of automation, high intelligence, stable and reliable machine performance, simple structure, high production efficiency, low energy consumption and no contamination by intermediate links.

Technical Parameters

Model DCGF32-32-10
Number of stations Rinsing 32, filling 32, capping 10
Rated production capacity 12000BPH(375ml)
Filling method Isobaric filling
Filling temperature ≤4℃
Adapt to bottle type Bottle diameter: φ50- 100mm; bottle height: 150-310mm
Air pressure 0.4-0.6 MPa
Gas consumption 8-10M3/h
Bottle water pressure 0.2-0.25 MPa
Bottle water consumption 2 tons / hour
Rated voltage 380V
main motor power 5.5Kw
Host dimensions 3100 × 2350 × 2450 (L × W × H)
Equipment weight 4500Kg

Description

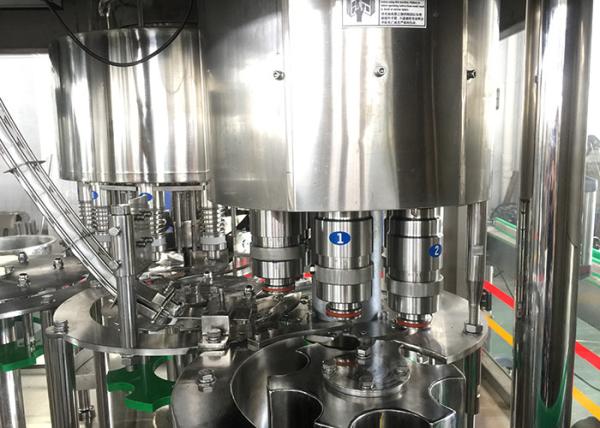

Rinsing system: This section consists of red bottle clip turntable, sub-pan, sink. 3 In1 Unit Automatic Water Filling Machine Rinsing Capping For Water Packing Plant
3 In1 Unit Automatic Water Filling Machine Rinsing Capping For Water Packing Plant Filling system: This part is composed of liquid cylinder, filling valve, control ring and lifting cylinder.
Covering system: This part is composed of capping machine, cover capper and cover guide rail. 3 In1 Unit Automatic Water Filling Machine Rinsing Capping For Water Packing Plant
3 In1 Unit Automatic Water Filling Machine Rinsing Capping For Water Packing Plant Transmission system: This part adopts gear centralized transmission mode, composed of main motor and gear pair.
Conveyor system: This part is composed of guide plate, dial, conveyor chain. 3 In1 Unit Automatic Water Filling Machine Rinsing Capping For Water Packing Plant
3 In1 Unit Automatic Water Filling Machine Rinsing Capping For Water Packing Plant Electronic control system: The part of the frequency control, PLC automatic control, touch screen operation.

Feature

3 In1 Unit Automatic Water Filling Machine Rinsing Capping For Water Packing Plant3 In1 Unit Automatic Water Filling Machine Rinsing Capping For Water Packing Plant

Filling machine

All rotating discs are made of stainless steel SUS304

Filling method for gravity filling

Filling valve made of SUS304L

Filling machine power transmission system through the

Competitive Advantage

1. Best price & best quality

2. Customized according to customer needs

3. Delievery in time

4. Life-time good service
