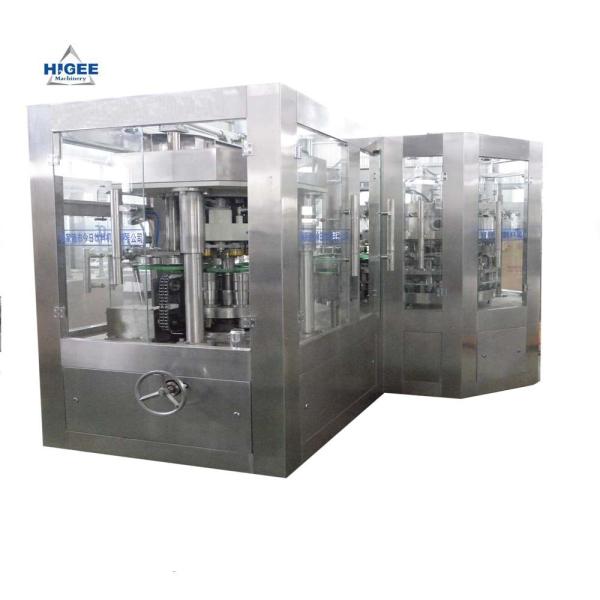

40000BPH Automatic Water Filling Machine , Bottled Water Production Machine 17KW
40000BPH Automatic Water Filling Machine , Bottled Water Production Machine 17KW
Specifications
Brand Name :
Higee
Model Number :
CGF80-80-20
Certification :
CE
Place of Origin :
China -Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
30 working days
Packaging Details :
Wooden case
Application :
Pure Water|mineral Water|beverage
Driven Type :
Electric
Capacity :
40000 bottles / hour (500ml / bottle)
Processing :
Bottle Packing Machine
Voltage :
110V|220V|380V
Warranty :
1 year
After-sales Service Provided :
Engineers available to service machinery overseas
Name :
40000BPH Water Bottle Filling/Packing Machine for Pet Bottle with Water Bottle Manufacturing Machine Price
Description

40000BPH Water Bottle Filling/Packing Machine for Pet Bottle with Water

Bottle Manufacturing Machine Price

Applications

CGF80-80-20-type filling bottle capping three-in-one machine is my company combined with the international advanced technology of filling technology research and development independently developed bottled water filling advanced models

Description

1. The whole machine adopts card bottle hanging running state design, so that the bottle under high-speed operation stable and reliable. Change a few fittings, Can be quickly and easily implement different bottle production need.

2. Using a new generation of tilting bottles clamp, stainless steel clamps and the bottle thread above part does not contact, bottle clamp with shower, to wash the bottle of any part of the wall.

3. Using advanced micro gravity type negative pressure filling principle, filling fast, stable and accurate. Silos is fully enclosed structure, there is the function of temperature control and automatic reflow, and provide the CIP cleaning interface.

4. Using magnetic torque type screw cap, Pincer-like device tight and reliable and does not hurt cover.

5. The machine adopts the man-machine interface, PLC computer control, touch screen button. there is lack of cover, overload protection and alarm device, can timely detection and troubleshooting, high degree of automation of production

6. And material contact parts adopt high quality stainless steel manufacturing, the main electric components and pneumatic components adopt international famous manufacturers.

Technical Parameters

Nominal capacity 40000 bottles / hour
Applicable bottle diameter Φ50 ~ 90㎜; bottle height 150 ~ 310
Applicable cover standard plastic rib cover
Red water bottle pressure 0.18 ~ 0.25Mpa
Red bottle water 4 T / h
Blasting time 3 seconds
Filling temperature room temperature
Air pressure 0.6Mpa
Air consumption 0.4m3 / min
Total power 17KW
Total weight 10000Kg
Dimensions

7550X5100X2850(mm)

Competitive Advantage

1. Best price & best quality

2. Customized according to customer needs

3. Delievery in time

4. Life-time good service
