Semi Automatic Bottle Washing Machine 18.9L/3-5 Gallon Electric Driven Type
Semi Automatic Bottle Washing Machine 18.9L/3-5 Gallon Electric Driven Type
Semi Automatic Bottle Washing Machine 18.9L/3-5 Gallon Electric Driven Type
Semi Automatic Bottle Washing Machine 18.9L/3-5 Gallon Electric Driven Type
Specifications
Brand Name :
Higee
Model Number :
HG-BS-1
Certification :
CE ISO
Place of Origin :
Shanghai China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Delivery Time :
30 working days
Packaging Details :
Wooden case
Name :
Semi automatic 18.9L/3-5 gallon bottle washing
Packaging :
bottles
Driven Type :
Electric
Voltage :
220v/380v/415v/440v
capacity :
300-600 Buckets/hour
bottles :
Barrel, Bottles
Dimension :
W*H): 800*800*1200mm
Cetification :
CE
Description

Semi automatic 18.9L/3-5 gallon bottle washing machine and cost of

jar washing machine with auto glass bottle washing

Introduction:
HG SB-1 5 gallon washing bottles machine series Auto Inter & External Washing Machine is a newly practical product researched and developed according to the customers. It consists of the inter and external washing function with low investment, simple structure, good brushing effect, high working efficiency, small size, which is essential for the recycling inter & external washing of 5 gallon bottle. It is widely used in a number of water plant.
The working procedure of device is from bottle entering, bottle checking, inter and external washing, bottle out. It is controlled and completed by PLC through precise orientation with little manpower and low working intensity. In order to make the performance of the device more stable, the electricity components are selected imported series.
There are various of different length and thickness brushes installed around and top to bottom at the washing work position. Brush motor starts rotating brush with a high-speed. At the same time, water pump gets the clean water. Because of high speed and reverse rotating of the brush motor, the original vertical brush was open by centrifugal action to achieve a better effect.
Water tank equips a ball valve, can add water automatically; also equips with water pressure regulating valve, customers can adjust the pressure practically. There is a water level switch as well, the machine will stop working when lack of water.
Main Technical Parameters:
Item
Specification
Production capacity
300-600 Buckets/hour
Bottle’s specification
φ270×490×φ56
Rated input power
1.6KW
Electomotor power
Conveying electromotors
0.37KW
Inter&external washing electromotors
0.75 KW
Water washing pump
0.37 KW
Power supply
AC 380V±5%
AC 220V±5%
Rated current
6A 8A
Net weight
Two working stations:130Kg
Four working stations:230 Kg

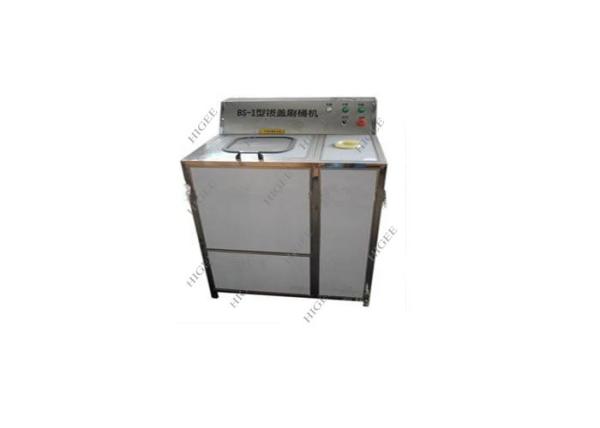

Semi automatic bottle washing machine photos
Semi Automatic Bottle Washing Machine 18.9L/3-5 Gallon Electric Driven Type
Semi Automatic Bottle Washing Machine 18.9L/3-5 Gallon Electric Driven Type

FAQ
Q: What is the guarantee time ? if machines broken or lost during sea freight who will take responsible ?
•A: Guarantee time is for one year from Machine arrive customer sea port. for every export machine we buy insurance for it . if machine lost or broken during sea freight . we take responsible for it .
Q: During Guarantee time , if machine broken by machine design ,what should we do?
•A: during guarantee time , if machine broken by machine design fault , we talk all responsible , for machine broken part free charge send to you , if after change broken part machine can not work , we send new machine to you .
Q: Which kind documents your company can provided?
•A: after ship depart from China port ,we can get documents from Shipping company such as : bill or lading , insurance documents.packing list , commercial invoice . if you need , we also can apply CO ,FORM F, FORM E etc.
Q: After guarantee time , if we need spare parts , can you provided it ?
•A: we can provided for the machine spare part .
Q: Which kind of package you will use ?
•A: For export , we usually use plywood box . which meet export standard.
