330ml 500ml Linear Bottle Washing Machine , Commercial Industrial Bottle Washer
330ml 500ml Linear Bottle Washing Machine , Commercial Industrial Bottle Washer
330ml 500ml Linear Bottle Washing Machine , Commercial Industrial Bottle Washer
330ml 500ml Linear Bottle Washing Machine , Commercial Industrial Bottle Washer
Specifications
Brand Name :
HIGEE
Model Number :
HG-XP
Certification :
CE ISO
Place of Origin :
Shanghai China
MOQ :
1 Sets
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets
Delivery Time :
30 working days
Packaging Details :
Wooden case
Name :
330ml 500ml bottle washing machine
Application :
Beverage, automatic glass bottle recycle glass bottle
Voltage: :
220/380V
Packaging :
Wooden
Power :
2.2KW, 2.2KW
Material :
Stainless Steel SUS304
Waranty :
12mouths
Description

330ml 500ml bottle washing machine and manual washing machine and

automatic washing machine for bottle rinser

Application:

1. This glass bottle washing machine is most commonly used and high efficient washing machine for cleaning recycled bottles at present in China , it is simple operation, easy maintenance, economical and practical.
2. Adopt high temperature hot alkaline soaking and clean with a strong high-pressure brush associated and then through backwash and drain technology, effectively solve recycled dirty reusable bottles cleaning problems.
3. The equipment needs to be done by a combination of three machines according to the technological process , the entire process is automatic.
Working procedure
Bottle entering →soaking→outer brusing→inner brushing→cleaning water spraying and washing →drying→bottles come out
Note:the temperature of hot water containing soda: 50-55℃, concentration of water containing soda is about 2.5%

Main technical parameters

External Diameter
56-82mm
Hight
180-290mm
Inner diameter of bottle
Greater than 15mm
Extract rate
0.3%
External diameter
4000-6000bottle/hour
Clean Up Rate
Greater Than 90%
Total power
9.72Kw
Voltage
380V
Total weight
7t
External dimensions
External dimensions
Steeper
3.0*2.2*1.5* (m)
Outside brush machine
1.3*0.6*1.9 (m)
Inside brush machine
2.0*1.3*1.5 (m)
Bottle conveyer
8m (length)

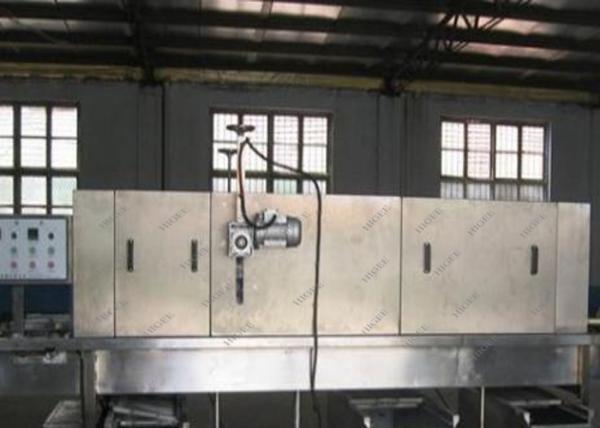

Glass Bottle Washing Machine Photos

330ml 500ml Linear Bottle Washing Machine , Commercial Industrial Bottle Washer

our workshop

330ml 500ml Linear Bottle Washing Machine , Commercial Industrial Bottle Washer

330ml 500ml Linear Bottle Washing Machine , Commercial Industrial Bottle Washer

Customer's service:
1. HIGEE company can provideo turn-key project for you, only you have any idea to start beverage factory plant.
2. HIGEE company have professional design team, our engineer can draw bottle samples and flow chart of workshop for you.
3. HIGEE company give you the best quotation for all kinds of beverage production, only you can tell me which kind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc
After service:
1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
a. Machine layout
b. Electricity diagram
c. Machine certificate
d. General manual book/maintenance book
3. After one year guarantee, the seller provides payable spare parts and technician’s VISITING maintenance service.
