Electric Driven Hot Fill Bottling Equipment
Electric Driven Hot Fill Bottling Equipment
Electric Driven Hot Fill Bottling Equipment
Electric Driven Hot Fill Bottling Equipment
Specifications
Brand Name :
higee
Model Number :
RCGF60-60-15
Certification :
CE
Place of Origin :
Shanghai in China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
30sets/mouth
Delivery Time :
30days~45days
Packaging Details :
wooden case
rinsing heads :
60
capacity :
28000bph
power(kw) :
12.58
size(LXWXH) :
4500*3500*2400
weight(kg) :
9000
filling heads :
60
capping heads :
15
Warranty :
12mouths
Description

RCGF60-60-15Filling Machine Type and Electric Driven Type juice processing plant With Good After-sale Service

Description:

1The RCGF hot drink filling machine For green tea
2. It is Suit for 300ml-2000ml bottle
3. It is washing filling capping 3 in 1 machine full automatic
4. Our company have passed CE, ISO certification

Feature:

1. Transducer is uesd in bottle entering chains to adjust speed to make the operation of moving bottle steadily and reliably.

2. The filling machine for juice is convenient to operate with higher auromation because everypart of the tea filling machine is inspected to run with photo electicity.

3.The filling machine for juice can be produced according to your requiements,because we are professional beverage processing manufacture.

Specification:

Model: RCGF18-18-6 RCXGF32-32-10 RCGF60-60-15 RCGF80-80-18
Production Capacity(600 ml)(b/h)

5000-7000

12000-15000

25000-28000

33000-36000
Filling Precision 1%(liquid Level)
Polyester Bottle Standard(mm) Bottlediameterφ50-φ110 Height:150-310
Suitable Cap Shape Plastic Screw Cap
Water Pressure of Washing bottle(MPa) 0.2-0.25
Total Power(kW) 7.68 10.28 12.58 15.28
Total wEIGHT(Kg) 3000 5000 9000 11000

Details:

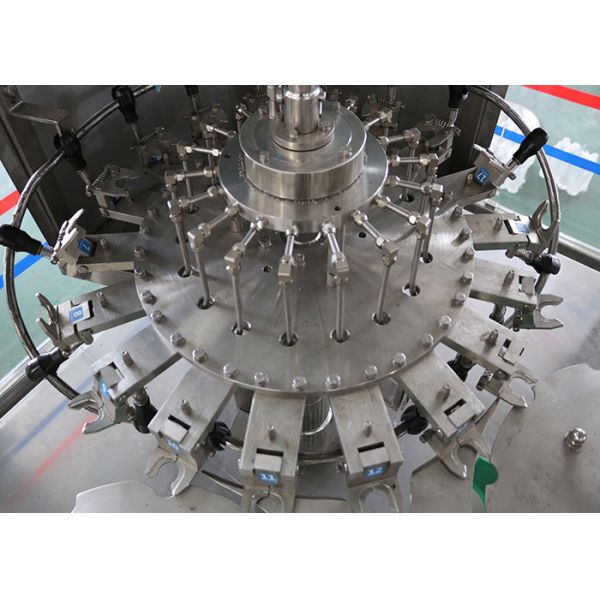

Capping part

The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.
Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiaotong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.

Electric Driven Hot Fill Bottling Equipment Electric Driven Hot Fill Bottling Equipment
