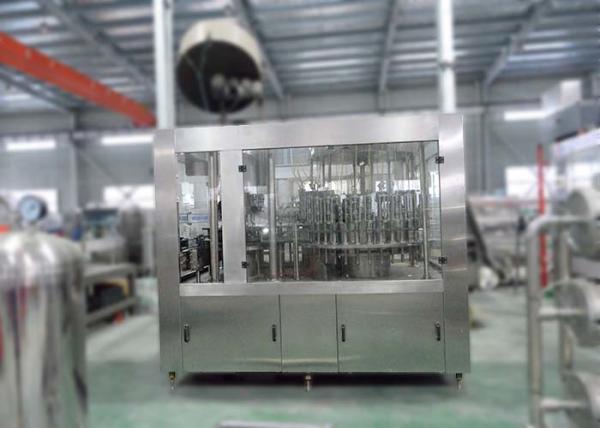

Electric 110 V Can Filling Equipment High Speed For Beverage Carbonated Drink
Electric 110 V Can Filling Equipment High Speed For Beverage Carbonated Drink
Specifications
Brand Name :
Higee
Model Number :
GF40-12
Certification :
CE ISO
Place of Origin :
Shanghai -China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 sets
Delivery Time :
30 working days
Packaging Details :
Wooden case
Name :
automatic aluminum cans filling machine
Filling head :
40
Sealing head :
12
Max. capacit :
20000 can/hour
Air pressure :
≥0.04MPa≤0.25Mpa
Filling temperature :
≤4℃
Suitable bottle type :
Φ52-Φ115 H=192-320
Filling method :
Isobaric filling
Description

Electric 110 V can filling machine for beverage carbonated and jar filling equipment

with plastic bottle filling machine


Features

(1) This machine is the equipment which is developed by RADAR exclusively on the basis of digesting and absorbing domestic and foreign ( carbonated) can filling and sealing machines (sealing machines).
(2) Using isobaric filling principle,after empty cans enter the lift tray through steel wheel,filling valves will be aligned with empty cans,and then cans are raised and sealed.
(3) At the same time,automatically open valve outlet of filling valves when filling liquid surface reaches vale return air outlet,stopping filling.
(4) Filled cans are delivered to sealing machine heads by hook chains,caps are delivered to mouth of cans by cap loader and squeeze head,when the lift tray rises,squeeze head impacts mouth of cans,sealing wheal has pre-sealing and second sealing.Cans are sealed and then launched ,entering conveyor.
(5) Main electrical components use SIEMENS PLC, DELTA inverter and OMRON proximity switches.

Main Accessories

Name Supplier
PLC SIEMENS,MITSUBISHI
Touch Screen SIEMENS,MITSUBISHI, PROFACE
Transducer DANFOSS
Air Switch,Circuit Breaker,Contacts SCHNEIDER
Photoelectric Switch SHIKE
Proximity Switch SHIKE
Intermediate Relay WEIDMULLER/SCHNEIDER
Temperature Control,Pressure Instrument OMRON

Filling and capping machine:

Electric 110 V Can Filling Equipment High Speed For Beverage Carbonated Drink
