5 Litre Automatic Oil Packing Machine 800-2200BPH Filling Speed With Piston
5 Litre Automatic Oil Packing Machine 800-2200BPH Filling Speed With Piston
Specifications
Brand Name :
Higee
Model Number :
HG-ZLDG-8
Certification :
CE
Place of Origin :
SHANGHAI CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
30 sets per day
Delivery Time :
20-30 days
Packaging Details :
Wooden case
Name :
oil filling machine
Filling speed :
800-2200 bph
filling heads :
2-8 piece
Gas consuption :
0.15
Pressure :
0.5-0.8
Capacity :
100-5000ml
Description

Automatic 5 litre oil filling machine with piston and weighing bottle filling

Description:

The production line make of liquid oil filling machine, sealing machine and conveyor system, it mainly use to fill oil to plastic bottles (barrels) glass bottles and seal the bottle, such as edible oil, lubricants, various washing liquid, oil and chemical products. It also can be used to fill and seal beverage, such as mineral water, pure water, as well as various non-gas beverages. It has advanced structure, smooth, easy to operate and maintain suitable for the different bottles, which is consistent with the hygiene requirements, it is a good choice for small plant.ZLDG Automatic liquid oil filling machine

Feature:

All the parts touch with raw materials adopt high quality stainless steel;
Figure show the filling capacity
PLC microcomputer program control;
Dual-speed filling control technology;
Computer control quantity, linear filling;
Anti-dropper filling valve

Specification:

Model ZLDG-2 ZLDG-4 ZLDG-6 ZLDG-8
Throughput(b/h) 200-600 400-800 600-1200 800-2200
Filling heads 2 4 6 8
Capacity(L) 50-5000ml 50-5000ml 50-5000ml 50-5000ml
Filling precision(%) ±≤0.5 ±≤0.55 ±≤0.6 ±≤0.65
Power(kw) 1.1 1.6 2.5 3.1
Dimension(mm) 800x650x1700 1200x650x1700 1600x650x1700 2100x650x1700
Weight(kg) 300 400 600 800

Details:

5 Litre Automatic Oil Packing Machine 800-2200BPH Filling Speed With Piston

Conveyor will stand on the ground supported

by supporting legs, there're deceleration

conveyor, buffer conveyor, acceleration

conveyor and differential speed conveyor,

the production linecan operate automatically

through electrical control system.

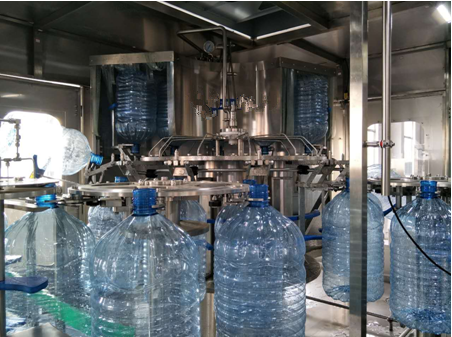

Bottles are fed from flat conveyor into the filling machine mono-bloc via star-wheel. Bottle clamp installed on the rotary wheel of the rinser will grip bottle mouth and make a 180º turn along a guide track to face the bottle mouth downward. In designated section of the rinser (depends on the water division disk--- rinsing water is pumped to the water division disk by the pump, and divided by the 24 pieces tubes into the rinsing gripper) 5 Litre Automatic Oil Packing Machine 800-2200BPH Filling Speed With Piston
5 Litre Automatic Oil Packing Machine 800-2200BPH Filling Speed With Piston Anti-rotation blades on capping heads will seize the neck of bottle to prevent it from rotation and hold it in a upright position. The twist-on capping head will make revolving and rotating movement along with the machine to finish the complete capping process of cap picking, placing, twisting and disengaging under the control of a cam. Capping head adopts magnetic constant torque device, at the time of taking caps by cap division disk, cap holding sleeve will hold the cap and make it upright, , that set against the lid, centralizer lid, in order to ensure that the caps at the correct position of capping mould, and guarantee the capping quality .
