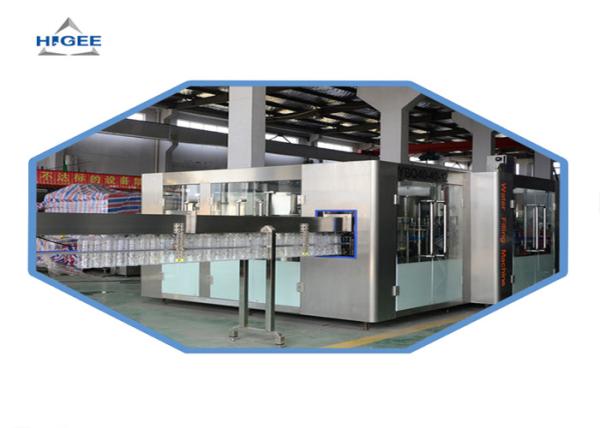

PLC Controled Automatic Water Filling Machine For Small Complete Soda Beverage
PLC Controled Automatic Water Filling Machine For Small Complete Soda Beverage
PLC Controled Automatic Water Filling Machine For Small Complete Soda Beverage
PLC Controled Automatic Water Filling Machine For Small Complete Soda Beverage
PLC Controled Automatic Water Filling Machine For Small Complete Soda Beverage
PLC Controled Automatic Water Filling Machine For Small Complete Soda Beverage
PLC Controled Automatic Water Filling Machine For Small Complete Soda Beverage
PLC Controled Automatic Water Filling Machine For Small Complete Soda Beverage
PLC Controled Automatic Water Filling Machine For Small Complete Soda Beverage
PLC Controled Automatic Water Filling Machine For Small Complete Soda Beverage
Specifications
Brand Name :
HIGEE
Model Number :
CGF 40-40-12
Certification :
ISO 9001 ,CE ,
Place of Origin :
China
MOQ :
1 set
Price :
negociated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets
Delivery Time :
30
Packaging Details :
Wood case
Name :
Water filling machine
Model :
CGF 40-40-12
Washing head :
40
Filling head :
40
Capping head :
21
Production capacity :
18000 BPH
Bottle type :
500 ml 1000 ml 2000 ml etc
Description

Mineral water bottle bottling machine for complete soda beverage filler machine with cow carbonator line price

Application :

CGF series drinking water filling machine integrates bottle washing, water filling and capping into one monobloc, and the three processes are carried out full automatically. It is used in the filling of mineral water, pure water, and other non-carbonated beverage. For electricial elements, we use Mitsubishi, Omron, Schneider, Airtac, etc. which are famouse brand and with assured quality. Each machine element that contacts with the liquid is made of high quality stainless steel. The quality reaches the international advanced level. It is the best choice for new and old beverage production line investors

Feature :

1.with bottle neck clipping transmission structure, the bottle conveyance is stable; very convenient and swift to use different bottles for filling in the same machine by adjusting the height of conveyor and several exchanging parts.

2.with Gravityfilling theory, filling speed is quick and precision is high; the filling level is adjustable.

3.With spring type washing clipper, empty bottles are turned 180°along the guiding roll for inside rinsing; the washing nozzle adopts plum blossom shape multiple holes to rinse the bottle bottom, washing efficiency is high.

4.Capping machine adopts France technology, the capping is by magnet torque; the cap catching adopts twice catching to ensure the veracity.The capping force is adjustable, constant torque capping will not damage caps and the cap is good sealed and reliable.

5.The whole machine is operated by touch screen, controled by PLC and frequency convertor etc., with functions of no bottle no cap feeding, waiting when lack of bottles, stopping if bottle is blocked or no cap in cap guiding pipe.

Technical parameters :

Model Washing head no. Filling head no. Capping head no. Production capacity(500ml) Overall size(mm) Weight(kg)

Power of main motor

(kw)
8-8-3 8 8 3 1500-2000 1700*1500*2100 2000 1.8
14-12-4 14 12 5 3000-4000 2000*1760*2350 2500 2.0
16-12-6 16 12 6 5000-6000 2100*1800*2400 2800 2.2
18-18-6 18 18 6 7000-8000 2300*1900*2400 3000 3.5
24-24-8 24 24 8 8000-10000 2900*2100*2400 3500 4.5
32-32-10 32 32 10 12500-15000 3100*2100*2650 4300 5.5
40-40-10 40 40 10 15000-18000 4350*2880*3200 6000 5.5
50-50-12 50 50 12 20000-23000 4850*3800*3200 7500 7.5
