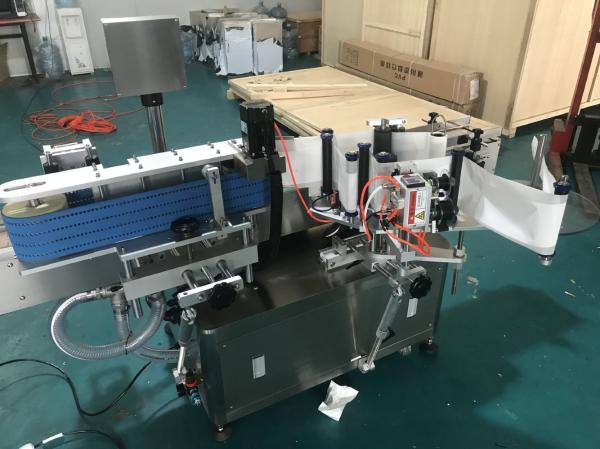

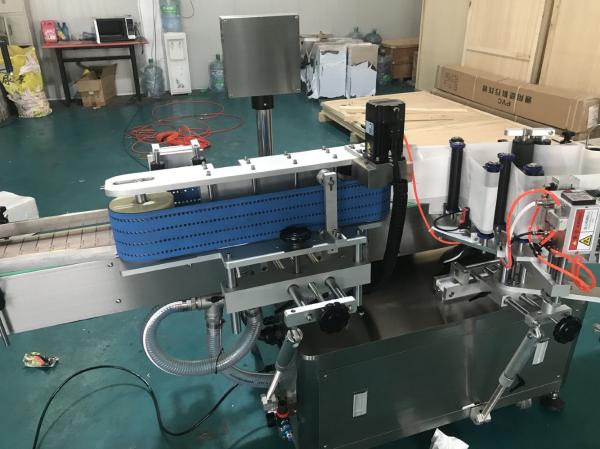

Automatic round cup labeling machine with handle

1.product name :plastic cup

2.type :HAY200

3.Cup size:D 30-120 mm standard (can be customized)

4.Maximum label size : 100*400mm,83,8mm *273.5mm

5.type of label:sticker label

6.labeling speed:30-35 pcs per minute

7.power supply :1 phase 220v 50hz (can be customized)

8.sample:pls see the picture below

Application:

The labeling Machine is suitable for all kinds of cylindrical objects, such as plastic cups, glass bottles, Plastic bottles. (The machine also can be customized for cone objects)

Client can choose to add screw bottle separator or coding machine.

It can work separately or connecting with conveyor to work with other equipment.

Features:

1. The machine is made in SUS304 stainless steel and high grade aluminum alloy.

2. Imported step motor or servo motor is used for the labeling head to assure labeling speed and accuracy.

3.The photo electricity and control system apply advanced component from Germany or Japan or Taiwan.

4.Use PLC man-machine interface control system, which is easy to understand.

5.Our machine can detective opaque label ,and add transparent label device then our machine can detective opaque label and transparent labels .

6.You have many kind of bottles sizes and label sizes , we can according to your bottles sizes and labels sizes to adjust our machine .

Technical Parameters:

1.Size of Machine: 1600(L)×550(W)×1600(H)mm

2. Output Speed: 80-100pcs/min(it depends on the size of object and label length)

3.Auto stack machine: according to your products size, we can customize.

4. Height of bottle: 30-280mm (can be customized)

5. Diameter of bottle:30-120mm (can be customized)

7.Height of Label:5-140mm (can be customized)

8. Length of Label:25-400mm(can be customized)

9. Accuracy of Labeling: ±0.8mm (excluding object and label error)

10. Label roller inside diameter: 76mm

11. Label roller outside diameter: 380mm

12. Power Supply: 220V 0.75KW 50/60HZ (if power supply different, a transformer is needed)

12. Air consumption of Printer: 5Kg/m2(if add coding machine)
